Name: MSI B760 GAMING PLUS WIFI ATX Motherboard - Softlink Computers
Brand: MSI
Price: 22500 BDT
Availability: InStock

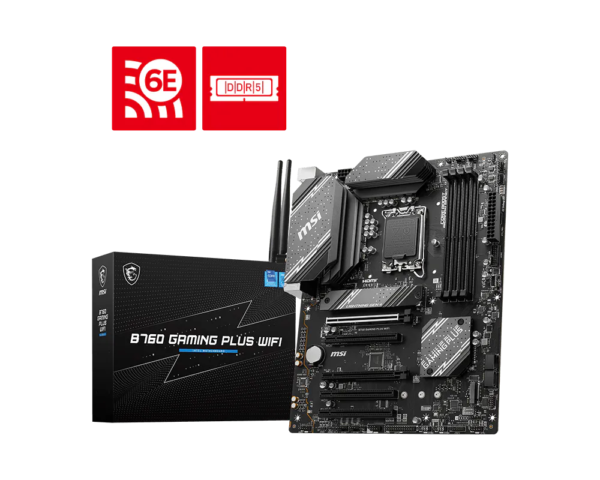

MSI B760 GAMING PLUS WIFI ATX Motherboard

Sale Price22,500৳

Regular Price24,400৳

StatusIn Stock

BrandMSI

Key Features

Model: B760 GAMING PLUS WIFI
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 6800+MHz (OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
Warranty: 03-Years

View More Info

22,500৳

Specification

Basic Information

Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset	INTEL B760
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI	PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type	DDR5
Slots	4
Supported Memory	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB

Graphics

1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5G LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI B760 GAMING PLUS WIFI ATX Motherboard

The MSI B760 GAMING PLUS WIFI ATX Motherboard is a performance-driven motherboard built for Intel’s LGA 1700 platform, offering a strong combination of gaming performance, modern connectivity, and long-term reliability. Based on the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors, making it an excellent choice for gamers, content creators, and power users building a high-performance desktop system.

This motherboard supports dual-channel DDR5 memory with four DIMM slots, allowing high-capacity configurations and speeds up to 6800+ MHz (OC depending on CPU and RAM). DDR5 technology delivers higher bandwidth and improved efficiency, ensuring smoother multitasking, faster load times, and better overall system responsiveness in demanding applications.

For expansion, the board features a PCIe 4.0 x16 slot with Steel Armor reinforcement, providing stable and reliable support for modern graphics cards. It also includes additional PCIe slots for expansion cards, enabling flexible upgrades for advanced system configurations.

Storage performance is robust, with multiple M.2 PCIe Gen4 x4 slots for ultra-fast NVMe SSDs, along with SATA ports for additional storage devices. This allows faster boot times, quicker data access, and improved performance for gaming and professional workloads.

Connectivity is a key strength of this motherboard, offering 2.5G LAN and built-in WiFi 6E with Bluetooth 5.3, ensuring ultra-fast, low-latency networking for gaming, streaming, and heavy online usage. This combination provides both stable wired performance and high-speed wireless convenience.

For display connectivity, the motherboard includes HDMI and DisplayPort outputs, supporting high-resolution displays up to 4K when used with processors that feature integrated graphics. This makes it suitable for multi-monitor setups and modern workstation environments.

MSI has designed this motherboard with durability and cooling efficiency in mind, featuring enhanced power delivery design, extended heatsinks, and optimized PCB layout to maintain stable performance under heavy loads. Additional features such as Core Boost, Memory Boost, EZ Debug LED, and Click BIOS 5 improve usability and system stability.

Overall, the MSI B760 GAMING PLUS WIFI ATX Motherboard is a well-balanced and future-ready solution for users looking to build a powerful Intel-based gaming or productivity system with strong connectivity, DDR5 performance, and reliable long-term operation.
