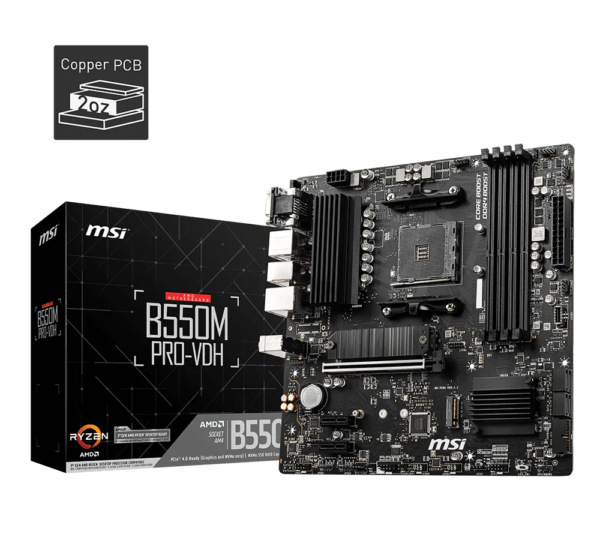

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Sale Price14,200৳

Regular Price15,840৳

StatusIn Stock

BrandMSI

Key Features

Model: B550M Pro-VDH
Supports AMD Ryzen 5000 & 3000 Series Processors
PCB with 2OZ Thickened Copper
Supports DDR4 Memory, up to 4400(OC) MHz
PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Warranty: 03-Years

View More Info

14,200৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC892 Codec

Expansion Slots

PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
M.2 & NVMe Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices

Memory

Type	DDR4 (Dual-channel memory architecture)
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB

Graphics

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory 16GB

Connector & Ports

HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
TPM	1 x TPM module connector

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI B550M PRO-VDH AMD AM4 DDR4 Micro-ATX Motherboard

The MSI B550M PRO-VDH AMD AM4 DDR4 Micro-ATX Motherboard is a reliable and value-oriented motherboard designed for AMD AM4 platform users who want modern features without a high cost. Built on the AMD B550 chipset, it supports AMD Ryzen 3000, 4000G, and 5000 Series processors, making it a strong choice for budget to mid-range gaming PCs, office setups, and upgrade builds. Its micro-ATX form factor allows compatibility with compact cases while still offering essential expansion and connectivity options.

This motherboard supports dual-channel DDR4 memory with speeds up to 4400 MHz (overclocked), ensuring stable and responsive performance for multitasking, gaming, and everyday workloads. MSI’s DDR4 Boost technology enhances signal stability, allowing the system to maintain reliable performance even at higher memory speeds.

For expansion and storage, the board includes PCIe 4.0 support for graphics cards and high-speed devices, along with a Lightning Gen4 M.2 slot equipped with M.2 Shield Frozr for improved thermal performance. It also provides additional SATA ports for flexible storage configurations, enabling faster boot times and improved data access.

The motherboard offers multiple display outputs including HDMI, DisplayPort, and VGA, ensuring compatibility with both modern and legacy monitors. This makes it suitable for users who rely on integrated graphics for office work, media consumption, or entry-level systems.

MSI has incorporated Core Boost and a digital power design to provide stable CPU power delivery, supporting multi-core processors efficiently. The 2oz thickened copper PCB improves heat dissipation and durability, ensuring long-term reliability even under sustained workloads.

Connectivity features include stable LAN networking, high-speed USB ports, and user-friendly BIOS tools. Additional features such as Flash BIOS Button allow users to update BIOS easily without installing a CPU or memory, which is especially useful for upgrades and troubleshooting.

Overall, the MSI B550M PRO-VDH AMD AM4 DDR4 Micro-ATX Motherboard offers a balanced combination of performance, essential modern features, and affordability. It is an excellent option for users building a dependable AM4-based system with PCIe 4.0 support and upgrade flexibility, making it suitable for gaming, productivity, and general computing needs.
