Name: MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard - Softlink Computers
Brand: MSI
Price: 10500 BDT
Availability: InStock

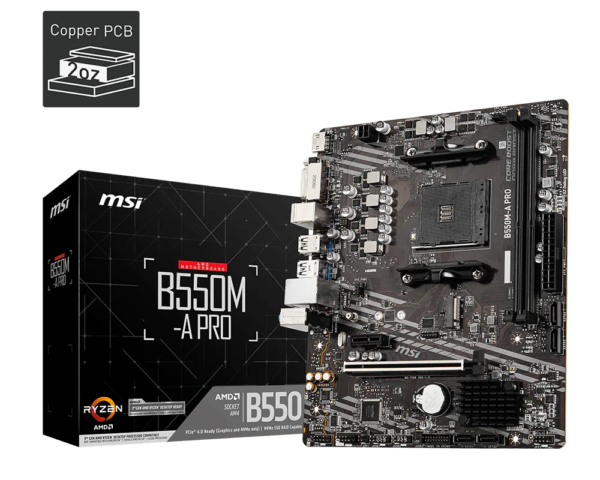

MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard

Sale Price10,500৳

Regular Price11,700৳

StatusIn Stock

BrandMSI

Key Features

Model: B550M-A PRO
Supports AMD Ryzen 5000 & 3000 Series desktop processors
Supports DDR4 4600(OC)MHz
PCIe 4.0, Lightning Gen4 x4 M.2
2oz Thickened Copper PCB
Warranty: 03-Years

View More Info

10,500৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Form Factor	mATX 200mmx236mm
Audio	Realtek ALC892/ALC897 Codec

Expansion Slots

PCI	PCI-E X16 x 1 PCI-E (Gen4 / Gen3)
M.2 & NVMe Socket	1 x M.2 Socket

Memory

Type	DDR4
Slots	1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor.
Supported Memory	2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	64GB

Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Max Shared Memory: 16 GB

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DVI
USB (s)	AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H Gigabit LAN
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM	1 x TPM module connector

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard

The MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard is a dependable and cost-effective motherboard built for users who want solid performance on the AMD AM4 platform without unnecessary extras. Powered by the AMD B550 chipset, it supports AMD Ryzen 3000, 4000G, and 5000 Series processors, making it an excellent choice for budget gaming PCs, office systems, and upgrade builds. It offers a practical balance between performance, stability, and affordability, which makes it one of the most popular entry-to-mid-range B550 motherboards in the market.

The motherboard supports dual-channel DDR4 memory with speeds up to 4600 MHz (overclocked) and a maximum capacity of 64GB. This ensures smooth multitasking, responsive system performance, and efficient handling of everyday computing tasks as well as moderate gaming and content workloads. MSI’s A-XMP support allows users to easily enable higher memory speeds with stable performance.

For expansion and storage, the board includes a PCIe 4.0 x16 slot for modern graphics cards along with an additional PCIe x1 slot for expansion devices. It also features a Lightning Gen4 M.2 slot and four SATA 6Gb/s ports, allowing users to build fast and flexible storage configurations using NVMe SSDs and traditional drives. This results in faster boot times, improved load speeds, and better overall system responsiveness.

In terms of display connectivity, the motherboard offers HDMI and DVI-D outputs, supporting high-resolution displays when used with processors that have integrated graphics. This makes it suitable for office environments, home setups, and entry-level multimedia systems without requiring a dedicated GPU.

The MSI B550M-A PRO is designed with durability in mind, featuring a 2oz thickened copper PCB that improves heat dissipation and long-term reliability. MSI Core Boost technology enhances CPU power delivery, ensuring stable performance even under sustained workloads. While it focuses on essential features, it still delivers PCIe 4.0 support, which provides a noticeable advantage over older chipsets in terms of speed and future upgrade potential.

Overall, the MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard is a practical and efficient solution for users building a budget-friendly yet capable AM4 system. It offers the essential modern features required for current-generation computing while maintaining stability, compatibility, and value for money.

Buy MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards suitable for gaming, professional, and general desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
