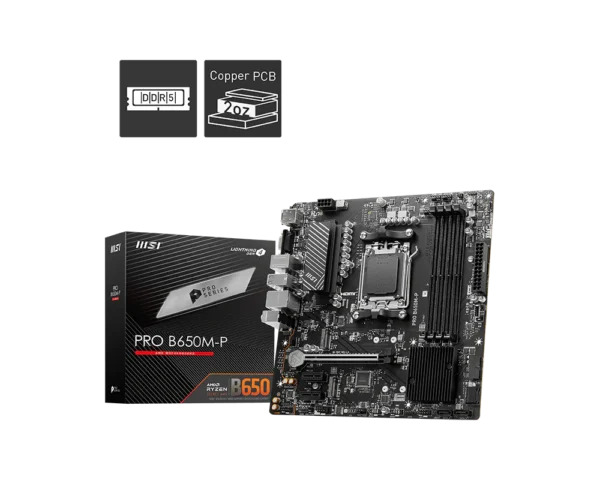

MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard
Key Features
- Model: PRO B650M-P
- Supported CPU: Ryzen 9000/8000/7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port, 1x VGA
- Features: Realtek 8125BG 2.5G LAN
- Warranty: 03-Year
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
Basic Information
| Supported CPU | Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| BIOS | BIOS 5 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition |
Expansion Slots
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 & NVMe Socket | 2x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280). |
Memory
| Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Maximum Memory | 192GB |
Graphics
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 1920x1200 60Hz* |
Connector & Ports
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| VGA (s) | 1x VGA |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN Port (s) | Realtek 8125BG 2.5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) Back Audio connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM | 1x TPM pin header(Support TPM 2.0) |
Others
| Special Features | 4x EZ Debug LED |
Warranty Information
| Manufacturing Warranty | 03-year Warranty |
Description
MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard
The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard is a budget-friendly yet capable motherboard built on the AMD B650 chipset, designed to support the latest AMD Ryzen 7000, 8000, and even newer generation processors on the AM5 platform. It delivers a balanced combination of performance, efficiency, and essential features, making it suitable for gaming builds, productivity systems, and everyday computing setups. With its micro-ATX form factor, it fits easily into compact PC cases while still offering sufficient expansion and connectivity options for modern users.
This motherboard supports up to four DDR5 memory modules with speeds reaching 7200+ MHz through overclocking, providing significantly improved bandwidth and responsiveness compared to previous DDR4 platforms. This ensures smooth multitasking, faster data processing, and better overall system performance, especially in demanding applications such as content creation, rendering, and modern gaming. The dual-channel memory architecture further enhances efficiency and stability under load.
For storage and expansion, the MSI PRO B650M-P includes PCIe 4.0 support along with M.2 slots and SATA ports, allowing users to build high-speed storage configurations using NVMe SSDs and traditional drives. It also features multiple PCIe slots for graphics cards and additional components, ensuring flexibility for future upgrades and customization.
In terms of display and connectivity, the motherboard offers HDMI, DisplayPort, and VGA outputs, providing compatibility with both modern and legacy monitors. This makes it ideal for users who require multi-display setups for productivity or entertainment. Networking is powered by a Realtek 2.5G LAN solution, delivering fast and stable internet connectivity, which is essential for online gaming, streaming, and large data transfers.
MSI has also integrated several reliability and performance-enhancing technologies into this board, including Core Boost for stable CPU power delivery, Memory Boost for improved signal integrity, and a high-quality PCB design for durability. Advanced cooling solutions, including VRM heatsinks and smart fan controls, help maintain optimal temperatures and system stability during intensive workloads.
Overall, the MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard is an efficient and cost-effective solution for users looking to build a modern DDR5-based system on the AM5 platform. It offers the essential features required for current-generation computing while maintaining reliability and upgrade flexibility, making it a practical choice for both entry-level and mid-range PC builds.
Buy MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard from Softlink Computers
In Bangladesh, you can get the original MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards for all types of desktop PC builds, including gaming, professional, and general-purpose systems. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.
Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard comes with an official 3 years warranty, providing long-term reliability and peace of mind for your investment.
What is the price of MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard in Bangladesh?
The latest price of MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard in Bangladesh is 14,500৳ ৳. You can buy the MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard at best price from our website or visit any of our showrooms.Similar Product
