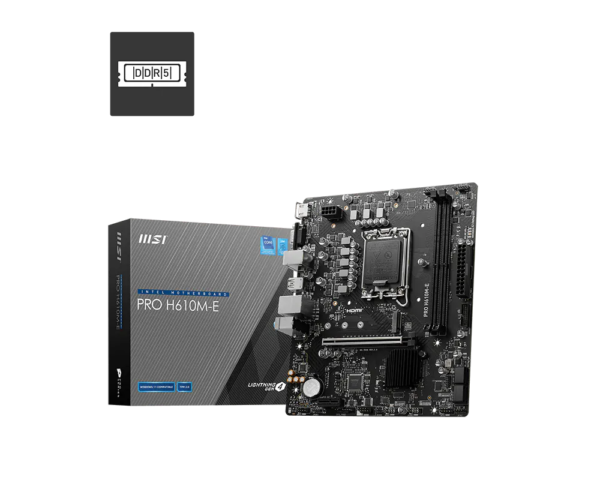

MSI PRO H610M-E DDR5 Micro-ATX Motherboard

Sale Price10,700৳

Regular Price11,700৳

StatusIn Stock

BrandMSI

Key Features

Model: PRO H610M-E
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 96GB
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Warranty: 03-Years

View More Info

10,700৳

Specification

Basic Information

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	Intel H610 Chipset
Form Factor	mATX 200mmx236.16mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
M.2 & NVMe Socket	1x M.2 slot

Memory

Type	DDR5
Slots	2x DDR5 memory slots
Supported Memory	Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	96GB

Graphics

Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Connector & Ports

HDMI	1x HDMI 1.4 with HDR port
Display Port (s)	No
VGA (s)	1x VGA
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Audio	1x Front panel audio connector
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

1x 4-pin RGB LED connector
4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO H610M-E DDR5 Micro-ATX Motherboard

The MSI PRO H610M-E DDR5 Micro-ATX Motherboard is a modern and cost-effective motherboard built for Intel’s LGA 1700 platform, offering support for the latest technologies while maintaining affordability. Powered by the Intel H610 chipset, it supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, making it a practical choice for users looking to build a next-generation entry-level or office PC with DDR5 memory support.

This motherboard supports dual-channel DDR5 memory with up to 64GB capacity and speeds up to 5600 MT/s (depending on CPU and configuration), delivering improved bandwidth and efficiency compared to DDR4. This results in better multitasking performance and faster system responsiveness for everyday computing, productivity tasks, and light workloads.

In terms of expansion, the board features a PCIe 4.0 x16 slot for modern graphics cards, along with a PCIe x1 slot for additional expansion devices. For storage, it includes a high-speed M.2 slot supporting PCIe 3.0 x4 NVMe SSDs as well as SATA ports for additional drives, allowing users to build a flexible and efficient storage setup with faster boot times and improved data access.

For display connectivity, the MSI PRO H610M-E DDR5 provides HDMI and VGA outputs, supporting high-resolution displays when paired with processors that include integrated graphics. This ensures compatibility with both modern and legacy monitors, making it suitable for office environments and home setups.

Networking is handled by a reliable Gigabit LAN controller, ensuring stable wired connectivity for daily internet use such as browsing, streaming, and office applications. The motherboard also includes USB 3.2 Gen1 ports for faster data transfer, along with USB 2.0 ports for connecting peripherals and accessories.

MSI’s PRO series design focuses on durability and stability, featuring Core Boost for improved CPU power delivery, Memory Boost for enhanced signal integrity, and a high-quality PCB layout for long-term reliability. EZ Debug LEDs are also included to simplify troubleshooting during system setup and maintenance.

Overall, the MSI PRO H610M-E DDR5 Micro-ATX Motherboard is an excellent choice for users who want to build a modern Intel system with DDR5 support at an affordable price. It provides essential features, stable performance, and future-ready memory technology, making it ideal for office PCs, home systems, and entry-level desktop builds.
