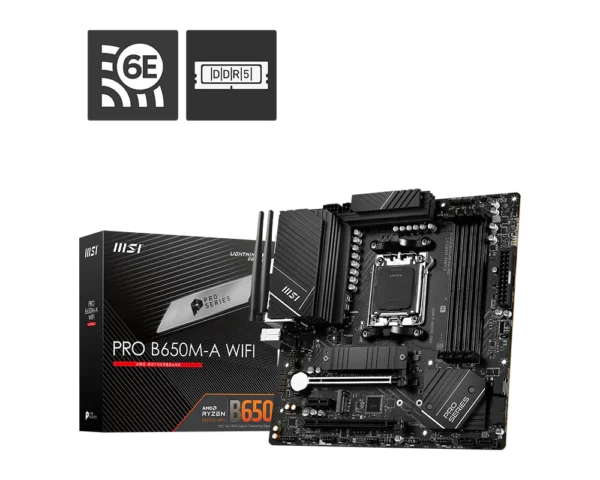

MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard
Key Features
- Model: PRO B650M-A WIFI
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 6400+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN with Wi-Fi 6E Solution
- Warranty: 03-Year
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
Basic Information
| Supported CPU | Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| BIOS | BIOS 5 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition |
Expansion Slots
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| M.2 & NVMe Socket | 2x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280). |
Memory
| Type | DDR5 |
| Slots | 4x DIMMs |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5800+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Maximum Memory | 128GB |
Graphics
| Graphics | Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz |
Connector & Ports
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| VGA (s) | No |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN Port (s) | Realtek 8125BG 2.5G LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| Supported Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) Back Audio connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| TPM | 1x TPM pin header(Support TPM 2.0) |
Others
| Special Features | 4x EZ Debug LED |
Warranty Information
| Manufacturing Warranty | 03-year Warranty |
Description
MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard
The MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard is a professional-grade motherboard designed to deliver stable performance, modern connectivity, and long-term reliability for AMD’s latest AM5 platform. Built on the AMD B650 chipset, it supports AMD Ryzen 7000, 8000, and newer generation processors, making it a strong foundation for gaming PCs, productivity systems, and workstation builds. Its micro-ATX form factor ensures compatibility with compact cases while still offering essential expansion and connectivity options.
This motherboard features support for up to four DDR5 memory modules with overclocking capabilities exceeding 6400+ MHz, enabling higher bandwidth and improved system responsiveness for multitasking, content creation, and high-performance applications. MSI’s Memory Boost and EXPO support ensure stable high-frequency memory performance with optimized signal integrity and reduced latency.
For power delivery, the MSI PRO B650M-A WIFI is equipped with an enhanced 8+2+1 phase power design along with Core Boost technology, ensuring precise and stable power distribution to modern multi-core processors. This allows the system to maintain consistent performance under heavy workloads and supports efficient CPU overclocking.
In terms of connectivity, the motherboard offers HDMI and DisplayPort outputs, making it suitable for multi-display setups and modern graphics requirements. It also features a 2.5G LAN port combined with Wi-Fi 6E, delivering fast, stable, and low-latency networking for online gaming, streaming, and large data transfers. This dual networking solution ensures flexibility for both wired and wireless connectivity needs.
Storage and expansion are handled through PCIe 4.0 support and multiple M.2 slots with M.2 Shield Frozr thermal protection, allowing high-speed NVMe SSD performance while preventing thermal throttling. Additional SATA ports provide flexibility for larger storage configurations, making it suitable for both high-speed and high-capacity storage setups.
Thermal performance is enhanced with an extended heatsink design, high-quality thermal pads, and dedicated cooling solutions for VRM and storage components. The 6-layer PCB with thickened copper improves durability, signal quality, and overall system stability, ensuring long-term reliable operation even under demanding conditions.
Overall, the MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard provides a balanced combination of performance, connectivity, and durability. It is an ideal choice for users looking to build a future-ready DDR5 system with strong networking capabilities and stable power delivery, suitable for gaming, professional workloads, and everyday computing.
Buy MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard from Softlink Computers
In Bangladesh, you can get the original MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards for gaming, professional, and general desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.
Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
