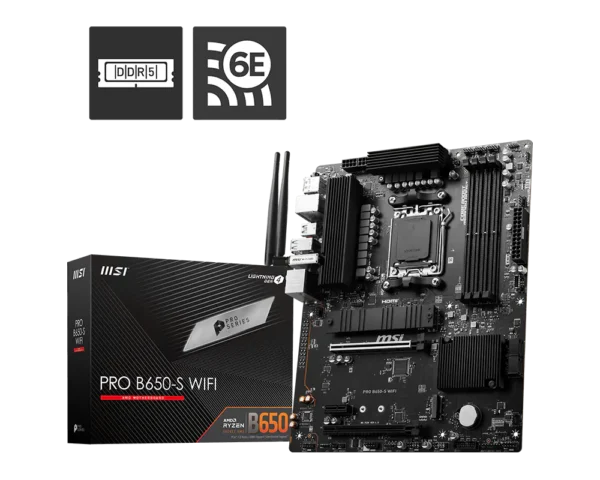

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
Key Features
- Model: PRO B650-S WIFI
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN with Wi-Fi 6E Solution
- Warranty: 03-Year
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
Basic Information
| Supported CPU | Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| BIOS | BIOS 5 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition |
Expansion Slots
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| M.2 & NVMe Socket | 2x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280). |
Memory
| Type | DDR5 |
| Slots | 4x DIMMs |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Maximum Memory | 192GB |
Graphics
| Graphics | Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz |
Connector & Ports
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| VGA (s) | No |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek 8125BG 2.5G LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) Back Audio connectors |
| Internal I/O Ports | INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) |
| TPM | 1x TPM pin header(Support TPM 2.0) |
Others
| Special Features | 4x EZ Debug LED |
Warranty Information
| Manufacturing Warranty | 03-year Warranty |
Description
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a full-size ATX motherboard designed to deliver reliable performance, strong power delivery, and modern connectivity for AMD’s AM5 platform. Built on the AMD B650 chipset, it supports AMD Ryzen 7000, 8000, and newer generation processors, making it a future-ready choice for gaming, productivity, and workstation builds. Its ATX form factor provides expanded connectivity, multiple expansion slots, and better thermal design, making it ideal for users who need flexibility and upgrade potential.
This motherboard supports up to four DDR5 memory modules with speeds reaching 7200+ MHz (overclocked), ensuring higher bandwidth and improved responsiveness compared to previous DDR4 platforms. With MSI Memory Boost and AMD EXPO support, users can achieve stable high-frequency memory performance, which is essential for multitasking, gaming, and heavy workloads.
For power delivery, the MSI PRO B650-S WIFI features a robust 12+2+1 phase VRM design with dual 8-pin CPU power connectors, ensuring stable and efficient power supply even for high-core-count processors. This design, combined with MSI Core Boost technology, allows the system to maintain consistent performance under heavy load and supports overclocking scenarios.
In terms of expansion and storage, the motherboard includes PCIe 4.0 support along with multiple M.2 Gen4 slots and SATA ports, enabling fast NVMe SSD performance and flexible storage configurations. This results in faster boot times, quicker data access, and improved overall system responsiveness for both gaming and professional applications.
Connectivity is one of the key strengths of this motherboard, featuring both 2.5G LAN and integrated Wi-Fi 6E along with Bluetooth support. This combination provides high-speed, low-latency networking for online gaming, streaming, and cloud-based workloads, ensuring stable and fast internet connectivity in both wired and wireless environments.
The board also includes HDMI and DisplayPort outputs for flexible display connectivity, allowing users to build multi-monitor setups easily. Its premium thermal design includes extended heatsinks, M.2 Shield Frozr, and advanced cooling controls, ensuring optimal temperature management during intensive workloads and long gaming sessions.
Built with a 6-layer PCB and 2oz thickened copper, the MSI PRO B650-S WIFI ensures improved durability, signal integrity, and long-term stability. MSI’s PRO series is specifically designed for users who prioritize efficiency, reliability, and consistent performance, making this motherboard a dependable choice for both professional and personal use.
Overall, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard offers a well-balanced combination of performance, connectivity, and expandability. It is an excellent choice for users looking to build a powerful and future-proof AM5 system with DDR5 support, advanced networking, and strong power delivery.
