Name: MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard - Softlink Computers
Brand: MSI
Price: 46000 BDT
Availability: InStock

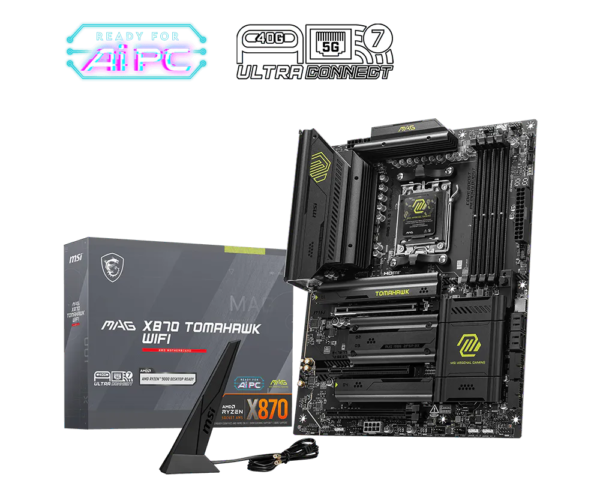

MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard

Sale Price46,000৳

Regular Price49,500৳

StatusIn Stock

BrandMSI

Key Features

Model: MAG X870 TOMAHAWK WIFI
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5 8400+(OC) MHz
Graphics Output: 1x HDMI, 2x Type-C Display Port
Features: Realtek 8126-CG 5G LAN, Wi-Fi 7
Warranty: 03-Years

View More Info

46,000৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5
Chipset	AMD X870
BIOS	BIOS 5
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-bit/384kHz playback on the front panel Supports S/PDIF output

Expansion Slots

PCI	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 & NVMe Socket	4x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280).

Memory

Type	DDR5
Slots	4x UDIMM
Supported Memory	Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory	256GB

Graphics

1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz
2x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	2x Type-C DisplayPort
VGA (s)	No
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)	Realtek 8126-CG 5G LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
RAID	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD) Back Audio connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED
1x EZ Digit Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard

The MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard is a next-generation flagship motherboard built on the latest AMD X870 chipset, designed for enthusiasts, gamers, and professionals who require cutting-edge performance, advanced connectivity, and long-term upgrade support. It supports AMD Ryzen 7000, 8000, and the latest Ryzen 9000 series processors, making it a future-ready platform for high-end PC builds.

This motherboard delivers exceptional performance with support for DDR5 memory exceeding 8400+ MT/s (overclocked), offering significantly higher bandwidth and reduced latency for demanding workloads. MSI’s Memory Boost and advanced BIOS features such as Latency Killer help optimize memory performance and stability, ensuring smooth multitasking, gaming, and content creation.

At its core, the board features a powerful 14+2+1 phase VRM design with 80A Smart Power Stages and dual 8-pin CPU power connectors. This ensures stable and efficient power delivery even under extreme workloads or overclocking conditions, making it ideal for high-core-count processors and heavy computing tasks.

One of the biggest highlights of the MSI MAG X870 TOMAHAWK WIFI is its next-generation connectivity. It includes full PCIe 5.0 support for both graphics and storage, along with Lightning Gen5 M.2 slots, enabling ultra-fast data transfer speeds and compatibility with future GPUs and SSDs. Additionally, the motherboard integrates USB4 (up to 40Gbps), providing faster data transfer and improved peripheral connectivity.

Networking capabilities are significantly upgraded with the inclusion of 5G LAN and Wi-Fi 7, delivering ultra-fast, low-latency connectivity for gaming, streaming, and professional workloads. MSI’s AI LAN Manager further enhances network performance by prioritizing latency-sensitive applications, ensuring a smoother online experience.

Thermal performance is handled by an advanced cooling system that includes extended heatsinks, high-quality thermal pads, and double-sided M.2 Shield Frozr, ensuring efficient heat dissipation and stable performance during long gaming sessions or heavy workloads. The motherboard also uses an 8-layer PCB with 2oz thickened copper, improving durability, signal integrity, and long-term reliability.

Additional features such as Audio Boost 5 with a high-performance audio processor, Mystic Light RGB support, EZ DIY installation features, and AI-based optimization tools further enhance usability and overall system experience. These features make the motherboard not only powerful but also user-friendly for both beginners and advanced PC builders.

Overall, the MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard stands out as a premium, future-proof motherboard offering top-tier performance, next-generation connectivity, and advanced cooling. It is an excellent choice for building a high-end DDR5-based AM5 system capable of handling gaming, AI workloads, and professional applications with ease.

Buy MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards for gaming, professional, and high-performance desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
