Name: MSI B650M PROJECT ZERO AM5 m-ATX Motherboard - Softlink Computers
Brand: MSI
Price: 24500 BDT
Availability: InStock

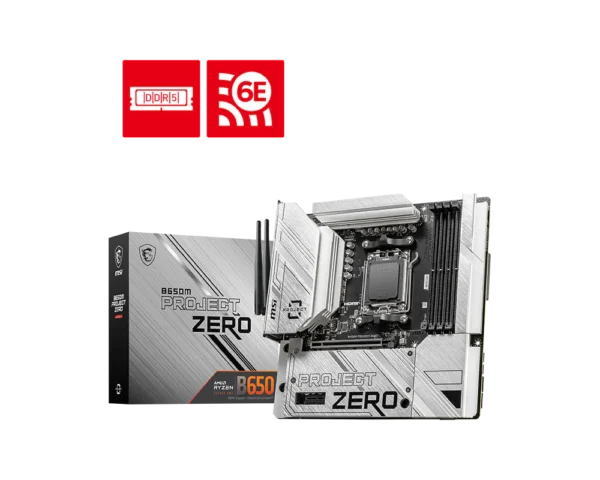

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

Sale Price24,500৳

Regular Price27,000৳

StatusIn Stock

BrandMSI

Key Features

Model: B650M PROJECT ZERO
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 7600+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Warranty: 03-Year

View More Info

24,500৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
BIOS	BIOS 5
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI	1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 & NVMe Socket	2x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280).

Memory

Type	DDR5
Slots	4x DIMMs
Supported Memory	7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory	128GB

Graphics

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DisplayPort
VGA (s)	No
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 8125BG 2.5G LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio	HD Audio Connectors
Internal I/O Ports	INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM	1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

The MSI B650M PROJECT ZERO AM5 m-ATX Motherboard is a uniquely engineered motherboard that redefines PC building aesthetics and cable management. Built on the AMD B650 chipset, it supports AMD Ryzen 7000, 8000, and newer generation processors on the AM5 platform, delivering strong performance for gaming, content creation, and professional workloads. Its micro-ATX form factor ensures a compact build while maintaining essential expansion and connectivity features.

The standout feature of this motherboard is its innovative back-connect design, where power connectors, fan headers, and front panel pins are relocated to the rear side of the board. This allows for a completely clean and cable-free front view, significantly improving airflow and overall system aesthetics, making it ideal for showcase builds and modern PC setups.

In terms of performance, the motherboard supports DDR5 memory with speeds up to 7600+ MHz (overclocked), offering higher bandwidth and faster responsiveness compared to previous memory generations. MSI Memory Boost technology and EXPO support ensure stable high-speed performance, making it suitable for multitasking, gaming, and demanding applications.

Power delivery is handled by a robust 10+2+1 phase VRM design with dual 8-pin CPU power connectors, ensuring stable and efficient power distribution even under heavy workloads. MSI Core Boost technology enhances CPU performance by delivering precise and consistent power, supporting high-core-count Ryzen processors and overclocking scenarios.

For storage and expansion, the motherboard features PCIe 4.0 support along with multiple M.2 slots and SATA ports, enabling high-speed NVMe SSD performance and flexible storage configurations. This results in faster boot times, quicker data access, and improved overall system responsiveness.

Networking is another strong aspect, with integrated 2.5G LAN and Wi-Fi 6E along with Bluetooth support, providing fast, stable, and low-latency connectivity for online gaming, streaming, and large data transfers. The board also includes high-speed USB 3.2 Gen 2x2 (20Gbps) connectivity for modern peripherals and devices.

Thermal performance is optimized through an extended heatsink design, M.2 Shield Frozr, and high-quality thermal pads, ensuring efficient heat dissipation and stable operation during intensive workloads. The 6-layer PCB with 2oz thickened copper improves durability, signal integrity, and long-term reliability.

Overall, the MSI B650M PROJECT ZERO AM5 m-ATX Motherboard is an excellent choice for users who want both performance and a clean, modern build aesthetic. Its innovative design, strong power delivery, advanced connectivity, and DDR5 support make it a future-ready platform for gaming and professional PC builds.

Buy MSI B650M PROJECT ZERO AM5 m-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI B650M PROJECT ZERO AM5 m-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards for gaming, professional, and general desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI B650M PROJECT ZERO AM5 m-ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
