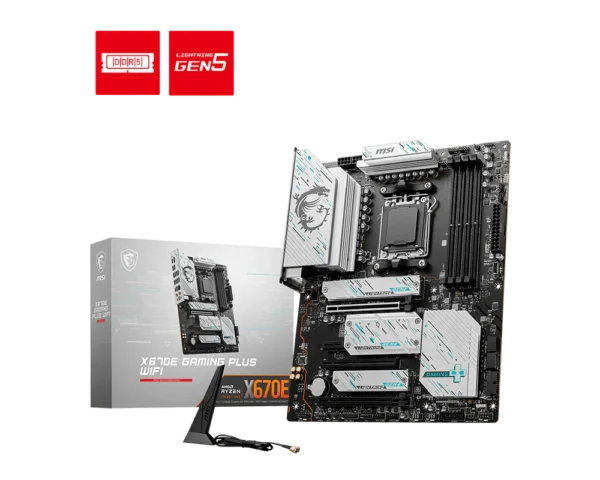

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard

Sale Price34,000৳

Regular Price35,000৳

StatusIn Stock

BrandMSI

Key Features

Model: X670E GAMING PLUS WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 7800+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Warranty: 03-Years

View More Info

34,000৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5
Chipset	AMD X670
BIOS	BIOS 5
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI

3x PCI-E x16 slot
Supports x16/x1/x4
• Supports x16/x1/x4 (For Ryzen™ 7000 Series processors)
• Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4/x1/x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

M.2 & NVMe Socket

4x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280).

Memory

Type	DDR5
Slots	4x DIMMs
Supported Memory	7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	192GB

Graphics

Support HDMI 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DisplayPort
VGA (s)	No
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 8125BG 2.5G LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD) Back Audio connectors
Internal I/O Ports	INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) BACK PANEL PORTS DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 (Type-A) 2.5G LAN Flash BIOS Button HDMI USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors
TPM	1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard

The MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard is a high-end ATX motherboard designed for enthusiasts, gamers, and professional users who demand maximum performance and next-generation features from the AMD AM5 platform. Built on the premium X670E chipset, it supports AMD Ryzen 7000, 8000, and newer generation processors, offering advanced capabilities including PCIe 5.0 support for both graphics and storage, making it a future-proof solution for cutting-edge PC builds.

This motherboard supports up to four DDR5 memory modules with overclocking speeds exceeding 7800+ MHz, delivering exceptional bandwidth and system responsiveness for intensive workloads such as gaming, 3D rendering, and professional content creation. MSI’s Memory Boost and AMD EXPO support ensure stable high-frequency memory operation, allowing users to maximize performance with ease.

The MSI X670E GAMING PLUS WIFI features a robust power delivery system, typically built with a high-phase VRM design and dual 8-pin CPU power connectors, ensuring stable and efficient power distribution even under heavy loads or overclocking scenarios. This enables consistent performance for high-core-count Ryzen processors and demanding applications.

One of the key advantages of the X670E platform is full PCIe 5.0 support, providing next-generation bandwidth for GPUs and ultra-fast NVMe SSDs. This ensures faster data transfer rates, reduced load times, and improved overall system responsiveness, giving users a significant performance advantage in both gaming and professional workflows.

For connectivity, the motherboard offers a comprehensive solution including 2.5G LAN and integrated Wi-Fi 6E with Bluetooth support, ensuring fast, stable, and low-latency networking. This is ideal for online gaming, streaming, cloud-based tasks, and large data transfers. Additionally, it includes high-speed USB connectivity, such as USB 3.2 Gen 2x2, enabling faster data transfer for modern peripherals.

Thermal performance is enhanced through an extended heatsink design, high-quality thermal pads, and M.2 Shield Frozr, which helps maintain optimal temperatures for VRM and SSDs during intensive usage. The premium PCB design with thickened copper layers improves durability, signal integrity, and long-term stability.

Display connectivity options such as HDMI and DisplayPort allow support for high-resolution multi-monitor setups, making it suitable for both productivity and entertainment environments. MSI’s Audio Boost technology ensures high-quality sound output for an immersive user experience.

Overall, the MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard delivers a powerful combination of next-generation technology, strong power delivery, and advanced connectivity. It is an ideal choice for users looking to build a high-end, future-ready DDR5 system with PCIe 5.0 support and premium features on the AM5 platform.
