Name: MSI PRO H610M-E DDR4 mATX Motherboard - Softlink Computers
Brand: MSI
Price: 9700 BDT
Availability: InStock

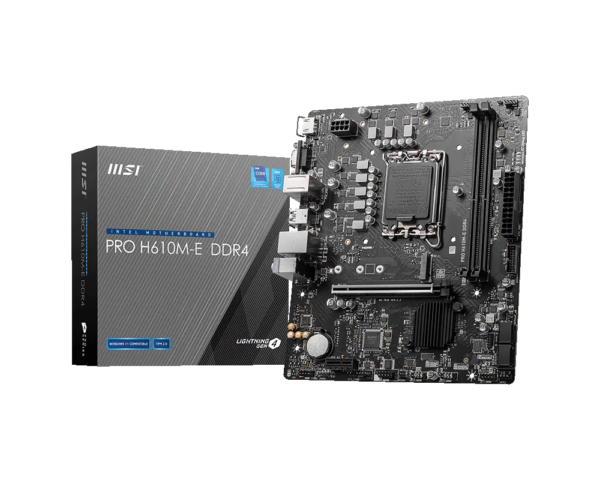

MSI PRO H610M-E DDR4 mATX Motherboard

Sale Price9,700৳

Regular Price10,700৳

StatusIn Stock

BrandMSI

Key Features

Model: PRO H610M-E DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Warranty: 03-Years

View More Info

9,700৳

Specification

Basic Information

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	Intel H610 Chipset
Form Factor	mATX 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Audio	Realtek ALC897 Codec

Expansion Slots

PCI	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1
M.2 & NVMe Socket	1x M.2 slot

Memory

Type	DDR4 Supports Dual-Channel mode
Slots	2x DDR4 memory slots
Supported Memory	1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	64GB

Graphics

supporting a maximum resolution of 4K 30Hz
supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Connector & Ports

HDMI	1x HDMI 1.4 with HDR port
VGA (s)	1x VGA
USB (s)	1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage	1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin +12V power connector 1x 4-pin CPU fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper
TPM	1x TPM module connector

Others

Special Features

1x 4-pin RGB LED connector
4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO H610M-E DDR4 mATX Motherboard

The MSI PRO H610M-E DDR4 mATX Motherboard is a compact and cost-effective solution designed for Intel’s LGA 1700 platform, offering reliable performance and essential features for entry-level and office PC builds. Based on the Intel H610 chipset, it supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, making it a practical choice for modern budget systems with long-term upgrade flexibility.

This motherboard supports dual-channel DDR4 memory with up to 64GB capacity and speeds up to 3200 MHz, ensuring stable and responsive performance for daily computing, multitasking, and office workloads. MSI’s Memory Boost technology enhances signal integrity, improving compatibility and overall system stability.

For expansion and storage, the board features a PCIe 4.0 x16 slot with Steel Armor protection for modern graphics cards, along with an additional PCIe x1 slot for expansion devices. It also includes a Turbo M.2 Gen3 x4 slot and SATA ports, enabling fast NVMe SSD performance and flexible storage configurations for improved boot times and faster data access.

In terms of display connectivity, the motherboard provides HDMI and VGA outputs, supporting high-resolution displays when paired with processors that include integrated graphics. This makes it suitable for both modern and legacy monitor setups, particularly in office and home environments.

Networking is handled by a reliable Gigabit LAN controller, ensuring stable wired connectivity for browsing, streaming, and productivity tasks. The board also includes USB 3.2 Gen1 ports for faster data transfer, along with standard USB ports for peripheral connectivity.

MSI has incorporated essential features such as Core Boost for stable CPU power delivery, Audio Boost for enhanced sound quality, and user-friendly BIOS and hardware design for easy installation and system tuning. The PRO series focuses on durability, efficiency, and long-term reliability, making it suitable for continuous everyday use.

Overall, the MSI PRO H610M-E DDR4 mATX Motherboard is a practical and dependable choice for users building a modern Intel-based system on a budget. It delivers essential features, stable performance, and good compatibility, making it ideal for office PCs, home setups, and entry-level desktop builds.

Buy MSI PRO H610M-E DDR4 mATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI PRO H610M-E DDR4 mATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards suitable for office, home, and budget desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI PRO H610M-E DDR4 mATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
