Name: MSI PRO H510M-B 10th Gen Micro-ATX Motherboard - Softlink Computers
Brand: MSI
Price: 9500 BDT
Availability: InStock

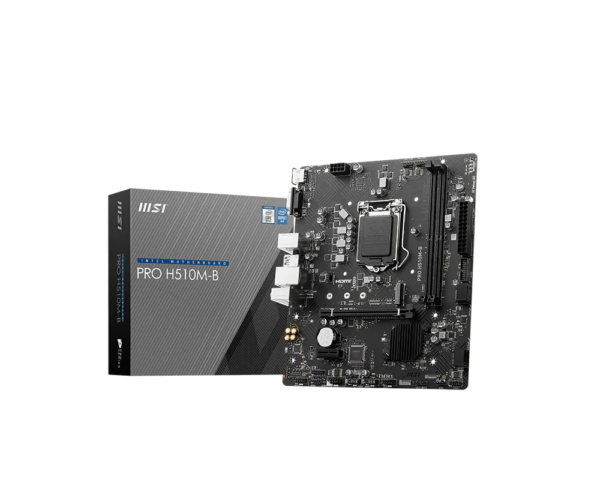

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

Sale Price9,500৳

Regular Price10,000৳

StatusIn Stock

BrandMSI

Key Features

Model: PRO H510M-B
Supported CPU: 10th Gen Intel processors for LGA 1200
Supported RAM: 2x DDR4, Max 64GB up to 2933MHz
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2, Realtek 8111H Gigabit LAN
Warranty: 03-Years

View More Info

9,500৳

Specification

Basic Information

Supported CPU	Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset	INTEL H470
Form Factor	mATX 202mmx236mm
Audio	7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 & NVMe Socket	1x M.2 slot

Memory

Type	DDR4 Supports Dual-Channel mode
Slots	2x DDR4 memory slots
Supported Memory	Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB

Graphics

1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz
1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Connector & Ports

HDMI	1x HDMI 1.4
VGA (s)	1x VGA
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek 8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Audio	Realtek ALC897 Codec
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

The MSI PRO H510M-B 10th Gen Micro-ATX Motherboard is a compact and budget-friendly motherboard designed for Intel 10th Generation processors, offering stable performance and essential features for entry-level and office PC builds. Built for the LGA 1200 socket, it supports Intel Core, Pentium Gold, and Celeron processors, making it a practical solution for everyday computing, business use, and light multitasking systems.

This motherboard supports dual-channel DDR4 memory with up to 64GB capacity and speeds up to 2933 MHz, ensuring smooth system responsiveness for general tasks and productivity workloads. With Intel XMP support, users can easily optimize memory performance for better efficiency.

In terms of expansion and storage, the board features a PCIe 3.0 x16 slot for graphics cards and an additional PCIe x1 slot for expansion devices. It also includes one M.2 slot supporting PCIe 3.0 x4 or SATA SSDs, along with four SATA 6Gb/s ports, allowing flexible storage configurations for faster boot times and improved data access.

For display connectivity, the motherboard provides both HDMI and VGA outputs, enabling compatibility with modern and legacy monitors. The HDMI port supports up to 4K resolution at 30Hz when used with processors that include integrated graphics, making it suitable for office and multimedia setups without requiring a dedicated GPU.

Networking is handled by a Realtek Gigabit LAN controller, delivering stable and reliable wired internet connectivity for daily usage such as browsing, streaming, and office applications. The board also includes multiple USB 3.2 Gen1 and USB 2.0 ports for connecting peripherals and accessories.

MSI has integrated essential features such as Core Boost technology for stable CPU power delivery, Audio Boost for enhanced sound quality, and EZ Debug LEDs for easy troubleshooting. Its durable PCB design ensures long-term reliability, making it suitable for continuous everyday use.

Overall, the MSI PRO H510M-B 10th Gen Micro-ATX Motherboard is a dependable and cost-effective solution for users building a basic Intel system. It delivers the necessary features for stable performance, making it ideal for office PCs, educational setups, and budget desktop builds.

Buy MSI PRO H510M-B 10th Gen Micro-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI PRO H510M-B 10th Gen Micro-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards suitable for office, home, and budget desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI PRO H510M-B 10th Gen Micro-ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
