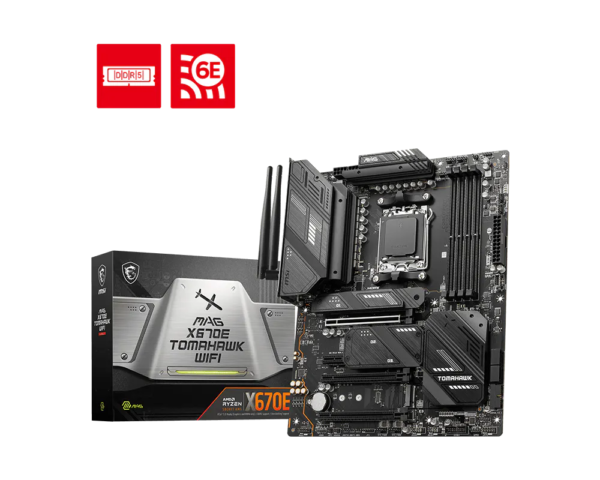

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Motherboard

Sale Price39,000৳

Regular Price40,000৳

StatusIn Stock

BrandMSI

Key Features

Model: MAG X670E TOMAHAWK WIFI
Supported CPU: Ryzen 9000/ 8000 / 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 192GB 6000+(OC) MHz
Graphics Output: 1x HDM, 1x Display Port, 1x Type-C Display port
Features: 4x M.2, 2.5G LAN and AMD Wi-Fi 6E
Warranty: 03-Years

View More Info

39,000৳

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5
Chipset	AMD X670
BIOS	BIOS 5
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI	3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
M.2 & NVMe Socket	4x M.2 slots: Both support PCIe 4.0 x4 NVMe SSDs (sizes 2260/2280).

Memory

Type	DDR5
Slots	4x DIMMs
Supported Memory	Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	192GB

Graphics

Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz
Support DP 1.4, maximum resolution of 4K 60Hz*
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DisplayPort 1x Type-C DisplayPort
VGA (s)	No
USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD) Back Audio connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Motherboard

The MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Motherboard is a premium high-performance motherboard built for enthusiasts, gamers, and professional users who demand top-tier features from the AMD AM5 platform. Powered by the flagship X670E chipset, it supports AMD Ryzen 7000, 8000, and newer generation processors, delivering cutting-edge performance with full PCIe 5.0 support for both graphics and storage, making it a truly future-proof solution.

Designed with a robust 14+2+1 Duet Rail power delivery system and dual 8-pin CPU connectors, this motherboard ensures stable and efficient power distribution even under heavy workloads and overclocking conditions. MSI’s Core Boost and digital PWM design provide precise power control, enabling consistent high performance for multi-core processors and demanding applications.

The board supports DDR5 memory with speeds up to 7800+ MHz (overclocked), offering significantly higher bandwidth and faster responsiveness. MSI Memory Boost and EXPO profile support enhance stability and simplify memory overclocking, ensuring optimal performance in gaming, content creation, and multitasking environments.

One of the standout features of this motherboard is its full PCIe 5.0 capability, including a reinforced PCIe 5.0 x16 slot and a Gen5 M.2 slot, delivering ultra-fast data transfer speeds and next-generation GPU and SSD support. This ensures faster load times, improved system responsiveness, and long-term upgrade flexibility.

For storage, it includes multiple M.2 slots (including Gen5 and Gen4) and SATA ports, allowing users to build high-speed and high-capacity storage configurations. This flexibility makes it ideal for both gaming systems and professional workloads requiring fast data access.

Connectivity is comprehensive, featuring 2.5G LAN, Wi-Fi 6E, and Bluetooth support, ensuring fast, stable, and low-latency networking for gaming, streaming, and cloud-based applications. High-speed USB connectivity, including USB 3.2 Gen 2x2 (20Gbps), further enhances compatibility with modern peripherals.

Thermal performance is optimized through an extended heatsink design, heavy VRM cooling, M.2 Shield Frozr, and high-quality thermal pads, ensuring efficient heat dissipation and stable operation during intensive workloads. The 8-layer PCB with 2oz thickened copper enhances durability, signal integrity, and long-term reliability.

Overall, the MSI MAG X670E TOMAHAWK WIFI AM5 ATX Motherboard delivers a powerful combination of next-generation technology, strong power delivery, premium cooling, and advanced connectivity. It is an excellent choice for users looking to build a high-end, future-ready DDR5 system with maximum performance and reliability.
