Name: ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 21500 BDT
Availability: InStock

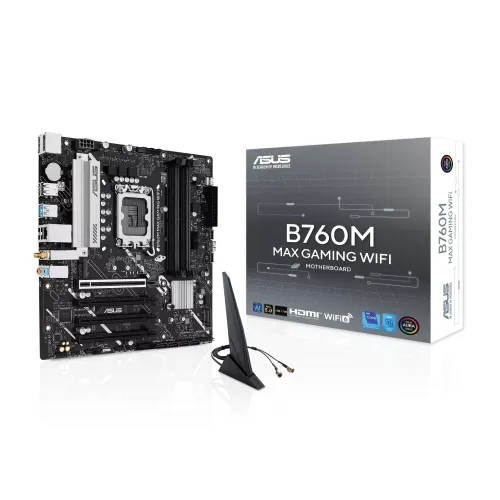

ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard

Sale Price21,500৳

Regular Price23,600৳

StatusIn Stock

BrandASUS

Key Features

Model: B760M MAX GAMING WIFI
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DIMM, 7200+ (OC), Max. 192GB, DDR5
Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
Features: Realtek 1Gb Ethernet, Wi-Fi 6, Bluetooth 5.3
Warranty: 03-Years

View More Info

21,500৳

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion Slots

PCI	Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode)
M.2 & NVMe Socket	3 x M.2

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 192GB

Graphics

1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types

Connector & Ports

HDMI	1 x HDMI 2.1
Display Port (s)	1 x DisplayPort 1.4
USB (s)	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 *The Bluetooth version may vary,
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
RAID	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks
TPM	1 x SPI TPM header (14-1pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool AURA Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard

The ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard is a modern, feature-rich motherboard built for Intel’s LGA 1700 platform, designed to deliver reliable performance, next-generation connectivity, and strong gaming capability in a compact mATX form factor. Powered by the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors, making it a versatile option for gaming, productivity, and everyday high-performance computing.

This motherboard supports DDR5 memory, offering improved bandwidth and efficiency compared to previous DDR4 platforms. With ASUS’s OptiMem II technology, signal integrity is enhanced for better memory stability and overclocking performance, ensuring smoother multitasking and faster application response times.

For expansion, the board features a PCIe 5.0 x16 slot, providing next-generation GPU compatibility and maximum bandwidth for modern graphics cards. Additional PCIe slots are also available for expansion devices, allowing flexible system customization and upgrades.

Storage capabilities are strong, with three M.2 slots (including PCIe Gen4 support) and SATA ports, enabling high-speed NVMe SSD configurations alongside traditional storage. This ensures faster boot times, quick data access, and improved system responsiveness for gaming and professional workloads.

Connectivity is well-balanced, featuring Wi-Fi 6 and Gigabit LAN, providing stable and efficient networking for online gaming, streaming, and everyday internet usage. It also includes USB 10Gbps ports and front USB Type-C support, ensuring fast data transfer and modern peripheral compatibility.

For display output, the motherboard includes HDMI and DisplayPort, supporting high-resolution displays when paired with CPUs that feature integrated graphics, making it suitable for both gaming setups and professional multi-monitor environments.

ASUS has designed this board with a strong focus on cooling and durability, incorporating VRM heatsinks, PCH heatsinks, and Fan Xpert control, which help maintain stable temperatures and consistent performance under load. Additional features like Aura Sync RGB support allow customization for visually appealing PC builds.

Overall, the ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard is a well-balanced and future-ready motherboard offering PCIe 5.0 support, DDR5 performance, strong connectivity, and reliable thermal design. It is an excellent choice for users building a compact Intel-based gaming or productivity system with modern features and upgrade potential.

Buy ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest ASUS motherboards suitable for gaming, professional, and general desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The ASUS B760M MAX GAMING WIFI DDR5 Micro-ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
