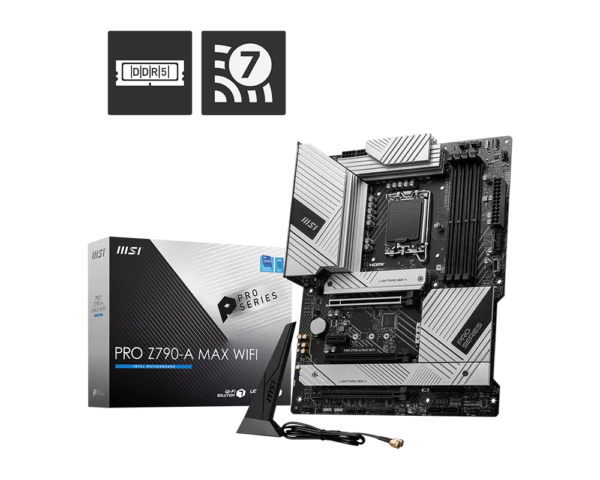

MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard

Sale Price34,300৳

Regular Price37,000৳

StatusIn Stock

BrandMSI

Key Features

Model: PRO Z790-A MAX WIFI
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5G LAN with Wi-Fi 7 Solution
Warranty: 03-Years

View More Info

34,300৳

Specification

Basic Information

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL Z790
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output

Expansion Slots

PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 & NVMe Socket	4x M.2 slots

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB

Graphics

1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*

Connector & Ports

HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

LED FEATURE: 4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard

The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is a high-end, feature-rich motherboard engineered for Intel’s LGA 1700 platform, delivering exceptional performance, next-generation connectivity, and strong power delivery for demanding gaming, content creation, and professional workloads. Built on the Intel Z790 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors, making it a future-ready solution for high-performance desktop builds.

This motherboard supports DDR5 memory with four DIMM slots, offering speeds up to 7800+ MHz (OC) and high-capacity configurations for intensive multitasking and heavy workloads. DDR5 technology significantly improves bandwidth and efficiency, resulting in faster system responsiveness and better performance in modern applications.

For expansion, it features a PCIe 5.0 x16 slot, ensuring compatibility with next-generation graphics cards and providing high bandwidth for modern GPUs. Additional PCIe slots are also available for expansion devices, allowing flexible system customization.

Storage capabilities are extensive, with multiple M.2 PCIe Gen4 x4 slots (up to four) and SATA ports, enabling ultra-fast NVMe SSD performance alongside traditional storage options. This setup ensures faster boot times, quick data access, and efficient workflow performance.

Connectivity is a standout feature of this model, offering 2.5G LAN and the latest Wi-Fi 7 with Bluetooth 5.4, delivering ultra-fast, low-latency networking for gaming, streaming, and professional applications. Wi-Fi 7 significantly improves speed, efficiency, and performance in dense network environments compared to previous standards.

For display output, the motherboard includes HDMI 2.1 and DisplayPort 1.4, supporting high-resolution output up to 4K and even 8K (depending on CPU integrated graphics), making it suitable for multi-monitor and high-resolution setups.

MSI has designed this board with a strong focus on power and thermal performance. It features a 16+1+1 digital power design with 80A SPS, dual 8-pin CPU power connectors, extended heatsinks, M.2 Shield Frozr, and a 6-layer PCB with 2oz copper, ensuring stable performance and efficient heat dissipation even under heavy workloads.

Additional features such as Core Boost, Memory Boost, Audio Boost 5, USB 3.2 Gen 2x2 (20Gbps), EZ Debug LED, and Flash BIOS support enhance usability, system stability, and ease of troubleshooting for both beginners and advanced users.

Overall, the MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is a premium and future-proof motherboard that combines strong power delivery, next-gen PCIe 5.0 support, ultra-fast DDR5 memory, and advanced Wi-Fi 7 connectivity. It is ideal for users building a high-performance Intel system capable of handling gaming, streaming, and professional workloads with excellent stability and upgrade potential.

Buy MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards suitable for gaming, professional, and high-performance desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
