Name: MSI PRO B760M-E DDR5 Micro-ATX Motherboard - Softlink Computers
Brand: MSI
Price: 13200 BDT
Availability: InStock

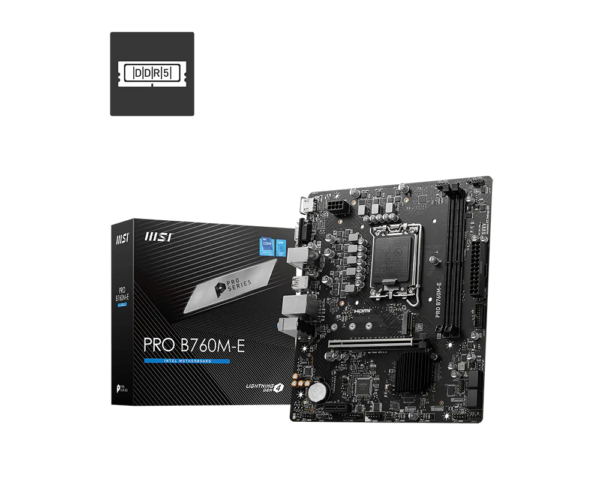

MSI PRO B760M-E DDR5 Micro-ATX Motherboard

Sale Price13,200৳

Regular Price14,100৳

StatusIn Stock

BrandMSI

Key Features

Model: B760M-E DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN
Warranty: 03-Years

View More Info

13,200৳

Specification

Basic Information

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 200mmx236.16mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 & NVMe Socket	1x M.2 slot

Memory

Type	DDR5
Slots	2x DIMM
Supported Memory	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz
Maximum Memory	96GB

Graphics

1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA

Connector & Ports

HDMI	1x HDMI
VGA (s)	1x VGA
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

1x RGB LED connector(JRGB)

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO B760M-E DDR5 Micro-ATX Motherboard

The MSI PRO B760M-E DDR5 Micro-ATX Motherboard is a modern, entry-level motherboard built for Intel’s LGA 1700 platform, offering essential next-generation features with reliable performance for budget and productivity-focused PC builds. Powered by the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, making it a flexible and future-ready choice for home, office, and entry-level gaming systems.

This motherboard features dual-channel DDR5 memory support with speeds up to 6400+ MHz (overclocked), delivering improved bandwidth and efficiency compared to DDR4 platforms. MSI’s Memory Boost technology and optimized PCB design ensure stable high-frequency performance, enabling smooth multitasking, faster responsiveness, and improved overall system efficiency.

For expansion, the board includes a PCIe 4.0 x16 slot reinforced with Steel Armor, providing durability and stable support for modern graphics cards. It also includes a PCIe x1 slot for additional expansion devices, making it suitable for basic upgrade needs.

Storage capabilities include a high-speed PCIe Gen4 x4 M.2 slot along with multiple SATA ports, allowing users to build fast and flexible storage configurations. This enables quicker boot times, faster application loading, and improved overall system responsiveness, especially when paired with NVMe SSDs.

In terms of connectivity, the motherboard offers Gigabit LAN for stable wired networking and USB 3.2 Gen1 ports for fast data transfer. Display outputs include HDMI (supporting up to 4K resolution at 30Hz) and VGA, ensuring compatibility with both modern and legacy monitors when used with processors that feature integrated graphics.

MSI has incorporated essential PRO series features such as Core Boost for stable CPU power delivery, Audio Boost for enhanced sound quality, and Frozr AI Cooling for intelligent fan control and thermal optimization. Additional features like EZ Debug LED and MSI Click BIOS 5 improve usability and troubleshooting, making the board user-friendly for both beginners and experienced builders.

Overall, the MSI PRO B760M-E DDR5 Micro-ATX Motherboard is a practical and cost-effective solution for users who want to build a modern Intel system with DDR5 support. It delivers essential performance, stable power design, and future-ready memory technology, making it ideal for office PCs, home systems, and entry-level gaming setups.

Buy MSI PRO B760M-E DDR5 Micro-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original MSI PRO B760M-E DDR5 Micro-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest MSI motherboards suitable for gaming, professional, and general desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The MSI PRO B760M-E DDR5 Micro-ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
