Name: MSI PRO B760M-E DDR4 Micro-ATX Motherboard - Softlink Computers
Brand: MSI
Price: 12800 BDT
Availability: InStock

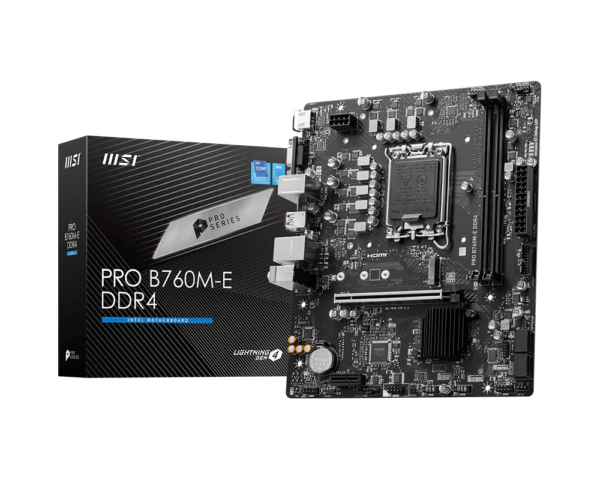

MSI PRO B760M-E DDR4 Micro-ATX Motherboard

Sale Price12,800৳

Regular Price14,100৳

StatusIn Stock

BrandMSI

Key Features

Model: PRO B760M-E DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 128GB 4800(OC)
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Warranty: 03-Years

View More Info

12,800৳

Specification

Basic Information

Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 200mmx236.16mm
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
M.2 & NVMe Socket	1x M.2 slot

Memory

Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB

Graphics

1x HDMI
Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Connector & Ports

HDMI	1x HDMI
VGA (s)	1x VGA
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO B760M-E DDR4 Micro-ATX Motherboard

The MSI PRO B760M-E DDR4 Micro-ATX Motherboard is a practical and budget-friendly motherboard designed for Intel’s LGA 1700 platform, offering stable performance and essential modern features for everyday computing and entry-level gaming systems. Built on the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, making it a flexible and future-ready option for cost-effective PC builds.

This motherboard supports dual-channel DDR4 memory with speeds up to 4800 MHz (overclocked) and a maximum capacity of 64GB, ensuring smooth multitasking and responsive performance for office work, browsing, and moderate workloads. MSI’s Memory Boost technology enhances signal integrity and stability, allowing consistent performance across different RAM configurations.

For expansion, the board features a PCIe 4.0 x16 slot with Steel Armor reinforcement, providing strong support for modern graphics cards while maintaining durability and signal stability. It also includes a PCIe x1 slot for additional expansion devices, making it suitable for basic upgrade needs.

Storage capabilities include a high-speed Lightning Gen4 M.2 slot along with multiple SATA ports, allowing users to build fast and flexible storage configurations. This enables quicker boot times, faster application loading, and improved overall system responsiveness, especially when using NVMe SSDs.

In terms of connectivity, the motherboard offers Gigabit LAN for stable wired networking and multiple USB 3.2 Gen1 ports for faster data transfer. Display outputs include HDMI and VGA, ensuring compatibility with both modern and legacy monitors when paired with processors that feature integrated graphics.

MSI has equipped this motherboard with essential features such as Core Boost for stable CPU power delivery, Audio Boost for improved sound quality, and EZ Debug LED for easy troubleshooting. The inclusion of Frozr AI Cooling and a dedicated chipset heatsink helps maintain optimal temperatures and ensures long-term reliability.

Overall, the MSI PRO B760M-E DDR4 Micro-ATX Motherboard is a dependable and efficient solution for users building a modern Intel-based system on a budget. It delivers the necessary features like PCIe 4.0 support, DDR4 performance, and stable power design, making it ideal for office PCs, home systems, and entry-level gaming builds.
