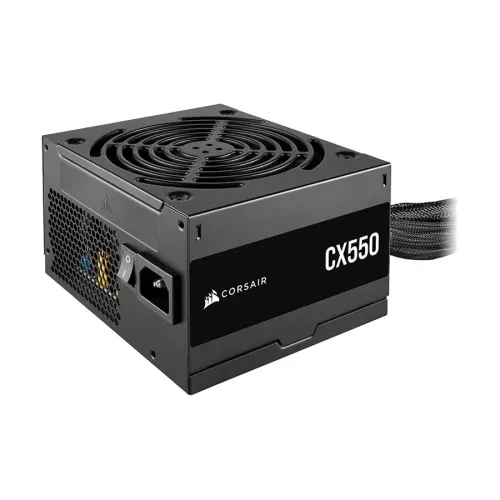

Corsair CX Series CX550 550W 80 PLUS Bronze ATX Power Supply
Key Features
- Model: CX Series CX550
- Power Output Capacity: 550 Watts
- Form Factor: ATX Standard
- Fan Type: 120 mm silent hydraulic bearing fan
- Cables: Premium All-Black Flat Cables (Non-Modular)
- Warranty: 06-Years Warranty
5,200৳
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
General Specifications
| Model | CX Series CX550 |
| Form Factor | ATX |
| Total Power Output | 550 Wats |
| Efficiency Rating | 80 PLUS Bronze (Up to 88% Efficiency) |
| Compliant Standard | ATX12V Version v2.31 |
| Safety Certifications | CE, FCC, cTUVus, TUV, CB, RCM, EAC, RoHS, WEEE |
| Noise Level | Thermally controlled low-noise operation |
| Fan Size | 120mm Sleeve Bearing Fan |
| Dimensions (L \times W \times H) | 125 mm x 150 mm x 86 mm |
| Weight | 2.28 kg |
| Electrical Protection Features | OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Over Power) |
| Cable | Sleeved flat black cables |
| Hold up time: | > 16ms at 100% load |
| MTBF: | 1,00,000 Hours |
| Others | Compact 125mm length casing fits easily into modern cases |
Input & Output Power Specs
| Modular Type | Non-Modular |
| AC Input Voltage | 100–240V / 10A-5A / 47~63Hz |
| +12V Rail Output | 44A / 528W |
| +5V & +3.3V Outputs | +5V @ 20A & +3.3V @ 24A (120W Combined |
Cable Connectors
| Main Power (ATX 24-Pin) | 1x Main Power ATX Connector (24-pin) |
| CPU Power (EPS 8-Pin) | 1x EPS/ATX12V Connector (8-pin / 4+4) |
| PCIe Power (GPU 8-Pin) | 2x PCIe Connectors (6+2 pin) |
| SATA Connectors | 3x SATA Connectors |
| Peripheral (Molex) | 2x PATA/Molex Connectors |
Warranty Information
| Warranty Details | 06 Years Manufacturing Replacement / Service Warranty |
| Warranty terms | Warranty claims are covered for manufacturing defects. Physical burns, fractures, casing damage, or unauthorized repair attempts voids the brand policy. |
