Name: ASUS PRIME B760M-F Micro-ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 14100 BDT
Availability: InStock

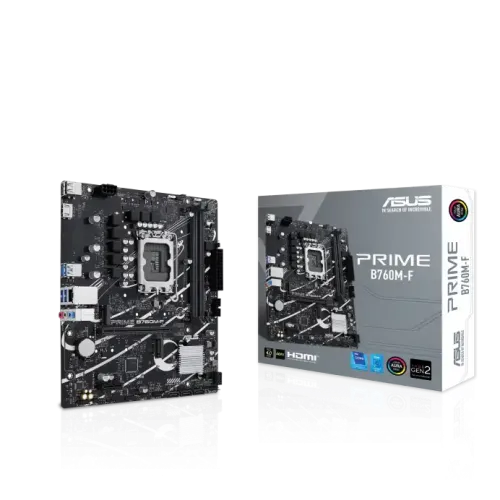

ASUS PRIME B760M-F Micro-ATX Motherboard

Sale Price14,100৳

Regular Price15,900৳

StatusIn Stock

BrandASUS

Key Features

Model: PRIME B760M-F
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 96GB, DDR5
Graphics Output: 1 x HDMI
Features: 1 x Realtek 1Gb Ethernet
Warranty: 03-Years

View More Info

14,100৳

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot
M.2 & NVMe Socket	Total supports 2 x M.2 slots

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module
Maximum Memory	Max. 96GB

Graphics

** Supports 4K@30Hz as specified in HDMI 1.4.

Connector & Ports

HDMI	1x HDMI port
USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
TPM	1 x SPI TPM header (14-1pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS PRIME B760M-F Micro-ATX Motherboard

The ASUS PRIME B760M-F Micro-ATX Motherboard is a dependable and modern Intel motherboard designed to provide stable performance, efficient cooling, and essential next-generation features for gaming, productivity, and everyday desktop computing. Built on the Intel B760 chipset, it supports Intel 12th, 13th, and 14th Generation Core processors on the LGA 1700 socket, making it a future-ready platform for modern PC builds.

This motherboard features DDR5 memory support with dual DIMM slots, supporting up to 96GB memory capacity and speeds reaching 8000MHz+ (OC depending on CPU and memory configuration). DDR5 technology provides significantly improved bandwidth, lower power consumption, and enhanced multitasking performance, ensuring smooth operation in gaming, office work, and content creation workloads.

For graphics and expansion, the board includes a PCIe 4.0 x16 slot for modern graphics cards along with an additional PCIe 4.0 x1 slot for expansion devices. This setup delivers stable GPU performance and allows flexible upgrade options for additional hardware components.

Storage performance is fast and efficient with two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports, enabling users to install high-speed NVMe SSDs alongside traditional storage drives. This combination provides faster boot times, quicker application loading, and improved overall system responsiveness.

Connectivity features include Realtek 1Gb Ethernet, delivering stable and reliable wired networking for online gaming, streaming, office applications, and general internet usage. The motherboard also includes multiple USB 5Gbps ports and internal headers for modern peripheral connectivity.

For display output, the motherboard includes an HDMI port with support for up to 4K resolution, making it suitable for office setups, multimedia systems, and dual-purpose desktop builds when paired with processors that feature integrated graphics.

ASUS has designed this motherboard with durability and thermal stability in mind. It features PCH heatsinks, hybrid fan headers, Fan Xpert 2+ cooling controls, and ASUS 5X Protection III technology, ensuring stable power delivery, improved cooling efficiency, and long-term reliability during heavy workloads and gaming sessions.

Additional features such as Aura Sync RGB support, Two-Way AI Noise Cancelation, Q-DIMM, Q-Slot, and ASUS UEFI BIOS improve customization, simplify installation, and enhance the overall user experience for both beginner and experienced PC builders.

Overall, the ASUS PRIME B760M-F Micro-ATX Motherboard is a reliable and feature-rich motherboard that combines DDR5 performance, PCIe 4.0 connectivity, efficient cooling, and essential modern features in a compact Micro-ATX form factor. It is an excellent choice for users building a balanced Intel-based gaming or productivity PC.

Buy ASUS PRIME B760M-F Micro-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original ASUS PRIME B760M-F Micro-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest ASUS motherboards suitable for gaming, office work, content creation, and professional desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The ASUS PRIME B760M-F Micro-ATX Motherboard comes with an official warranty, providing dependable after-sales service and long-term peace of mind.
