Name: Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard - Softlink Computers
Brand: ASUS
Price: 9000 BDT
Availability: InStock

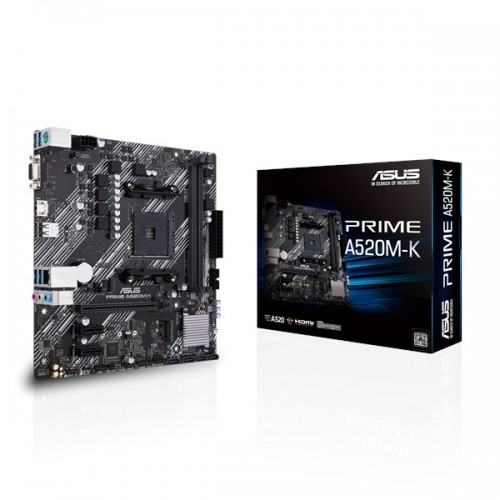

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Sale Price9,000৳

Regular Price10,200৳

StatusIn Stock

BrandASUS

Key Features

Model: Asus Prime A520M-K
AMD AM4 Socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
5X Protection III
Ultrafast connectivity
Comprehensive cooling
Warranty: 03-Years

View More Info

9,000৳

Specification

Basic Information

Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	AMD A520
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Expansion Slots

PCI	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1

Memory

Type	Dual Channel DDR4 Memory Technology
Slots	2 x DIMM
Supported Memory	4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Maximum Memory	64GB, DDR4

Connector & Ports

HDMI	1 x HDMI 2.1 (4K@60Hz)
D-Sub (s)	1 x D-Sub
USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8111H 1GB Ethernet ASUS LANGuard
Supported Storage	Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s),
RAID	Support Raid 0, 1, 10
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports	Internal I/O Ports 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s)
TPM	1 x SPI TPM header

Others

Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS Prime A520M-K AM4 Micro-ATX AMD Motherboard

The ASUS Prime A520M-K AM4 Micro-ATX AMD Motherboard is a dependable and cost-effective solution designed for AMD’s AM4 platform, offering stable performance and essential features for everyday computing and entry-level builds. Built on the AMD A520 chipset, it supports AMD Ryzen 3000, 4000 G-Series, and 5000 series processors, making it a practical choice for home users, office setups, and budget-friendly gaming systems.

This motherboard features dual-channel DDR4 memory support with 2 DIMM slots, allowing up to 64GB capacity with speeds reaching 4600 MHz (OC depending on CPU and RAM). This ensures efficient multitasking, smooth system responsiveness, and reliable performance for daily workloads and light gaming.

For expansion, the board includes a PCIe 3.0 x16 slot for installing a dedicated graphics card, along with an additional PCIe slot for expansion devices. This provides flexibility for users who want to enhance their system with a GPU or other add-on components.

Storage options include M.2 PCIe 3.0 x4 support for high-speed NVMe SSDs and multiple SATA ports for HDDs or SATA SSDs. This combination enables faster boot times, quick data access, and a balanced storage setup suitable for both performance and capacity.

Connectivity features include Gigabit LAN, ensuring stable and consistent network performance for internet usage, office work, and streaming. The motherboard also offers multiple USB ports for connecting peripherals and external devices.

For display output, the motherboard includes HDMI and D-Sub (VGA) ports, allowing support for modern and legacy displays when paired with Ryzen processors that feature integrated graphics. This makes it suitable for office environments and multimedia use.

ASUS has incorporated 5X Protection III technology, including overvoltage protection, safe components, and optimized power delivery, ensuring durability and long-term reliability. The board also features ASUS UEFI BIOS, providing a user-friendly interface for system configuration and tuning.

Overall, the ASUS Prime A520M-K AM4 Micro-ATX AMD Motherboard is a solid and reliable choice for users seeking a budget-friendly AMD motherboard with essential features, stable performance, and good upgrade support for everyday computing and entry-level gaming.

Buy ASUS Prime A520M-K AM4 Micro-ATX AMD Motherboard from Softlink Computers

In Bangladesh, you can get the original ASUS Prime A520M-K AM4 Micro-ATX AMD Motherboard from Softlink Computers. We offer a wide collection of the latest ASUS motherboards suitable for office use, home computing, and budget desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The ASUS Prime A520M-K AM4 Micro-ATX AMD Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
