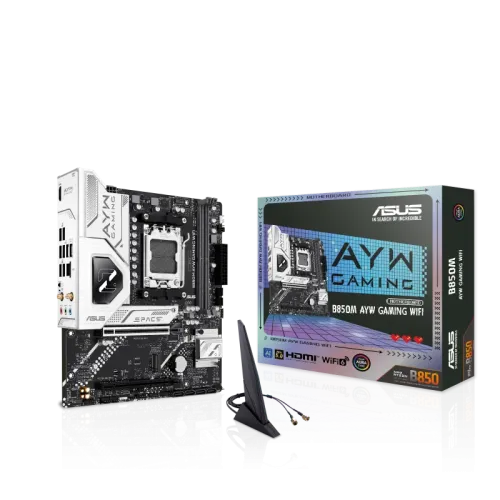

ASUS B850M AYW GAMING WIFI AM5 Micro-ATX Motherboard

Sale Price26,800৳

Regular Price28,400৳

StatusIn Stock

BrandASUS

Key Features

Model: B850M AYW GAMING WIFI
Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported Memory: 2 x DIMM, Max. 128GB, Up to 8200+MT/s(OC)
Graphics Output: 1 x HDMI port Supports 4K@60Hz
Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, Realtek 7.1 Surround Sound
Warranty: 03-Years

View More Info

26,800৳

Specification

Basic Information

Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B850 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI

AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)

M.2 & NVMe Socket

AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory	128GB

Graphics

1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI	1x HDMI 2.1
USB (s)	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
RAID	AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button
TPM	1 x SPI TPM header (14-1 pin)

Others

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Pre-mounted I/O shield
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers

Bundled Software

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS DriverHub
TurboV Core
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS B850M AYW GAMING WIFI AM5 Micro-ATX Motherboard

The ASUS B850M AYW GAMING WIFI AM5 Micro-ATX Motherboard is a next-generation AMD platform motherboard designed to deliver strong performance, modern connectivity, and future-ready features for gaming and productivity systems. Built on the AMD B850 chipset, it supports AMD Ryzen 7000, 8000, and upcoming 9000 series processors on the AM5 socket, making it a highly forward-compatible choice for new PC builds.

This motherboard features DDR5 memory support with dual-channel architecture, utilizing 2 DIMM slots with up to 128GB capacity and speeds exceeding 8200+ MT/s (OC depending on CPU and configuration). This ensures high bandwidth, improved efficiency, and smoother multitasking performance for modern workloads and gaming applications.

For expansion, the board includes a PCIe 5.0 x16 slot with ASUS SafeSlot design, offering next-generation GPU compatibility and enhanced durability. An additional PCIe 4.0 slot is also available for expansion cards, allowing flexible system customization.

Storage performance is highly advanced, featuring dual M.2 slots with PCIe Gen5 and Gen4 support, enabling ultra-fast NVMe SSDs for rapid boot times, faster file transfers, and improved overall system responsiveness. Multiple SATA ports are also included for additional storage devices.

Connectivity is a major highlight of this motherboard, offering 2.5G Ethernet and built-in Wi-Fi 6, ensuring stable, high-speed wired and wireless networking. This setup is ideal for online gaming, streaming, and high-bandwidth usage without requiring additional adapters.

For display output, the motherboard includes an HDMI port supporting up to 4K resolution, making it suitable for modern display setups when paired with processors that include integrated graphics.

ASUS has focused on durability and user-friendly design with features such as 8+2+1 phase digital power design, pre-mounted I/O shield, EZ PC DIY features, and Aura Sync RGB support. These enhancements ensure stable power delivery, simplified installation, and customizable aesthetics for modern PC builds.

Overall, the ASUS B850M AYW GAMING WIFI AM5 Micro-ATX Motherboard is a compact yet powerful solution that combines PCIe 5.0 readiness, DDR5 performance, and strong connectivity. It is ideal for gamers, enthusiasts, and professionals looking to build a future-proof AMD system with modern features and reliable long-term performance.
