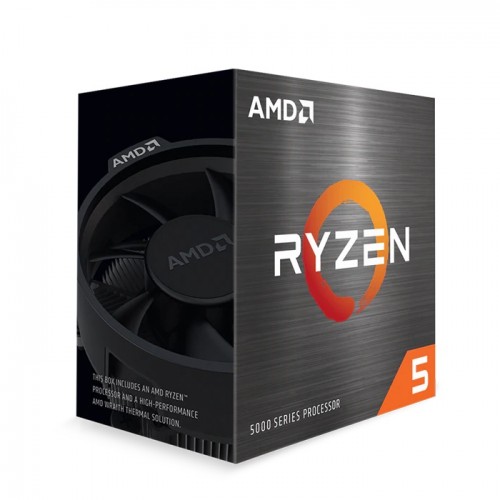

AMD Ryzen 5 5600 AM4 Processor

AMD Ryzen 5 5600 Processor

The AMD Ryzen 5 5600 is a high-performance desktop processor built on AMD's Zen 3 architecture using the TSMC 7nm FinFET process technology, codenamed Vermeer. Designed for gaming, multitasking, content creation, and professional productivity, this six-core, twelve-thread processor delivers exceptional speed, improved efficiency, and outstanding single-core and multi-core performance. Unlike G-series APUs, the AMD Ryzen 5 5600 does not include integrated graphics and requires a dedicated graphics card for display output, making it a purpose-built CPU for performance-oriented GPU-based desktop builds. With a base clock of 3.5 GHz, a boost clock of up to 4.4 GHz, a generous 32 MB of L3 cache, full overclocking support, and AMD VR Ready Premium certification, the AMD Ryzen 5 5600 offers one of the best price-to-performance ratios available on the AM4 platform and is widely regarded as an ideal choice for gamers, freelancers, and power users in Bangladesh.

Performance and Architecture

AMD Zen 3 Core Architecture

The AMD Ryzen 5 5600 is built on AMD's Zen 3 architecture, which delivers over 20 major improvements including wider and more flexible execution resources, significantly more load and store bandwidth, and a streamlined front end. The Zen 3 architecture achieves an average of 19% additional performance from every MHz compared to the previous Zen 2 generation, representing the most comprehensive design overhaul of the Zen era. This historically large generational IPC improvement is a major contributor to the AMD Ryzen 5 5600's ability to deliver unmatched single-core performance at its price point.

Vermeer Architecture and Dual-Die Design

Unlike the single-die Cezanne APUs, the AMD Ryzen 5 5600 uses a two-die package design consisting of a 74mm² CPU Compute Die (CCD) manufactured on TSMC 7nm and a 125mm² I/O Die (IOD) manufactured on GlobalFoundries 12nm. This design provides superior memory controller performance, a larger 32 MB L3 cache, and better sustained multi-core performance compared to the G-series APUs.

Unified Core Complex and Large L3 Cache

The AMD Ryzen 5 5600 uses a unified core complex design that brings all six cores and 32 MB of L3 cache into a single group of shared resources. This dramatically reduces core-to-core and core-to-cache latencies by making every element of the die a direct neighbour with minimal communication time. Latency-sensitive tasks like PC gaming especially benefit from this change, as tasks now have direct access to twice as much L3 cache compared to Zen 2, resulting in significantly lower latency and faster frame times in gaming workloads.

Core and Thread Configuration

The AMD Ryzen 5 5600 features six CPU cores and twelve threads with AMD Simultaneous Multithreading (SMT), operating at a base clock of 3.5 GHz and boosting up to 4.4 GHz via AMD Precision Boost 2 Technology. It includes 384 KB of L1 cache, 3 MB of L2 cache, and 32 MB of L3 cache, providing ample cache capacity for efficient data processing and smooth performance across all gaming, multitasking, and professional workloads.

AMD Precision Boost 2

The AMD Ryzen 5 5600 uses AMD Precision Boost 2, which dynamically adjusts CPU clock speeds on a per-thread basis in real time, maintaining higher sustained boost clocks across more active threads simultaneously. This delivers better real-world responsiveness and sustained performance during demanding workloads compared to previous generation boost technologies.

Unlocked for Overclocking

As a fully unlocked processor, the AMD Ryzen 5 5600 supports manual overclocking through compatible AM4 motherboards using the AMD Ryzen Master Utility. This gives enthusiast users additional headroom to push performance beyond the default clock speeds, further maximising the outstanding value and performance of this mid-range CPU.

Power Efficiency

The AMD Ryzen 5 5600 operates at a Default TDP of 65W, delivering strong multi-core and single-core performance within an efficient power envelope well suited to a wide range of desktop cooling solutions. The maximum operating temperature is 95°C, ensuring broad compatibility across various AM4 build configurations.

Connectivity and Expansion

PCIe 3.0 Support

The AMD Ryzen 5 5600 supports PCI Express 3.0 with up to 8 lanes (PCIe 3.0 x8) for connecting discrete graphics cards, NVMe SSDs, and other high-speed peripheral devices. This provides reliable bandwidth for modern hardware and enables straightforward system expansion as performance requirements grow over time.

Memory Support

The AMD Ryzen 5 5600 supports dual-channel DDR4 memory across two memory channels with speeds up to 3200 MT/s and a maximum capacity of 128 GB. Higher memory speeds are achievable through overclocking on compatible motherboards, with faster DDR4 kits further improving gaming and application performance.

No Integrated Graphics

The AMD Ryzen 5 5600 does not include integrated graphics. A dedicated discrete graphics card is required for display output. This makes the AMD Ryzen 5 5600 the ideal choice for users who are pairing it with a dedicated GPU, allowing them to focus the full budget on CPU performance and invest in the best possible graphics card for their gaming or workstation build.

AMD StoreMI Technology

The AMD Ryzen 5 5600 supports AMD StoreMI Technology, a powerful storage acceleration tool for desktop PC builds. StoreMI automatically pairs the most frequently accessed files with an SSD cache for peak performance, enabling HDD-based systems to achieve SSD-like speeds for boot times, load times, and file management. Simply adding an SSD to the system allows StoreMI to handle the rest automatically, improving overall system responsiveness without complex manual configuration.

AMD VR Ready Premium

The AMD Ryzen 5 5600 is certified as AMD Ryzen VR Ready Premium, ensuring the processor meets the demanding performance requirements of modern virtual reality applications and headsets, delivering smooth and immersive VR experiences when paired with a compatible discrete GPU.

Supported Technologies

The AMD Ryzen 5 5600 supports a comprehensive set of AMD platform technologies including AMD Zen 3 Architecture, AMD Precision Boost 2, AMD Simultaneous Multithreading (SMT), AMD Virtualization Technology (AMD-V), AMD StoreMI Technology, AMD VR Ready Premium, AMD Ryzen Master Utility, and instruction set extensions including x86-64, AES, AVX, AVX2, FMA3, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, and MMX+. It is fully compatible with Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, and Ubuntu x86 64-bit operating systems.

Motherboard Compatibility

The AMD Ryzen 5 5600 uses the AM4 socket and is compatible with AMD 300, 400, and 500 series motherboards including A320, B350, B450, X370, X470, X570, A520, and B550 chipsets. Older motherboards may require a BIOS update for full compatibility and best stability. Recommended motherboard options include MSI B450M PRO-VDH MAX, MSI B450M-A PRO MAX-II, MSI A520M-A PRO, MSI B550M PRO-VDH WIFI, GIGABYTE B450M DS3H, GIGABYTE B550M DS3H, ASUS PRIME B450M-A II, ASUS PRIME B550M-K, and ASUS TUF GAMING B550-PLUS. The broad AM4 platform support provides a well-established and cost-effective foundation for capable desktop builds.

Recommended Use Cases

The AMD Ryzen 5 5600 is the ideal choice for gaming PC builds requiring strong single-core and multi-core performance at an outstanding price point when paired with a dedicated graphics card. Content creators will benefit from its six Zen 3 cores, twelve threads, and 32 MB of L3 cache for video editing, photo editing, and light rendering workflows. Freelancers and productivity users will find its significant IPC advantage over previous generation processors delivers noticeably faster and more responsive day-to-day performance. For heavy multitasking, streaming, and simultaneous workload handling, its twelve threads ensure smooth operation across all active applications. With its Zen 3 architecture, massive 32 MB unified L3 cache, unlocked overclocking, VR Ready Premium certification, and broad AM4 motherboard compatibility, the AMD Ryzen 5 5600 delivers one of the best price-to-performance ratios available in the mid-range desktop processor market for users in Bangladesh who want a capable and future-ready GPU-based desktop build.

Buy AMD Ryzen 5 5600 in Bangladesh

The original AMD Ryzen 5 5600 AM4 Desktop Processor is available in Bangladesh from Softlink Computer BD, one of the country's trusted computer hardware retailers. Browse the full range of AMD Processors or explore complete Desktop PC solutions. Orders can be placed online or in person at the nearest Softlink Computer BD showroom. The AMD Ryzen 5 5600 is covered by a 3-Year Official Warranty (Fan and Cooler not included).
