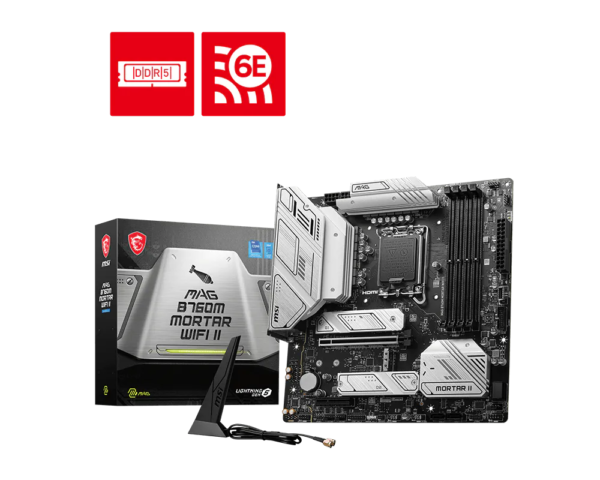

MSI MAG B760M MORTAR WIFI II DDR5 Micro-ATX Motherboard

Sale Price25,500৳

Regular Price27,600৳

StatusIn Stock

BrandMSI

Key Features

Model: MAG B760M MORTAR WIFI II
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5Gbps LAN, Wi-Fi 6E
Warranty: 03-Years

View More Info

25,500৳

Specification

Basic Information

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI	1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
M.2 & NVMe Socket	3x M.2 slots

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory	192GB

Graphics

Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*

Connector & Ports

HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

LED FEATURE: 4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI MAG B760M MORTAR WiFi II DDR5 Micro-ATX Motherboard

The MSI MAG B760M MORTAR WiFi II DDR5 Micro-ATX Motherboard is a high-performance, compact motherboard engineered for Intel’s LGA 1700 platform, delivering premium build quality, strong power delivery, and advanced connectivity for gaming and professional workloads. Based on the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors, making it a future-ready option for powerful desktop systems.

This motherboard features four DDR5 DIMM slots with support up to 256GB and speeds reaching 7800+ MHz (OC), providing exceptional memory bandwidth and efficiency. This ensures smooth multitasking, faster rendering, and improved gaming performance, especially in demanding applications.

For expansion, it includes a PCIe 5.0 x16 slot, offering next-generation GPU compatibility and long-term upgrade potential. It also provides an additional PCIe slot for expansion devices, ensuring flexibility for advanced configurations.

Storage capabilities are a major highlight, featuring three M.2 PCIe Gen4 x4 slots along with SATA ports. This allows users to install multiple high-speed NVMe SSDs for ultra-fast boot times, rapid data access, and efficient workflow performance.

Connectivity is one of the strongest aspects of this motherboard, offering 2.5G LAN, WiFi 6E, and Bluetooth 5.3, ensuring high-speed, low-latency networking for gaming, streaming, and heavy data usage.

Display outputs include HDMI 2.1 and DisplayPort 1.4, supporting up to 4K resolution at 60Hz when paired with processors featuring integrated graphics, making it suitable for both gaming and professional multi-display setups.

MSI has equipped this motherboard with a 12+1+1 Duet Rail power design, dual 8-pin CPU power connectors, and premium thermal solutions including extended heatsinks and M.2 Shield Frozr. These features ensure stable performance, efficient cooling, and long-term durability even under heavy workloads.

Additional features such as Core Boost, Memory Boost, Audio Boost, and EZ Debug LED enhance system stability, audio quality, and ease of troubleshooting, making it suitable for both beginners and experienced PC builders.

Overall, the MSI MAG B760M MORTAR WiFi II DDR5 Micro-ATX Motherboard is a premium micro-ATX solution that delivers top-tier performance, strong connectivity, and future-ready features. It is ideal for gamers, content creators, and power users looking for a compact yet powerful Intel-based system.
