Name: MSI B760M Project Zero DDR5 Micro-ATX Motherboard - Softlink Computers
Brand: MSI
Price: 24400 BDT
Availability: InStock

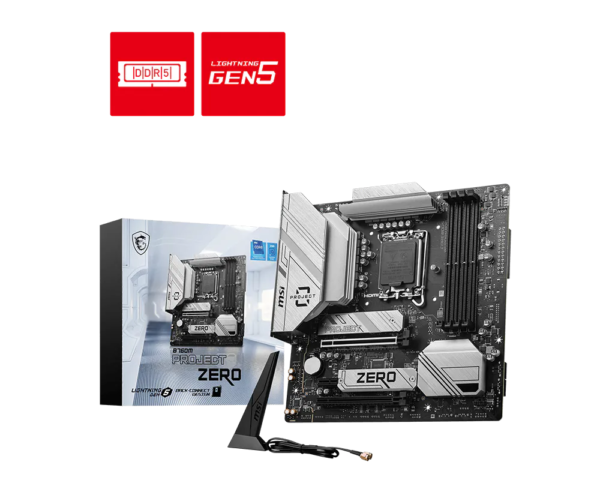

MSI B760M Project Zero DDR5 Micro-ATX Motherboard

Sale Price24,400৳

Regular Price26,700৳

StatusIn Stock

BrandMSI

Key Features

Model: B760M PROJECT ZERO
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
Warranty: 03-Years

View More Info

24,400৳

Specification

Basic Information

Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset	INTEL B760
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output

Expansion Slots

PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 & NVMe Socket	1x M.2

Memory

Type	DDR5
Slots	4x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory	192GB

Graphics

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*

Connector & Ports

HDMI	1x HDMI 1.4
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI B760M PROJECT ZERO DDR5 Micro-ATX Motherboard

The MSI B760M PROJECT ZERO DDR5 Micro-ATX Motherboard is a uniquely engineered motherboard designed for Intel’s LGA 1700 platform, focusing on clean aesthetics, modern performance, and advanced connectivity. Built on the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors, making it an excellent choice for gamers, PC enthusiasts, and builders aiming for a visually clean and high-performance system.

One of the standout features of this motherboard is its innovative back-connect (rear connector) design, where power connectors, fan headers, and internal ports are relocated to the back of the board. This significantly improves cable management, resulting in a cleaner and more visually appealing PC build, especially in compatible cases designed for Project Zero layouts.

The motherboard supports DDR5 memory with four DIMM slots, offering up to 256GB capacity and speeds reaching 7800+ MHz (OC). This ensures high bandwidth, faster data processing, and excellent multitasking performance for gaming, content creation, and heavy workloads.

For expansion, the board features a PCIe 5.0 x16 slot, providing next-generation GPU compatibility and future-proof performance. It also includes high-speed storage options such as PCIe Gen4 x4 M.2 slots, enabling ultra-fast NVMe SSD performance for quicker boot times and faster application loading.

Connectivity is a strong highlight, with 2.5G LAN and Wi-Fi 6E with Bluetooth 5.3, ensuring ultra-fast and low-latency networking for gaming, streaming, and professional use. This combination provides both high-speed wired stability and advanced wireless performance without needing additional adapters.

For display output, the motherboard includes HDMI 2.1 and DisplayPort 1.4, supporting up to 4K resolution at 60Hz when paired with CPUs that include integrated graphics, making it suitable for modern multi-display setups.

MSI has designed this motherboard with a strong emphasis on durability and thermal efficiency. It features a 12+1+1 Duet Rail power system, extended heatsinks, M.2 Shield Frozr, and high-quality 6-layer PCB with 2oz copper, ensuring stable power delivery and efficient heat dissipation even under heavy workloads.

Additional features such as Core Boost, Memory Boost, Frozr AI Cooling, and EZ Debug LED enhance system stability, cooling efficiency, and ease of troubleshooting, making it user-friendly for both beginners and experienced PC builders.

Overall, the MSI B760M PROJECT ZERO DDR5 Micro-ATX Motherboard is a premium and innovative choice that combines next-gen performance with a revolutionary cable-free design. It is ideal for users who want a clean-looking build without compromising on power, connectivity, and future-ready features.
