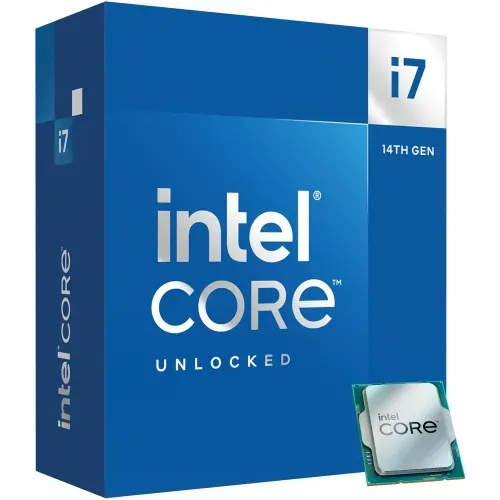

The Intel Core i7 14700K is a 14th Gen Raptor Lake Refresh desktop processor built on Intel's Intel 7 process technology. Designed for high-performance computing, gaming, content creation, and demanding professional workloads, this twenty-core, twenty-eight-thread unlocked processor delivers exceptional performance, improved power efficiency, and smooth multitasking for both professional and enthusiast users. Combining eight Performance Cores and twelve Efficient Cores with a maximum turbo frequency of 5.6 GHz, 33 MB of Intel Smart Cache, built-in Intel UHD Graphics 770, and full overclocking support, the Intel Core i7 14700K is a powerful and future-ready solution for high-end gaming builds, content creation setups, and advanced productivity workstations.

Performance and Architecture

Hybrid Core Design

The Intel Core i7 14700K features an improved hybrid core architecture with eight Performance Cores and twelve Efficient Cores, delivering twenty total cores and twenty-eight threads. Performance Cores operate at a base clock of 3.4 GHz and boost up to 5.5 GHz, while the Efficient Cores run at a base clock of 2.5 GHz and boost up to 4.3 GHz. The overall maximum turbo frequency reaches 5.6 GHz via Intel Turbo Boost Max Technology 3.0. Performance Cores are dedicated to demanding applications and high-end gaming, while Efficient Cores manage low-priority background workloads such as streaming video, playing music, and transcoding media, keeping the processor fast and thermally stable across all usage conditions.

Intel Thread Director

Intel Thread Director is built directly into the CPU cores and works alongside the operating system to dynamically and intelligently assign each of the twenty-eight threads to the most appropriate core at the right time. This results in consistently optimised performance and efficiency across all tasks without any manual configuration required from the user.

Intel Turbo Boost Max Technology 3.0 and Overclocking

The Intel Core i7 14700K supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, dynamically scaling clock speeds up to 5.6 GHz on the fastest Performance Core during demanding workloads. As a fully unlocked K-series processor, the Intel Core i7 14700K also supports manual overclocking for enthusiast users seeking additional performance beyond stock settings. With 33 MB of Intel Smart Cache, 28 MB of total L2 cache, a Processor Base Power of 125W, and a Maximum Turbo Power of 253W, this processor is built to handle the most demanding gaming, creative, and professional workloads with exceptional speed and stability.

Connectivity and Expansion

PCIe 4.0 and PCIe 5.0 Support

The Intel Core i7 14700K supports PCI Express 5.0 and 4.0 with a maximum of 20 PCIe lanes, configurable as 1×16+4 or 2×8+4. It also features DMI 4.0 with 8 lanes, providing excellent data throughput for NVMe SSDs, discrete graphics cards, and other high-speed peripheral devices. This ensures the system remains well connected and future-ready as hardware demands grow over time.

Memory Support

The Intel Core i7 14700K supports dual-channel DDR5 at up to 5600 MT/s and DDR4 at up to 3200 MT/s across two memory channels, with a maximum capacity of 192 GB and a maximum memory bandwidth of 89.6 GB/s. ECC memory is also supported, providing additional reliability for professional and workstation use cases.

Integrated Graphics

The Intel Core i7 14700K includes Intel UHD Graphics 770 with 32 Execution Units, a base frequency of 300 MHz, and a maximum dynamic frequency of 1.6 GHz. It supports up to four simultaneous displays with a maximum resolution of 4096×2160 at 60Hz via HDMI 2.1, 7680×4320 at 60Hz via DisplayPort 1.4a, and 5120×3200 at 120Hz via integrated eDP 1.4b. It also supports DirectX 12, OpenGL 4.5, OpenCL 3.0, Intel Quick Sync Video, and Intel Clear Video HD Technology, making it capable of handling everyday visual tasks and multi-monitor productivity setups without a dedicated graphics card. For maximum gaming and rendering performance, a discrete graphics card is recommended.

Gaussian and Neural Accelerator 3.0

The Intel Core i7 14700K features built-in Intel Gaussian and Neural Accelerator 3.0 (GNA 3.0), which offloads AI-driven tasks from the main processor cores. It delivers real-time noise reduction and background blur during video conferencing, alongside support for Intel Deep Learning Boost (DL Boost) on the CPU for accelerated AI inference workloads.

Supported Technologies

The Intel Core i7 14700K supports a comprehensive set of modern Intel technologies including Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, Intel Hyper-Threading, Intel Thread Director, Intel Gaussian and Neural Accelerator 3.0, Intel Deep Learning Boost, Intel Speed Shift Technology, Intel Virtualization Technology (VT-x with Extended Page Tables), Intel Virtualization Technology for Directed I/O (VT-d), Intel Virtualization Technology with Redirect Protection (VT-rp), Enhanced Intel SpeedStep Technology, Intel Volume Management Device (VMD), Intel SSE4.1, SSE4.2, and AVX2 instruction set extensions, and Intel 64-bit architecture support.

Security and Reliability

The Intel Core i7 14700K is eligible for Intel vPro Enterprise, Intel vPro Essentials, and Intel vPro Platform, and includes Intel Active Management Technology (AMT), Intel Threat Detection Technology (TDT), Intel Hardware Shield, Intel Trusted Execution Technology, Intel Total Memory Encryption Multi-Key, Intel AES New Instructions, Intel Control-Flow Enforcement Technology, Intel Boot Guard, Intel OS Guard, Intel Secure Key, Intel One-Click Recovery, Intel Remote Platform Erase, and Execute Disable Bit, providing enterprise-grade security and manageability for professional deployments.

Motherboard Compatibility

The Intel Core i7 14700K uses the LGA 1700 socket and is compatible with Intel 600 and 700 series motherboards including B660, B760, Z690, and Z790 chipsets. For full overclocking capability, a Z-series motherboard such as Z690 or Z790 is strongly recommended. It supports both DDR4 and DDR5 memory up to 192 GB, with a maximum operating temperature of 100°C and a package size of 45.0 mm × 37.5 mm.

Recommended Use Cases

The Intel Core i7 14700K is well suited for high-end gaming PC builds requiring top-tier single-core and multi-core performance with full overclocking headroom. Content creators will benefit from its twenty cores and twenty-eight threads when handling video editing, 3D rendering, and media production workflows. It serves as a highly capable streaming and recording setup with enough processing headroom to handle gameplay and encoding simultaneously. Professional workstation users will appreciate its ECC memory support, vPro eligibility, enterprise-grade security features, and overclocking potential. With its unlocked multiplier, powerful Raptor Lake Refresh hybrid architecture, and a maximum turbo clock of 5.6 GHz, the Intel Core i7 14700K is designed for power users who demand the very best from their desktop system.
