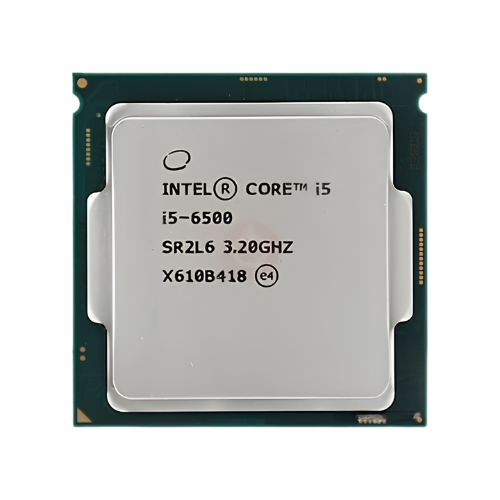

Intel Core i5 6500 6th Gen Tray Processor

Intel Core i5 6500 6th Gen Tray Processor

The Intel Core i5 6500 is a reliable 6th Generation Skylake desktop processor built on Intel's 14nm process technology. Designed for everyday computing, office productivity, business workflows, and entry-level gaming, this quad-core processor delivers stable and consistent performance for home and professional users. As a Tray version, the Intel Core i5 6500 is supplied as a bare CPU only — no fan or cooler is included — making it an excellent budget-friendly option for builders who already have a compatible LGA 1151 cooling solution and want solid computing performance at a reduced price point. With built-in Intel HD Graphics 530, it allows users to run a complete system without immediately requiring a dedicated graphics card. Available in Bangladesh from Softlink Computer BD.

Performance and Architecture

Core and Thread Configuration

The Intel Core i5 6500 features four physical CPU cores and four threads, operating at a stable base clock speed of 3.2 GHz and dynamically accelerating up to a maximum turbo frequency of 3.6 GHz via Intel Turbo Boost Technology 2.0. With 6 MB of Intel Smart Cache, a bus speed of 8 GT/s, and a Thermal Design Power (TDP) of 65W, the Intel Core i5 6500 strikes an ideal balance between power efficiency and consistent processing performance suited to all everyday computing workloads.

Intel Turbo Boost Technology 2.0

The Intel Core i5 6500 dynamically adjusts its clock speed up to 3.6 GHz during demanding workloads via Intel Turbo Boost Technology 2.0, then steps back during lighter tasks to conserve power and reduce heat. This keeps the system snappy, responsive, and thermally efficient throughout the day across all usage scenarios from light office tasks to more intensive applications.

Connectivity and Expansion

PCIe 3.0 Support

The Intel Core i5 6500 supports PCI Express 3.0 with up to 16 PCIe lanes, configurable as 1×16, 2×8, or 1×8+2×4. This provides high-bandwidth connectivity for dedicated graphics cards, NVMe solid-state drives, and other high-speed expansion devices compatible with PCIe 3.0.

Memory Support

The Intel Core i5 6500 supports dual-channel DDR4 memory at speeds up to 2133 MHz and low-voltage DDR3L memory at up to 1600 MHz at 1.35V, with a maximum system memory capacity of 64 GB across two memory channels, offering a wide range of build configurations suited to both budget and performance-oriented systems.

Integrated Graphics

The Intel Core i5 6500 includes Intel HD Graphics 530, providing reliable built-in visual output for everyday use including multi-monitor workstations, HD and 4K media consumption, and basic graphical tasks without requiring a dedicated graphics card. It supports a maximum resolution of 4096×2304 at 60Hz via DisplayPort 1.2 and up to 4096×2160 at 24Hz via HDMI 1.4, with full support for DirectX 12, OpenGL 4.4, Intel Quick Sync Video, and Intel Clear Video HD Technology.

Supported Technologies

The Intel Core i5 6500 supports a comprehensive set of Intel platform technologies including Intel Turbo Boost Technology 2.0, Intel Virtualization Technology (VT-x with Extended Page Tables), Intel Virtualization Technology for Directed I/O (VT-d), Enhanced Intel SpeedStep Technology, Intel Optane Memory Support, Intel Identity Protection Technology, Intel AES New Instructions, Intel OS Guard, Intel Trusted Execution Technology, Intel Boot Guard, Execute Disable Bit, and Intel 64-bit architecture with SSE4.1, SSE4.2, and AVX2 instruction set extensions.

Motherboard Compatibility

The Intel Core i5 6500 uses the LGA 1151 (FCLGA1151) socket and is compatible with Intel 100 and 200 series motherboards including H110, B150, H170, Q150, Q170, and Z170 chipsets. It supports both DDR4 and DDR3L memory up to 64 GB across two memory channels. As a Tray processor, no thermal solution is included — a compatible third-party cooler for the LGA 1151 socket is required before installing and operating this processor.

Recommended Use Cases

The Intel Core i5 6500 is well suited for budget-friendly custom desktop builds requiring reliable and stable quad-core performance. It handles office and business workstation tasks including documents, spreadsheets, email, and video calls efficiently. For students and home users, it manages web browsing, HD media consumption, online classes, and general productivity with ease. When paired with a basic discrete GPU, it delivers smooth performance for entry-level esports gaming and light game titles. As a Tray processor sold as a bare CPU unit, it is particularly well suited for system builders, integrators, and users who want maximum value from a proven Skylake platform with their own existing LGA 1151 cooling solution.

Buy Intel Core i5 6500 6th Gen Tray Processor in Bangladesh

The Intel Core i5 6500 6th Gen Skylake Tray Processor is available in Bangladesh from Softlink Computer BD, one of the country's trusted computer hardware retailers. Browse the full range of Intel Processors or explore complete Desktop PC solutions. Orders can be placed online or in person at the nearest Softlink Computer BD showroom.

Please Note: This is a Tray version CPU supplied without a fan or cooler. The Intel Core i5 6500 Tray Processor comes with a 1-Week Test Warranty only. No fan or cooler is included with this product.
