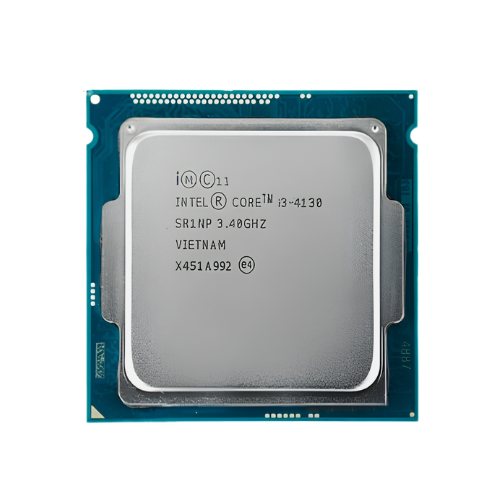

Intel Core i3-4130 4th Gen Tray Processor

Intel Core i3 4130 4th Gen Tray Processor

The Intel Core i3 4130 is a reliable 4th Generation Haswell desktop processor built on Intel's 22nm process technology. Designed for everyday computing, office productivity, and basic home use, this dual-core processor with Intel Hyper-Threading delivers four threads of processing power for smooth everyday multitasking. As a Tray version, the Intel Core i3 4130 is supplied as a bare CPU only — no fan or cooler is included — making it a budget-friendly option for builders who already have a compatible LGA 1150 cooling solution. A key distinction of the Intel Core i3 4130 is its fixed base frequency of 3.4 GHz with no Turbo Boost Technology, keeping performance predictable and consistent at all times. With built-in Intel HD Graphics 4400, it allows users to run a complete system without requiring a dedicated graphics card. Available in Bangladesh from Softlink Computer BD.

Performance and Architecture

Core and Thread Configuration

The Intel Core i3 4130 features two physical CPU cores and four threads with Intel Hyper-Threading Technology enabled, allowing each core to handle two threads simultaneously for smoother multitasking performance. It operates at a fixed base frequency of 3.4 GHz with no Intel Turbo Boost Technology support, delivering consistent and predictable clock speed performance at all times. With 3 MB of Intel Smart Cache, a bus speed of 5 GT/s, and a Thermal Design Power (TDP) of 54W, the Intel Core i3 4130 is a power-efficient and stable processor well suited for light to moderate everyday computing workloads.

Intel Hyper-Threading Technology

With Intel Hyper-Threading, each of the two physical cores handles two threads simultaneously, delivering four total threads of processing power. This improves multitasking responsiveness, enabling the system to manage multiple everyday applications, browser tabs, and background processes more smoothly than a non-Hyper-Threading processor with the same core count.

Connectivity and Expansion

PCIe 3.0 Support

The Intel Core i3 4130 supports PCI Express 3.0 with a maximum of 16 PCIe lanes, configurable as 1×16, 2×8, or 1×8+2×4. This provides reliable bandwidth for dedicated graphics cards, NVMe solid-state drives, and other expansion devices compatible with PCIe 3.0 across supported LGA 1150 motherboards.

Memory Support

The Intel Core i3 4130 supports dual-channel DDR3-1333/1600 and DDR3L-1333/1600 memory at 1.5V across two memory channels, with a maximum system memory capacity of 32 GB and a maximum memory bandwidth of 25.6 GB/s. ECC memory is also supported with compatible motherboards, providing additional reliability for professional and business deployments. This provides a stable memory configuration for a wide range of budget desktop build configurations on the LGA 1150 platform.

Integrated Graphics

The Intel Core i3 4130 includes Intel HD Graphics 4400 with a base frequency of 350 MHz and a maximum dynamic frequency of 1.15 GHz, supporting up to 2 GB of shared video memory. It supports up to three simultaneous displays with a maximum resolution of 4096×2304 at 24Hz via HDMI, 3840×2160 at 60Hz via DisplayPort and eDP, and 1920×1200 at 60Hz via VGA, with full support for DirectX 11.1/12, OpenGL 4.3, Intel Quick Sync Video, Intel InTru 3D Technology, and Intel Clear Video HD Technology. This makes it suitable for multi-monitor office setups and everyday media use without the need for a dedicated graphics card.

Supported Technologies

The Intel Core i3 4130 supports a comprehensive set of Intel platform technologies including Intel Hyper-Threading Technology, Intel Virtualization Technology (VT-x with Extended Page Tables), Enhanced Intel SpeedStep Technology, Intel AES New Instructions, Execute Disable Bit, Thermal Monitoring Technologies, Idle States, and Intel 64-bit architecture with SSE4.1, SSE4.2, and AVX2 instruction set extensions. Note that Intel Turbo Boost Technology, Intel VT-d, Intel Transactional Synchronization Extensions, Intel Trusted Execution Technology, and Intel SIPP are not supported on this processor.

Motherboard Compatibility

The Intel Core i3 4130 uses the LGA 1150 (FCLGA1150) socket and is compatible with Intel 8 and 9 series chipset motherboards including H81, B85, H87, H97, Z87, and Z97 chipsets. It supports DDR3 and DDR3L memory up to 32 GB across two memory channels, with a maximum case temperature (TCASE) of 72°C and a compact package size of 37.5 mm × 37.5 mm. As a Tray processor, no thermal solution is included — a compatible third-party LGA 1150 cooler is required before installing and operating this processor.

Recommended Use Cases

The Intel Core i3 4130 is well suited for budget-friendly custom desktop builds requiring stable and consistent dual-core performance for everyday tasks. It handles office and business workstation tasks including documents, spreadsheets, email, and video calls efficiently with its four Hyper-Threaded processing threads. For students and home users, it manages web browsing, HD media consumption, online classes, and general productivity with ease. Its ECC memory support and stable fixed 3.4 GHz clock speed also make it a dependable choice for light business and entry-level workstation deployments. As a Tray processor sold as a bare CPU unit, it is particularly well suited for system builders and users who want maximum value from the proven Haswell LGA 1150 platform with their own existing compatible cooling solution.

Buy Intel Core i3 4130 4th Gen Tray Processor in Bangladesh

The Intel Core i3 4130 4th Gen Haswell Tray Processor is available in Bangladesh from Softlink Computer BD, one of the country's trusted computer hardware retailers. Browse the full range of Intel Processors or explore complete Desktop PC solutions. Orders can be placed online or in person at the nearest Softlink Computer BD showroom.

Please Note: This is a Tray version CPU supplied without a fan or cooler. The Intel Core i3 4130 Tray Processor comes with a 1-Week Test Warranty only. No fan or cooler is included with this product.
