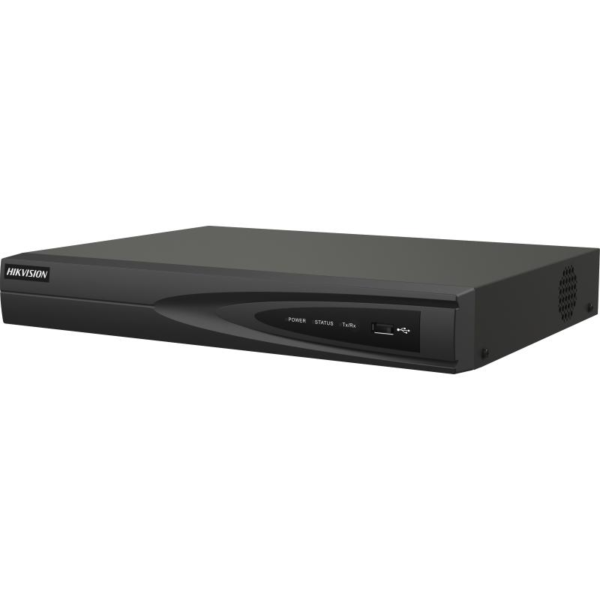

Hikvision DS-7616NI-Q1 16 Channel 4K NVR

Sale Price11,500৳
Regular Price12,000৳
StatusIn Stock
BrandHikvision

Key Features

  • Model: Hikvision DS-7616NI-Q1
  • Video output at up to 4K (3840 × 2160) resolution
  • Up to 16 IP cameras can be connected
  • H.265+/H.265/H.264/H.264+
  • HDMI and VGA independent outputs
  • Warranty: 1 Year manufacturer warranty
View More Info
11,500৳

Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.

Specification

General

BrandHikvision
ModelDS-7616NI-Q1
Product TypeNVR (Network Video Recorder)
Recorder TypeNVR
SeriesQ Series (Value Express)
Channel16-Channel
Camera CompatibilityIP Cameras Only
IP Video Input16-Channel, up to 8 MP (4K) resolution
Operating SystemEmbedded Linux
Mobile AppHik-Connect
Country of OriginChina

Audio & Video

Video CompressionH.265+/H.265/H.264+/H.264
IP Video Input Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Input1-channel, RCA (2.0 Vp-p, 1 KΩ) and supports digital IP camera audio input integration
Audio Output1-channel, RCA (Linear, 1 KΩ)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Two-way AudioYes (using the RCA audio input and output ports)
Incoming Bandwidth160 Mbps
Outgoing Bandwidth80 Mbps

Display (Resolution)

HDMI Output1-Channel
HDMI Resolution1-Channel, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-Channel
VGA Resolution1-Channel, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Simultaneous OutputNo (Independent HDMI and VGA outputs)
Decoding Capability1-Channel @ 8 MP (30 fps) or 4-ch @ 1080p (30 fps)
Display ResolutionUp to 4K UHD Ultra HD

Recording & Smart Analytics

Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Recording ModeContinuous, Motion Detection, Scheduled, Smart Event
Synchronous Playback16-Channel
Smart Analytics (AI by NVR)N/A
Smart Analytics (AI by Camera)Supports compatible IP camera smart events (e.g., line crossing, intrusion detection, target classification)
Smart Search/PlaybackYes

Storage & Interface

SATA Interface1-SATA interface
Max HDD CapacityUp to 8 TB capacity
Total Storage Capacity8 TB
USB Port2 × USB 2.0 (Front and Rear panel)
Alarm Input/OutputN/A

Network & PoE

Network Port1, RJ-45 10M/100M/1000M self-adaptive Ethernet interface
PoE PortsNon-PoE
PoE InterfaceN/A
PoE Max PowerN/A
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
ONVIF CompatibilityYes (Supports third-party ONVIF network cameras)
Max Remote UsersUp to 64 users

Power

Power Supply12 VDC, 1.5 A
Power Consumption≤ 10 W (Without internal HDD installed)

Environmental

Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity10% to 90% (Non-condensing)
Storage Temperature-20 °C to 70 °C (-4 °F to 158 °F)

Construction

Chassis Type1U Casing
MaterialMetal structure with high-grade industrial cover
ColorBlack
Dimensions315 × 240 × 48 mm (12.4 × 9.4 × 1.9 inch)
Weight≤ 1.0 kg (2.2 lb, Without internal HDD installed)
HDD Bay1 Bay

Warranty

Warranty Details1-Year official manufacturer warranty covering structural parts and labor.
Warranty TermsThe warranty is void if physical damage, burns, short circuits, or unauthorized opening attempts are detected. Hard drives are sold separately.

Description

Hikvision DS-7616NI-Q1 16 Channel 4K NVR

The Hikvision DS-7616NI-Q1 is a 16-channel 4K NVR from Hikvision's economy Q-series, built for larger IP camera deployments such as multi-floor offices, retail chains, warehouses, and residential compounds that need wide coverage without stepping up to a higher-end enterprise series. With 4K output support and full 16-channel capacity, it's a practical middle-ground choice for businesses that have outgrown a 4- or 8-channel recorder but don't yet need the extra bays and processing power of a rack-mounted enterprise NVR.

Video Compression and Output Quality

The DS-7616NI-Q1 uses H.265+/H.265/H.264+/H.264 video compression, keeping storage requirements manageable even while recording from 16 channels at once. It provides video output at up to 4K (3840 × 2160) resolution, offering noticeably sharper local monitoring than the 1080p output typical of entry-level NVRs, which matters for control-room style setups where operators need to zoom into details on a large screen. It also includes independent HDMI and VGA outputs, meaning the two displays can show different content simultaneously rather than a mirrored feed, useful for splitting live view and playback across two screens.

IP Camera Compatibility

This NVR supports up to 16 IP camera channels, suitable for medium-to-large properties needing broad coverage from a single recorder, such as a full retail branch, a warehouse floor, or a gated community's common areas. As a dedicated NVR, it works exclusively with network cameras, so it should be paired with cameras from Softlink BD's IP Cameras range to build a fully compatible system, and being part of Hikvision's standard lineup, it is expected to support ONVIF for added flexibility with third-party cameras.

Remote Monitoring for Multi-Site Businesses

As with the rest of Hikvision's NVR range, the DS-7616NI-Q1 is built to work with the Hik-Connect mobile app and PC client, giving business owners and managers the ability to check on 16 camera feeds remotely without being on-site. For businesses running multiple branches, this kind of remote access is especially valuable for checking on staff activity, verifying incidents, or simply keeping an eye on operations from a head office.

Storage and Reliability

Running 16 channels continuously puts a considerably heavier load on storage than smaller NVR models, so pairing the DS-7616NI-Q1 with a dedicated surveillance-grade hard drive from Softlink BD's HDD collection is strongly recommended. Surveillance-rated drives are built to handle the constant read/write cycles of 24/7 recording across many channels, unlike standard desktop drives which tend to wear out faster under that kind of sustained workload.

Buy from Softlink BD

The Hikvision DS-7616NI-Q1 is available at Softlink Computers BD, along with the full range of NVR recorders and compatible IP cameras needed to build a complete 16-channel network-based surveillance system. This product comes with a 1-Year manufacturer warranty.

What is the price of Hikvision DS-7616NI-Q1 16 Channel 4K NVR in Bangladesh?

The latest price of Hikvision DS-7616NI-Q1 16 Channel 4K NVR in Bangladesh is 11,500৳ . You can buy the Hikvision DS-7616NI-Q1 16 Channel 4K NVR at best price from our website or visit any of our showrooms.

Have question about this product?

Ask your question and we will answer as soon as possible.

Similar Product

Hikvision DS-7716NXI-K4/VPro 16-Channel 1.5U AcuSeek K VPro NVR

Original price was: 49,000৳ .Current price is: 46,000৳ .

Hikvision DS-7632NXI-K2/VPro 32-Channel 2-SATA 1U AcuSeek K VPro NVR

Original price was: 38,000৳ .Current price is: 36,000৳ .

Hikvision DS-7608NXI-K1/VPro 8-Channel 1U AcuSeek K VPro NVR

Original price was: 19,500৳ .Current price is: 18,000৳ .

Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR

Original price was: 5,600৳ .Current price is: 5,200৳ .

Hikvision iDS-7216HUHI-M2/S 16 Channel AcuSense 4K Hybrid DVR

Original price was: 35,000৳ .Current price is: 28,500৳ .

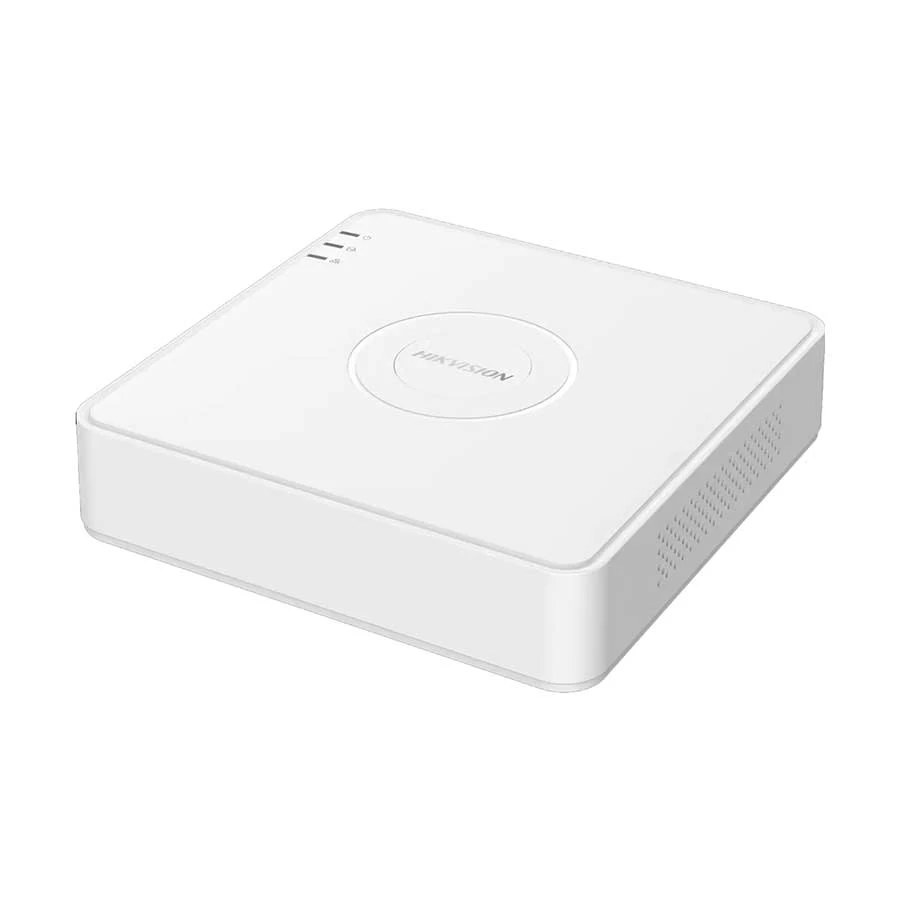

Hikvision iDS-7108HQHI-M1/S 8 Channel 1080P Mini 1U H.265 AcuSense DVR
