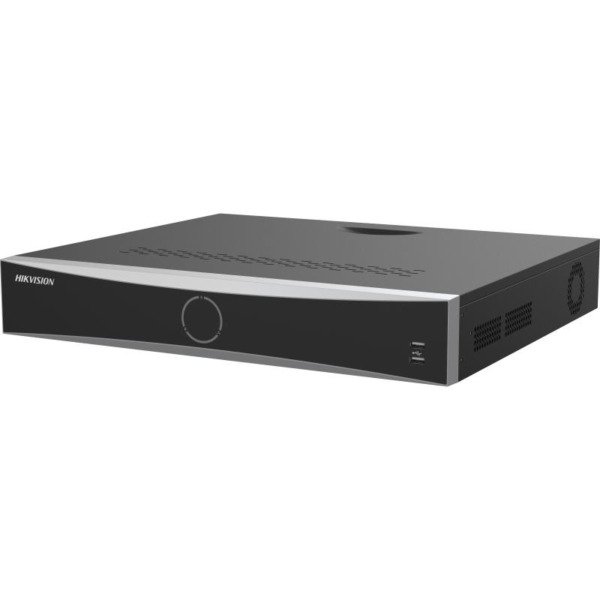

Hikvision DS-7716NXI-K4/VPro 16-Channel 1.5U AcuSeek K VPro NVR
Key Features
- Up to 16-ch AcuSeek and AcuSearch function
- Adopt Hikvision AcuSense technology to minimize manual effort and security costs
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- Up to 16-ch IP camera inputs
- Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 16-ch@2 MP decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 160 Mbps incoming bandwidth
- Warranty: 1 Year manufacturer warranty
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
General
| Brand | Hikvision |
| Model | DS-7716NXI-K4/VPro |
| Product Type | NVR (Network Video Recorder) |
| Recorder Type | NVR |
| Series | K Series (AcuSeek K VPro) |
| Channel | 16-Channel |
| Camera Compatibility | IP Cameras Only |
| IP Video Input | 16-Channel, up to 12 MP resolution |
| Operating System | Embedded Linux |
| Mobile App | Hik-Connect |
| Country of Origin | China |
Audio & Video
| Video Compression | H.265+/H.265/H.264+/H.264 |
| IP Video Input Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Input | 1-channel, RCA (2.0 Vp-p, 1 KΩ) and supports digital IP camera audio input integration |
| Audio Output | 1-channel, RCA (Linear, 1 KΩ) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Two-way Audio | 1-Channel, RCA (2.0 Vp-p, 1 kΩ, using the audio input) |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
Display (Resolution)
| HDMI Output | 1-Channel |
| HDMI Resolution | 1-Channel, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz |
| VGA Output | 1-Channel |
| VGA Resolution | 1-Channel, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz |
| Simultaneous Output | No (HDMI and VGA independent outputs) |
| Decoding Capability | 12-Channel @ 1080p (30 fps) | AI off: 16-Channel @ 1080p (30 fps) (Supports up to 4-Channel @ 12 MP, 6-Channel @ 8 MP, 12-Channel @ 4 MP, or 16-Channel @ 1080p) |
| Display Resolution | Up to 4K UHD Ultra HD |
Recording & Smart Analytics
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Recording Mode | Continuous, Motion Detection, Scheduled, Smart Event |
| Synchronous Playback | 16-Channel |
| Smart Analytics (AI by NVR) | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
| Smart Analytics (AI by Camera) | Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA, throwing objects from building |
| Smart Search/Playback | Yes |
Storage & Interface
| SATA Interface | 4-SATA interface |
| Max HDD Capacity | Up to 16 TB capacity for each HDD |
| Total Storage Capacity | Up to 64 TB |
| USB Port | 2 × USB ports (Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm Input/Output | 16 Inputs / 4 Outputs |
Network & PoE
| Network Port | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| PoE Ports | Non-PoE |
| PoE Interface | N/A |
| PoE Max Power | N/A |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| ONVIF Compatibility | Yes (Supports third-party ONVIF network cameras) |
| Max Remote Users | Up to 128 connections |
Power
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Power Consumption | ≤ 20 W (Without internal HDDs installed) |
Environmental
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
Construction
| Chassis Type | 1.5U Casing |
| Material | Metal structure with high-grade industrial cover |
| Color | Black |
| Dimensions | 445 × 400 × 75 mm (17.5 × 15.7 × 3.0 inch) |
| Weight | ≤ 5.0 kg (11.0 lb, Without internal HDDs installed) |
| HDD Bay | 4 Bays |
Warranty
| Warranty Details | 1-Year official manufacturer warranty covering structural parts and labor. |
| Warranty Terms | The warranty is void if physical damage, burns, short circuits, or unauthorized opening attempts are detected. Hard drives are sold separately. |
Description
Hikvision DS-7716NXI-K4/VPro 16-Channel 1.5U AcuSeek K VPro NVR
The Hikvision DS-7716NXI-K4/VPro is a 16-channel AcuSense NVR built for businesses that need smarter search tools along with more onboard storage capacity than standard 1U models. Part of Hikvision's K VPro series, its 1.5U chassis provides room for 4 hard drives while adding AcuSeek and AcuSearch capabilities on top of standard AcuSense analytics, making it easier to locate specific footage quickly.
Video Compression and Bandwidth
The DS-7716NXI-K4/VPro uses H.265+/H.265/H.264+/H.264 video compression to keep footage storage-efficient while supporting sharp, high-resolution recording. It handles up to 160 Mbps incoming bandwidth, with decoding capacity of up to 4-ch @ 12 MP, 6-ch @ 8 MP, 12-ch @ 4 MP, or 16-ch @ 2 MP, giving strong headroom to record from all 16 IP camera channels smoothly.
AcuSense, AcuSeek and AI Features
This NVR comes with Hikvision AcuSense technology, using deep learning algorithms to filter out false alarms triggered by animals, leaves, or moving shadows, focusing only on real human and vehicle events. Its AcuSeek and AcuSearch functions make footage retrieval faster, while accurate perimeter protection helps reduce false alarms and automatic camera connection simplifies setup.
IP Camera Compatibility
This NVR supports up to 16 IP camera channels, making it suitable for retail stores, offices, warehouses, or mid-sized commercial sites that need dependable coverage. As a dedicated NVR, it works exclusively with network cameras, so it should be paired with cameras from Softlink BD's IP Cameras range to build a fully compatible system.
Storage and Reliability
The DS-7716NXI-K4/VPro includes 4 SATA interfaces, each supporting hard drives up to 10 TB, giving significant headroom for extended continuous recording across all 16 channels. Pairing it with dedicated surveillance-grade drives from Softlink BD's HDD collection is recommended to make full use of this storage capacity for reliable 24/7 recording.
Buy from Softlink BD
The Hikvision DS-7716NXI-K4/VPro is available at Softlink Computers BD, along with the full range of NVR recorders and compatible IP cameras needed to build a complete network-based surveillance system. This product comes with a 1-Year manufacturer warranty.
What is the price of Hikvision DS-7716NXI-K4/VPro 16-Channel 1.5U AcuSeek K VPro NVR in Bangladesh?
