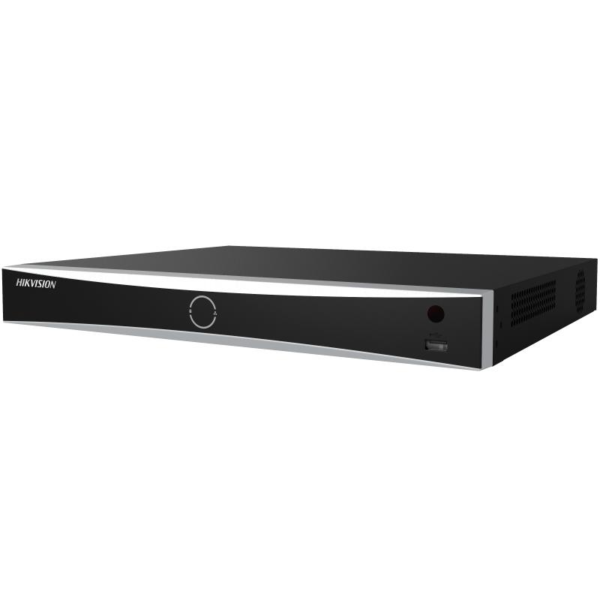

Hikvision DS-7632NXI-K2 AcuSense 32-Channel 4K NVR
Key Features
- Model: DS-7632NXI-K2
- Channel: 32
- Capacity: Up to 10 TB Capacity for Each HDD
- Interface: 1x RJ-45, Front: 1x USB 2.0; Rear: 1x USB 3.0
- Features: Two-Way Audio, Facial Recognition
- Warranty: 1 Year manufacturer warranty
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
General
| Brand | Hikvision |
| Model | DS-7632NXI-K2 |
| Product Type | NVR (Network Video Recorder) |
| Recorder Type | NVR |
| Series | Pro Series with AcuSense |
| Channel | 32-Channel |
| Camera Compatibility | IP Cameras Only |
| IP Video Input | 32-Channel, up to 12 MP resolution |
| Operating System | Embedded Linux |
| Mobile App | Hik-Connect |
| Country of Origin | China |
Audio & Video
| Video Compression | H.265+/H.265/H.264+/H.264 |
| IP Video Input Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Input | 1-channel, RCA (2.0 Vp-p, 1 KΩ) and supports digital IP camera audio input integration |
| Audio Output | 1-channel, RCA (Linear, 1 KΩ) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Two-way Audio | Yes (1-ch, RCA, Linear, 1 KΩ) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 160 Mbps |
Display (Resolution)
| HDMI Output | 1-Channel |
| HDMI Resolution | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1-Channel |
| VGA Resolution | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Simultaneous Output | HDMI/VGA independent output |
| Decoding Capability | AI On: 2-ch@12 MP (30 fps) / 3-ch@8 MP (30 fps) / 6-ch@4 MP (30 fps) / 12-ch@1080p (30 fps); AI Off: 4-ch@12 MP (30 fps) / 6-ch@8 MP (30 fps) / 8-ch@4 MP (30 fps) / 16-ch@1080p (30 fps) |
| Display Resolution | Up to 4K UHD Ultra HD |
Recording & Smart Analytics
| Recording Resolution | Up to 12 MP |
| Recording Mode | Continuous / Motion Detection / Scheduled / Smart Event |
| Synchronous Playback | 16-channel |
| Smart Analytics (AI by NVR) | Facial Recognition, Perimeter Protection (Line crossing & Intrusion detection with human/vehicle classification), Motion Detection 2.0 |
| Smart Analytics (AI by Camera) | Facial recognition, perimeter protection, video content analytics (VCA), ANPR, throwing objects from buildings |
| Smart Search/Playback | Yes |
Storage & Interface
| SATA Interface | 2-SATA interface |
| Max HDD Capacity | Up to 10 TB capacity for each HDD |
| Total Storage Capacity | 20 TB |
| USB Port | 1 × USB 2.0; Rear panel: 1 × USB 3.0 (Note: Factory standard sheets list 1x Front USB 2.0 and 1x Rear USB 2.0 or 3.0 depending on regional hardware sub-revision D/K |
| Alarm Input/Output | 4 Inputs / 1 Output |
Network & PoE
| Network Port | 1, RJ-45 10M/100M/1000M self-adaptive Ethernet interface |
| PoE Ports | Non-PoE |
| PoE Interface | N/A |
| PoE Max Power | N/A |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| ONVIF Compatibility | Yes (Profile S, G); ISAPI, SDK |
| Max Remote Users | Up to 128 users |
Power
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 15 W (Without internal HDD installed) |
Environmental
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
Construction
| Chassis Type | 1U Casing |
| Material | Professional industrial metal chassis structure |
| Color | Black |
| Dimensions | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch) |
| Weight | ≤ 1.0 kg (2.2 lb, Without internal HDD installed) |
| HDD Bay | 2 Bay |
Warranty
| Warranty Details | 1-Year official manufacturer warranty covering structural parts and labor. |
| Warranty Terms | The warranty is void if physical damage, burns, short circuits, or unauthorized opening attempts are detected. Hard drives are sold separately. |
Description
Hikvision DS-7632NXI-K2 AcuSense 32-Channel 4K NVR
The Hikvision DS-7632NXI-K2 is a 32-channel AcuSense NVR built for larger properties, businesses, and commercial sites that need to manage a high number of cameras with smarter, AI-assisted monitoring. As part of Hikvision's EasyIP 4.0 Series, it combines high channel capacity with deep learning-based analytics, making it a strong choice for warehouses, factories, retail chains, or multi-building offices.
Video Compression and Bandwidth
The DS-7632NXI-K2 uses H.265+/H.265/H.264+/H.264 video compression to keep footage storage-efficient while supporting sharp, high-resolution recording. It handles up to 256 Mbps incoming bandwidth, with decoding capacity of up to 12 MP, giving strong headroom to record from all 32 IP camera channels at once without performance loss.
AcuSense and AI Features
This NVR comes with Hikvision AcuSense technology, using deep learning algorithms to filter out false alarms triggered by animals, leaves, or moving shadows, focusing only on real human and vehicle events. It also supports facial recognition, allowing face capture, face comparison, and searchable face picture libraries, along with two-way audio for real-time communication through connected cameras.
IP Camera Compatibility
This NVR supports up to 32 IP camera channels, making it suitable for large-scale surveillance projects that need extensive coverage across multiple zones. As a dedicated NVR, it works exclusively with network cameras, so it should be paired with cameras from Softlink BD's IP Cameras range to build a fully compatible system.
Storage and Reliability
The DS-7632NXI-K2 includes 2 SATA interfaces, each supporting hard drives up to 10 TB, giving substantial headroom for extended continuous recording across all 32 channels. Pairing it with dedicated surveillance-grade drives from Softlink BD's HDD collection is recommended to make full use of this storage capacity for reliable 24/7 recording.
Buy from Softlink BD
The Hikvision DS-7632NXI-K2 is available at Softlink Computers BD, along with the full range of NVR recorders and compatible IP cameras needed to build a complete network-based surveillance system. This product comes with a 1-Year manufacturer warranty.
What is the price of Hikvision DS-7632NXI-K2 AcuSense 32-Channel 4K NVR in Bangladesh?
