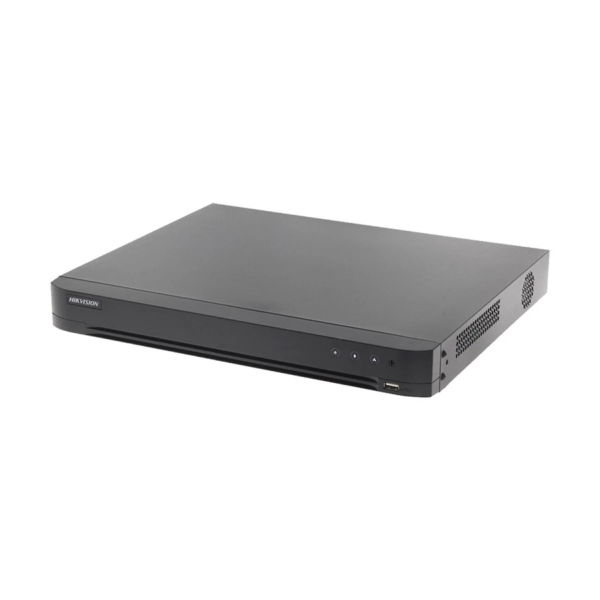

Hikvision DS-7232HGHI-M2 32 Channel HD 720p DVR

Hikvision DS-7232HGHI-M2 32 Channel HD 720p DVR

The Hikvision DS-7232HGHI-M2 is a 32-channel Turbo HD DVR from Hikvision's Value Series, built for large-scale deployments such as factories, gated communities, commercial complexes, and multi-branch businesses that need extensive camera coverage from one central recorder. With dual HDD bays, gigabit networking, and 4K display output, this model steps up considerably from the smaller 4/8/16-channel units and is positioned for installations where both scale and long-term reliability matter.

Video Compression and Recording Performance

The DS-7232HGHI-M2 uses H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression to keep bandwidth and storage demands under control even with 32 channels active simultaneously. Recording resolutions go up to 1080p Lite and 720p, with continuous, motion-detection, scheduled, and smart-event recording modes available. Deep learning-based Motion Detection 2.0 applies human and vehicle classification across all analog channels, and Smart Search lets operators filter playback footage specifically by human or vehicle activity, which is especially useful when reviewing footage across dozens of cameras.

Multi-Format Camera Compatibility

Built on a 5-in-1 hybrid design, this DVR supports HDTVI, AHD, HDCVI, CVBS, and IP cameras across its 32 channels, with 2 IP camera channels available by default and up to 34-ch total IP camera input (up to 5MP resolution) by converting analog channels. It also supports HDTVI signal transmission up to 1200 meters, making it well suited for large properties where cameras are spread across long cable runs. All 32 channels carry audio-over-coaxial support, with two-way audio available on the first channel.

Network Access and Remote Monitoring

Unlike the smaller DVR models, the DS-7232HGHI-M2 uses a gigabit RJ45 10/100/1000 Mbps Ethernet port, giving it more headroom for streaming multiple channels remotely without bottlenecking. It works with the Hik-Connect app for remote viewing, is ONVIF-compliant, and supports P2P cloud access along with protocols such as DDNS, SMTP, NFS, and iSCSI. Up to 128 remote users can connect simultaneously, matching the scale of the recorder itself for larger teams or multi-site monitoring.

Display, Storage, Playback and Backup

This model outputs up to 4K Ultra HD via HDMI, along with a dedicated VGA output and a BNC CVBS output, giving more flexibility for control-room style monitoring setups compared to the smaller DVR models. It includes 2 SATA interfaces, each supporting hard drives up to 10 TB, for a combined 20 TB of onboard storage capacity. Playback runs in 16-channel synchronous mode with smart playback, and backup is handled through a front USB 2.0 port, a rear USB 3.0 port, or over the network. For a 32-channel deployment running continuously, pairing this DVR with two surveillance-grade drives from Softlink BD's HDD collection is strongly recommended to handle the sustained write load.

Design and Power

The recorder ships in a 1U metal chassis with a plastic front panel, measuring 380 × 320 × 48 mm and weighing under 2.2 kg without hard drives installed. It runs on a 12 VDC, 5 A power supply and draws up to 40 W without drives, reflecting the higher processing load of handling 32 simultaneous channels. The black housing is rated for -10°C to 55°C operating temperatures, suitable for continuous indoor installation.

Buy from Softlink BD

The Hikvision DS-7232HGHI-M2 is available at Softlink Computers BD, along with the complete range of DVR recorders and compatible CCTV cameras needed to build a large-scale surveillance system. This product comes with a 1-Year manufacturer warranty covering structural parts and labor, with hard drives sold separately and not covered under the default DVR bundle warranty.
