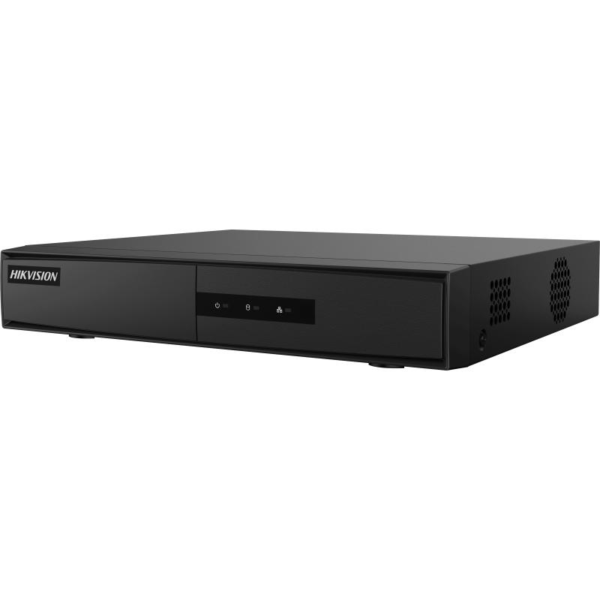

Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR

Name: Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR Price in BD | Softlink Computers
Brand: Hikvision
Price: 5200 BDT
Availability: InStock

Sale Price5,200৳

Regular Price5,600৳

StatusIn Stock

BrandHikvision

Key Features

Model: DS-7104NI-Q1/M
H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming & 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
HDMI and VGA simultaneous output
Warranty: 1 Year manufacturer warranty

View More Info

5,200৳

Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.

Specification Description Questions

Specification

General

Brand	Hikvision HiLook
Model	DS-7104NI-Q1/M
Product Type	NVR (Network Video Recorder)
Recorder Type	NVR
Series	HiLook Series
Channel	4-Channel
Camera Compatibility	IP Cameras
IP Video Input	4-ch, up to 4 MP resolution
Operating System	Embedded Linux
Mobile App	Hik-Connect
Country of Origin	China

Audio & Video

Video Compression	H.265+/H.265/H.264+/H.264
IP Video Input Resolution	4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Input	N/A (Supports digital IP camera audio input integration)
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Two-way Audio	N/A
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	60 Mbps

Display (Resolution)

HDMI Output	1-Channel
HDMI Resolution	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1-Channel
VGA Resolution	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Simultaneous Output	Yes (HDMI and VGA output simultaneously)
Decoding Capability	1-ch @ 4 MP (25 fps) or 2-ch @ 1080p (25 fps)
Display Resolution	Up to 1080p Full HD

Recording & Smart Analytics

Recording Resolution	4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Recording Mode	Continuous, Motion Detection, Scheduled, Smart Event
Synchronous Playback	4-ch
Smart Analytics (AI by NVR)	N/A
Smart Analytics (AI by Camera)	Supports compatible IP camera smart events (e.g., line crossing and intrusion detection)
Smart Search/Playback	Yes

Storage & Interface

SATA Interface	1-SATA interface
Max HDD Capacity	Up to 6 TB capacity
Total Storage Capacity	6 TB
USB Port	2 × USB 2.0 (Rear panel)
Alarm Input/Output	N/A

Network & PoE

Network Port	1, RJ-45 10M/100M self-adaptive Ethernet interface
PoE Ports	Non-PoE
PoE Interface	N/A
PoE Max Power	N/A
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
ONVIF Compatibility	Yes (Supports third-party ONVIF network cameras)
Max Remote Users	Up to 64 users

Power

Power Supply	12 VDC, 1.5 A
Power Consumption	≤ 10 W (Without internal HDD installed)

Environmental

Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	10% to 90% (Non-condensing)
Storage Temperature	-20 °C to 70 °C (-4 °F to 158 °F)

Construction

Chassis Type	Mini 1U Casing
Material	Metal structure with high-quality ABS cover
Color	Black
Dimensions	265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight	≤ 1.0 kg (2.2 lb, Without internal HDD installed)
HDD Bay	1 Bay

Warranty

Warranty Details	1-Year official manufacturer warranty covering structural parts and labor.
Warranty Terms	The warranty is void if physical damage, burns, short circuits, or unauthorized opening attempts are detected. Hard drives are sold separately.

Description

Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR

The Hikvision DS-7104NI-Q1/M is a 4-channel Network Video Recorder from Hikvision's economy Q-series, built for small homes, shops, and offices that need a simple, budget-friendly recorder for a fully IP-based camera setup. As a dedicated NVR, it works exclusively with IP cameras, offering a clean and straightforward entry point for anyone starting a new all-network surveillance system rather than migrating from analog.

Video Compression and Bandwidth

The DS-7104NI-Q1/M uses H.265+/H.265/H.264+/H.264 video compression to keep footage storage-efficient while maintaining recording quality across its 4 channels. It handles up to 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth, giving enough headroom to record from multiple IP cameras and stream live view or playback remotely without noticeable lag.

IP Camera Compatibility

This NVR supports up to 4 network camera channels, making it a compact fit for small properties such as a single-floor shop, home entrance points, or a small office covered by a handful of IP cameras. Since it's a pure NVR, only IP cameras are compatible with it, not analog HDTVI/AHD/CVI cameras, so it should be paired with cameras from Softlink BD's IP Cameras range when planning a new installation.

Display and Remote Access

The unit offers simultaneous HDMI and VGA output, allowing a monitor or TV to be connected for local live viewing while keeping a secondary display option available for setup or diagnostics. It also supports remote monitoring through the Hik-Connect app, giving access to live feeds and recorded footage from a smartphone or PC from any location.

Storage and Reliability

The DS-7104NI-Q1/M includes a SATA interface for internal hard drive installation. Pairing it with a dedicated surveillance-grade drive from Softlink BD's HDD collection ensures stable, uninterrupted recording for continuous 24/7 monitoring.

Buy from Softlink BD

The Hikvision DS-7104NI-Q1/M is available at Softlink Computers BD, along with the full range of NVR recorders and compatible IP cameras needed to build a complete network-based surveillance system. This product comes with a 1-Year manufacturer warranty.

What is the price of Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR in Bangladesh?

The latest price of Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR in Bangladesh is 5,200৳ . You can buy the Hikvision DS-7104NI-Q1/M 4 Channel Mini 1U NVR at best price from our website or visit any of our showrooms.
