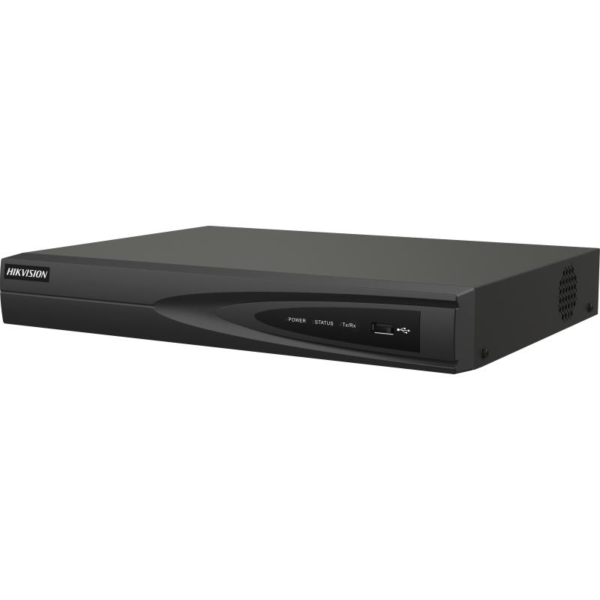

Hikvision DS-7608NI-Q1 8 Channel NVR
Key Features
- Model: Hikvision DS-7608NI-Q1
- H.265+/H.265/H.264/H.264+ video formats
- Up to 8 IP cameras can be connected
- DMI and VGA outputs
- 1 SATA interface connectable
- Warranty: 1 Year manufacturer warranty
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
General
| Brand | Hikvision HiLook |
| Model | DS-7608NI-Q1 |
| Product Type | NVR (Network Video Recorder) |
| Recorder Type | NVR |
| Series | Q Series (Value Express) |
| Channel | 8-Channel |
| Camera Compatibility | IP Cameras Only |
| IP Video Input | 8-Channel, up to 8 MP (4K) resolution |
| Operating System | Embedded Linux |
| Mobile App | Hik-Connect |
| Country of Origin | China |
Audio & Video
| Video Compression | H.265+/H.265/H.264+/H.264 |
| IP Video Input Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Input | 1-Channel, RCA (2.0 Vp-p, 1 KΩ) and supports digital IP camera audio input integration |
| Audio Output | 1-Channel, RCA (Linear, 1 KΩ) Audio Compression: G.711ulaw/G.711alaw/G.722/G.726 |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Two-way Audio | Yes (using the RCA audio input and output ports) |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
Display (Resolution)
| HDMI Output | 1-Channel |
| HDMI Resolution | 1-Channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-Channel |
| VGA Resolution | 1-Channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| Simultaneous Output | Yes (HDMI and VGA output simultaneously) |
| Decoding Capability | 1-Channel @ 8 MP (30 fps) or 5-ch @ 1080p (30 fps) (also supports up to 3-ch @ 4 MP 30fps) |
| Display Resolution | Up to 4K UHD Ultra HD |
Recording & Smart Analytics
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Recording Mode | Continuous, Motion Detection, Scheduled, Smart Event |
| Synchronous Playback | 8-Channel |
| Smart Analytics (AI by NVR) | 4-Channel Motion Detection 2.0 (intelligent human and vehicle target classification) |
| Smart Analytics (AI by Camera) | Supports compatible IP camera smart events (e.g., line crossing, intrusion detection, target classification) |
| Smart Search/Playback | Yes |
Storage & Interface
| SATA Interface | 1-SATA interface |
| Max HDD Capacity | Up to 8 TB capacity (Some legacy batches list 6TB max, newer revisions support up to 8TB) |
| Total Storage Capacity | 8 TB |
| USB Port | 1 × USB 2.0 (Front panel) and 1 × USB 2.0 (Rear panel) |
| Alarm Input/Output | (N/A for standard model; optional physical 4/1 on specific batch variants) |
Network & PoE
| Network Port | 1, RJ-45 10M/100M self-adaptive Ethernet interface |
| PoE Ports | Non-PoE |
| PoE Interface | N/A |
| PoE Max Power | N/A |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| ONVIF Compatibility | Yes (Supports third-party ONVIF network cameras) |
| Max Remote Users | Up to 64 users |
Power
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 10 W (Without internal HDD installed) |
Environmental
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
Construction
| Chassis Type | 1U Casing |
| Material | Professional industrial metal chassis structure |
| Color | Black |
| Dimensions | 320 × 240 × 48 mm (12.4 × 9.4 × 1.9 inch) |
| Weight | ≤ 1.0 kg (2.2 lb, Without internal HDD installed) |
| HDD Bay | 1 Bay |
Warranty
| Warranty Details | 1-Year official manufacturer warranty covering structural parts and labor. |
| Warranty Terms | The warranty is void if physical damage, burns, short circuits, or unauthorized opening attempts are detected. Hard drives are sold separately. |
Description
Hikvision DS-7608NI-Q1 8 Channel NVR
The Hikvision DS-7608NI-Q1 is an 8-channel network video recorder built for homes, shops, and small-to-medium offices that need to monitor more entry points without stepping up to a full enterprise system. Its compact 1U design makes it easy to fit into any setup while still delivering solid recording performance for up to 8 IP cameras.
Video Compression and Bandwidth
The DS-7608NI-Q1 uses H.265+/H.265/H.264+/H.264 video compression to keep footage storage-efficient while supporting sharp recording quality. It handles up to 80 Mbps incoming bandwidth, giving enough capacity to record from all 8 IP camera channels smoothly without straining the network.
IP Camera Compatibility
This NVR supports up to 8 IP camera channels, making it suitable for larger homes, retail shops, restaurants, or multi-room offices that need wider coverage. As a dedicated NVR, it works exclusively with network cameras, so it should be paired with cameras from Softlink BD's IP Cameras range to build a fully compatible system.
Display and Connectivity
The DS-7608NI-Q1 comes with both HDMI and VGA outputs, allowing flexible connection to monitors or displays depending on what's already available at the site — useful for both new installs and upgrades to existing setups.
Storage and Reliability
The DS-7608NI-Q1 includes 1 SATA interface supporting hard drives up to 8 TB, giving solid headroom for continuous recording. Pairing it with a dedicated surveillance-grade drive from Softlink BD's HDD collection is recommended to make full use of this storage capacity for reliable 24/7 recording.
Buy from Softlink BD
The Hikvision DS-7608NI-Q1 is available at Softlink Computers BD, along with the full range of NVR recorders and compatible IP cameras needed to build a complete network-based surveillance system. This product comes with a 1-Year manufacturer warranty.
