Name: Esonic H61DA DDR-3 Micro-ATX Motherboard - Softlink Computers
Brand: Esonic
Price: 2500 BDT
Availability: InStock

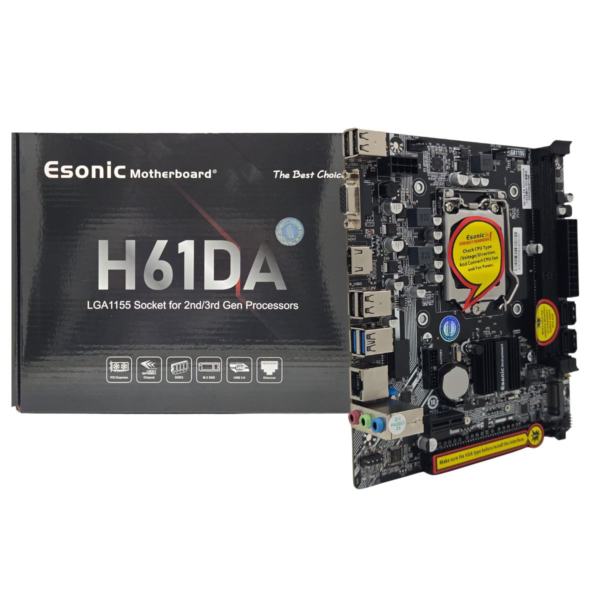

Esonic H61DA DDR-3 Micro-ATX Motherboard

Sale Price2,500৳

Regular Price3,000৳

StatusIn Stock

BrandEsonic

Key Features

Model: Esonic H61DA1
Intel Socket LGA1155 for 2nd/3rd Gen Core i7/ i5/i3 Processors
Memory Support DDR-3 1333/1600MHz
Storage- 4X SATA3.0 6Gb/s
M.2 Nvne PCIE-X16, PCIE-X1, SATA 3.0, USB 3.0
Warranty: 01-Year

View More Info

2,500৳

Specification

Basic Information

Supported CPU	Support Intel® Socket 1155 for 2nd/3rd Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H61 Chipset
Form Factor	Micro-ATX (19 cm X 17 cm) 4 mounting holes
Audio	Support Realtek® ALC662 High Definition Audio Optional Realtek® ALC897 High Definition Audio

Expansion Slots

PCI	1 PCI Express x16 slot 1 PCI Express x1 slot
M.2 & NVMe Socket	1 x M.2 Nvne Socket

Memory

Type	DDR3
Slots	2x DDR3 1066/1333MHz DIMM
Supported Memory	Supports DDR3 1066/1333/1600 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	Support 16GB Max.

Graphics

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI / VGA ports

Connector & Ports

HDMI	1x HDMI 2.1
VGA (s)	1x VGA port
USB (s)	4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)
LAN Port (s)	Support Realtek®RTL8106E 100M Optional Realtek®RT8111F 1000M
Supported Storage	1 x M.2 Nvne Socket, Supports 2242 SSD 4 x SATA 6Gb/s Ports
Audio	Realtek Chip, ALC 6-channel audio
Internal I/O Ports	Internal I/O Ports 1 x USB 19pin connector， supports 2USB 2.0 ports 1 x USB 2.0 connector， supports 2USB 2.0 ports 4 x SATA 3Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector 1 x DEBUG connector Back Panel I/O Ports 1HD MI port 1VGA port 1KB_MS port colay 2USB2.0 port 1AUDIO_JACK (line_in/line_out/mic_in) 1LAN port 4USB2.0 port On-Board Pinheaders / Connectors 1CPU_FAN 1COM 1AUTO_OPWR 1SPEAKER 1DEBUG 1F_USB2.0 1F_AUDIO 1CLR_CMOS 1F_USB3.0 1SYS_FAN 1F_PANEL

Others

Special Features

2x EZ Debug LED

Warranty Information

Manufacturing Warranty

01-Year

Description

Esonic H61DA DDR3 Micro-ATX Motherboard

The Esonic H61DA DDR3 Micro-ATX Motherboard is a dependable and cost-effective solution designed for users who need a stable Intel-based desktop PC at an entry-level price point. Built on the Intel H61 chipset, this motherboard supports Intel 2nd and 3rd Generation Core i7, Core i5, Core i3, Pentium, and Celeron processors using the LGA 1155 socket, making it a popular choice for budget office builds, home PCs, basic educational setups, and refurbished system configurations where affordability and reliability are the top priorities.

Memory Performance

The Esonic H61DA supports DDR3 dual-channel RAM up to 16GB at speeds of 1066MHz and 1333MHz, providing stable and consistent performance for everyday computing tasks. Whether you are handling office documents, browsing the web, playing standard media, or running basic software applications, the system delivers smooth and reliable performance for typical day-to-day usage. While DDR3 is an older memory standard, it remains fully capable of supporting the workloads this platform is designed for, keeping the overall build cost low without sacrificing stability.

Display and Graphics

The motherboard features integrated Intel HD Graphics support (depending on the installed CPU), allowing basic visual output for everyday use without the need for a dedicated graphics card. It includes both VGA and HDMI output ports, ensuring compatibility with a wide range of modern and legacy monitors. This makes the H61DA a practical and cost-saving choice for office workstations, school computer labs, and home setups where reliable display output is required without additional GPU expense.

Expansion and Upgrade Flexibility

The Esonic H61DA includes a PCIe x16 slot, allowing users to install a dedicated graphics card when improved visual performance is needed for gaming or professional applications. Multiple SATA ports are available for connecting HDDs and SSDs, enabling flexible and expandable storage configurations suited to a variety of user needs. This makes the board a practical long-term option even within its budget platform, allowing basic hardware upgrades as requirements grow over time.

Connectivity and Onboard Features

The H61DA covers all essential connectivity requirements with onboard Gigabit LAN for stable and reliable wired internet, USB 2.0 ports for connecting everyday peripherals, and standard audio jacks for basic multimedia sound output. The rear I/O panel provides all necessary ports to get a fully functional system running straight out of the box without the need for additional expansion cards or adapters.

Compact and Easy to Build

With its Micro-ATX form factor, the Esonic H61DA is compatible with a wide range of standard and compact desktop PC cases, offering good flexibility for different build environments. Its straightforward and clean board layout makes installation simple and accessible, whether you are a first-time builder, a school technician, or an experienced professional handling bulk refurbished system builds.
