Name: ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 19900 BDT
Availability: InStock

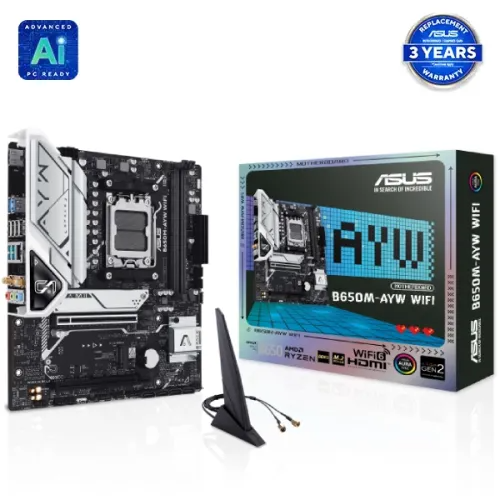

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

Sale Price19,900৳

Regular Price21,800৳

StatusIn Stock

BrandASUS

Key Features

Model: B650M-AYW WIFI
Supported CPU: Ryzen 9000 & 8000 & 7000 Series Processors for Socket AM5
Supported Memory: 2x DIMM slots, Max. 96GB DDR5, Up to 8000+MT/s (OC)
Graphics Output: 1 x HDMI port, Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: 1 x 2.5Gb LAN, WiFi 6, PCIe 5.0 slots, Two-Way AI Noise Cancelation
Warranty: 03-Years

View More Info

19,900৳

Specification

Basic Information

Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 & NVMe Socket	Total supports 2 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	96GB

Graphics

1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI	1 x HDMI
USB (s)	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	WiFi 6
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks
Internal I/O Ports	Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

The ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard is a reliable and modern motherboard designed for AMD’s AM5 platform, delivering strong performance, stable power delivery, and essential connectivity for everyday computing and gaming builds. Built on the AMD B650 chipset, it supports AMD Ryzen 7000 and 8000 series processors, making it a solid foundation for users seeking a future-ready AMD system.

This motherboard features DDR5 memory support with dual-channel architecture, enabling higher bandwidth and improved efficiency compared to previous DDR4 platforms. With support for high-speed memory configurations (OC dependent on CPU and RAM), it ensures smoother multitasking, faster application performance, and better responsiveness for both productivity and gaming workloads.

For expansion, the board includes a PCIe 4.0 x16 slot, providing stable support for modern graphics cards. Additional PCIe slots allow users to expand their system with add-on cards such as network adapters or storage controllers, offering flexibility for different build requirements.

Storage capabilities include M.2 PCIe Gen4 support for NVMe SSDs, allowing fast boot times, rapid file transfers, and improved system performance. SATA ports are also available for additional storage devices, making it suitable for both high-speed and high-capacity storage configurations.

Connectivity is a key advantage, featuring built-in WiFi and Gigabit LAN, ensuring stable and convenient network access for online gaming, streaming, and everyday internet usage. Integrated wireless connectivity reduces the need for additional adapters, simplifying system builds.

For display output, the motherboard includes HDMI and DisplayPort, supporting high-resolution displays when used with processors that feature integrated graphics. This makes it suitable for office setups, multimedia use, and multi-monitor configurations.

ASUS has designed this motherboard with durability and stability in mind, incorporating robust power design, effective cooling solutions, and high-quality components to ensure consistent performance under load. Features such as user-friendly BIOS and essential diagnostic tools make installation and system management easier for both beginners and experienced users.

Overall, the ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard is a balanced and dependable choice for users building a modern AMD-based PC, offering DDR5 performance, solid connectivity, and long-term upgrade potential in a compact form factor.
