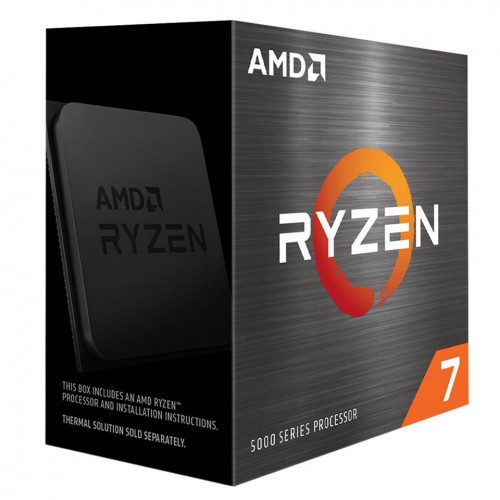

AMD Ryzen 7 5700X AM4 Processor

AMD Ryzen 7 5700X Processor

The AMD Ryzen 7 5700X is a high-performance desktop processor built on AMD's Zen 3 architecture using the TSMC 7nm FinFET process technology, codenamed Vermeer. Designed for advanced gaming, content creation, streaming, and heavy multitasking workloads, this eight-core, sixteen-thread processor delivers excellent single-core and multi-core performance for gamers, freelancers, and professionals who demand capable and reliable computing power. Unlike G-series APUs, the AMD Ryzen 7 5700X does not include integrated graphics and requires a dedicated graphics card for display output, making it a purpose-built performance CPU for GPU-based gaming rigs and professional workstations. With a base clock of 3.4 GHz, a boost clock of up to 4.6 GHz, a large 32 MB unified L3 cache, PCIe 4.0 support, a 65W TDP, and full overclocking capability, the AMD Ryzen 7 5700X offers outstanding price-to-performance for users in Bangladesh who want eight Zen 3 cores at an accessible mid-range price point.

Performance and Architecture

AMD Zen 3 Core Architecture

The AMD Ryzen 7 5700X is built on AMD's Zen 3 architecture — a ground-up redesign of the legendary Zen family equipped with end-to-end enhancements focused on single-core performance, energy efficiency, and reduced latencies. The Zen 3 architecture achieves an average of 19% additional performance from every MHz compared to the previous Zen 2 generation, representing the most comprehensive design overhaul of the Zen era. This makes the AMD Ryzen 7 5700X one of the fastest and most efficient eight-core processors available on the AM4 platform.

Vermeer Architecture and Dual-Die Design

The AMD Ryzen 7 5700X uses a two-die package design consisting of a 74mm² CPU Compute Die (CCD) manufactured on TSMC 7nm FinFET and a 125mm² I/O Die (IOD) manufactured on GlobalFoundries 12nm. This chiplet design provides superior memory controller performance, a large 32 MB L3 cache, and excellent sustained multi-core performance suited to demanding gaming and workstation workloads.

Unified Core Complex and Large L3 Cache

The AMD Ryzen 7 5700X transitions to a new unified core complex design that brings all eight cores and 32 MB of L3 cache into a single group of shared resources. This dramatically reduces core-to-core and core-to-cache latencies by making every element of the die a direct neighbour with minimal communication time. Latency-sensitive tasks like PC gaming especially benefit from this design change, as tasks now have direct access to twice as much L3 cache compared to the older Zen 2 architecture, resulting in faster frame times and more consistent gaming performance across all workload types.

Core and Thread Configuration

The AMD Ryzen 7 5700X features eight CPU cores and sixteen threads with AMD Simultaneous Multithreading (SMT), operating at a base clock of 3.4 GHz and boosting up to 4.6 GHz via AMD Precision Boost 2 Technology. It includes 512 KB of L1 cache, 4 MB of L2 cache, and 32 MB of unified L3 cache, providing ample cache capacity for efficient data processing and smooth performance across gaming, content creation, and heavy multitasking workloads.

AMD Precision Boost 2

The AMD Ryzen 7 5700X uses AMD Precision Boost 2, which dynamically adjusts CPU clock speeds on a per-thread basis in real time, maintaining higher sustained boost clocks across more active threads simultaneously. This delivers better real-world responsiveness and sustained performance during demanding workloads compared to previous generation boost technologies, ensuring the processor always operates at the highest clock speed safely possible.

Unlocked for Overclocking

As a fully unlocked processor, the AMD Ryzen 7 5700X supports manual overclocking through compatible AM4 motherboards using the AMD Ryzen Master Utility. This gives enthusiast users additional headroom to push performance beyond the default clock speeds, further maximising the outstanding value and performance of this eight-core Zen 3 processor.

Power Efficiency

The AMD Ryzen 7 5700X operates at a Default TDP of 65W, delivering exceptional eight-core performance within a highly efficient power envelope — notably lower than the 105W TDP of the previous generation Ryzen 7 3800X. This makes it compatible with a wide range of AM4 cooling solutions and build configurations.

Connectivity and Expansion

PCIe 4.0 Support

The AMD Ryzen 7 5700X supports PCI Express 4.0, providing twice the bandwidth of PCIe 3.0 for connecting the latest discrete graphics cards, PCIe 4.0 NVMe SSDs, and other high-speed compatible devices. For PCIe 4.0 support, an X570 or B550 motherboard is required. This future-ready connectivity ensures the system remains capable of leveraging next-generation hardware for years to come.

Memory Support

The AMD Ryzen 7 5700X supports dual-channel DDR4 memory across two memory channels with speeds up to 3200 MT/s and a maximum capacity of 128 GB. Higher memory speeds are achievable through overclocking on compatible motherboards, with faster DDR4 kits further improving gaming and application performance.

No Integrated Graphics

The AMD Ryzen 7 5700X does not include integrated graphics. A dedicated discrete graphics card is required for display output. This makes the AMD Ryzen 7 5700X the ideal choice for users who are investing in a dedicated GPU, allowing the full budget to be directed toward the best possible discrete graphics solution for maximum gaming and rendering performance.

AMD StoreMI Technology

The AMD Ryzen 7 5700X supports AMD StoreMI Technology, a powerful storage acceleration tool for desktop PC builds. StoreMI automatically pairs the most frequently used files with an SSD cache for peak performance, enabling HDD-based systems to achieve SSD-like speeds for boot times, load times, and file management. Simply adding an SSD to the system allows StoreMI to handle the rest automatically, improving overall system responsiveness without any complex manual configuration.

AMD VR Ready Premium

The AMD Ryzen 7 5700X is certified as AMD Ryzen VR Ready Premium, ensuring the processor meets the demanding performance requirements of modern virtual reality applications and headsets, delivering smooth, low-latency, and immersive VR experiences when paired with a compatible discrete GPU.

Supported Technologies

The AMD Ryzen 7 5700X supports a comprehensive set of AMD platform technologies including AMD Zen 3 Architecture, AMD Precision Boost 2, AMD Simultaneous Multithreading (SMT), AMD Virtualization Technology (AMD-V), AMD StoreMI Technology, AMD VR Ready Premium, AMD Ryzen Master Utility, and instruction set extensions including x86-64, AES, AVX, AVX2, FMA3, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, and MMX+. It is fully compatible with Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, and Ubuntu x86 64-bit operating systems.

Motherboard Compatibility

The AMD Ryzen 7 5700X uses the AM4 socket and is compatible with AMD 300, 400, and 500 series motherboards including A320, B350, B450, X370, X470, X570, A520, and B550 chipsets. Older motherboards may require a BIOS update for full compatibility and best stability. For PCIe 4.0 support, an X570 or B550 motherboard is required. Recommended motherboard options include MSI B450M PRO-VDH MAX, MSI B450M-A PRO MAX-II, MSI A520M-A PRO, MSI B550M PRO-VDH WIFI, MSI B550 TOMAHAWK, GIGABYTE B450M DS3H, GIGABYTE B550M DS3H, ASUS PRIME B450M-A II, ASUS PRIME B550M-K, and ASUS TUF GAMING B550-PLUS.

Recommended Use Cases

The AMD Ryzen 7 5700X is well suited for high-end gaming PC builds requiring strong eight-core, sixteen-thread performance at a competitive mid-range price point when paired with a dedicated graphics card. Content creators will benefit from its large 32 MB L3 cache and Zen 3 IPC advantage for video editing, photo editing, and rendering workflows. For streaming and heavy multitasking, its sixteen threads and efficient 65W TDP ensure smooth operation across all simultaneously active workloads without excessive heat or power draw. Freelancers and professional workstation users will appreciate its strong single-core and multi-core performance, PCIe 4.0 connectivity, and unlocked overclocking capability. With its Zen 3 architecture, massive 32 MB unified L3 cache, PCIe 4.0 support, VR Ready Premium certification, and broad AM4 platform compatibility, the AMD Ryzen 7 5700X delivers an outstanding combination of performance, efficiency, and value for users in Bangladesh who want a capable eight-core Zen 3 processor for their next GPU-based desktop build.

Buy AMD Ryzen 7 5700X in Bangladesh

The original AMD Ryzen 7 5700X AM4 Desktop Processor is available in Bangladesh from Softlink Computer BD, one of the country's trusted computer hardware retailers. Browse the full range of AMD Processors or explore complete Desktop PC solutions. Orders can be placed online or in person at the nearest Softlink Computer BD showroom. The AMD Ryzen 7 5700X is covered by a 3-Year Official Warranty (Fan and Cooler not included).
