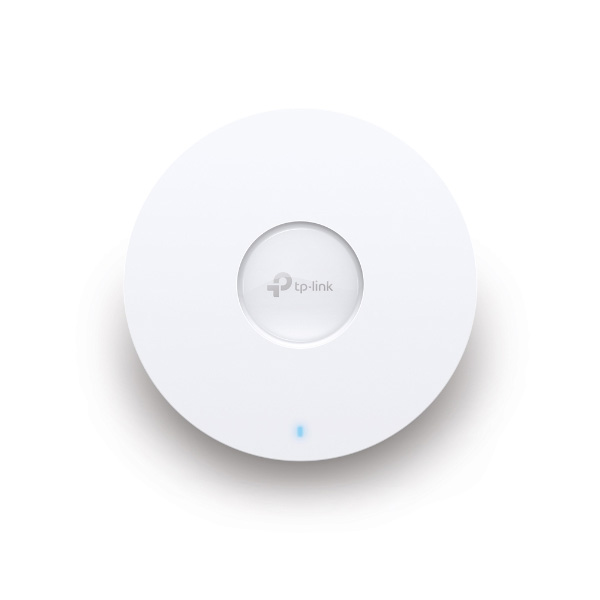

TP-Link Omada EAP660 HD AX3600 Dual-Band Multi-Gigabit Ceiling Mount Access Point
The TP-Link Omada EAP660 HD is a high-density AX3600 Dual-Band WiFi 6 access point engineered for busy commercial environments where large numbers of devices connect simultaneously. Designed for ceiling mounting, the EAP660 HD brings enterprise-grade multi-gigabit performance and advanced high-efficiency wireless technologies to offices, conference centers, and other spaces where consistent, high-capacity connectivity is critical.
Wireless Performance and High-Density Connectivity
The EAP660 HD delivers 8-stream dual-band WiFi 6 performance, reaching up to 2402 Mbps on the 5 GHz band and 1148 Mbps on the 2.4 GHz band, for a combined throughput of over 3.5 Gbps. Built with 4x4 MIMO antennas on both bands, the access point leverages core WiFi 6 technologies including OFDMA, uplink and downlink MU-MIMO, 1024-QAM, and longer OFDM symbols to boost network capacity by up to 4 times compared to WiFi 5, allowing it to efficiently manage over 1,000 concurrent client connections without sacrificing performance. With coverage of up to 1,500 square feet (140 square meters) per unit, the EAP660 HD is purpose-built for high-density environments such as busy offices, classrooms, and conference halls.
Port Configuration and Power Options
For wired connectivity, the EAP660 HD is equipped with a single 2.5 Gigabit Ethernet port, ensuring the wired uplink can fully support the access point's high wireless throughput without becoming a bottleneck. It supports standard 802.3at PoE for streamlined single-cable power and data delivery, as well as DC power as an alternative option, giving network installers flexibility depending on the deployment environment. This multi-gigabit port design allows the EAP660 HD to comfortably serve bandwidth-intensive applications across many simultaneous users.
Omada SDN and Centralized Management
The EAP660 HD integrates fully into TP-Link's Omada Software-Defined Networking (SDN) platform, enabling 100% centralized cloud management of access points, switches, and gateways from a single interface. It supports Zero-Touch Provisioning (ZTP), Omada Mesh, and Seamless Roaming, allowing users to move throughout a facility with uninterrupted connectivity for sensitive applications such as VoIP calls and video conferencing, while administrators benefit from intelligent monitoring and simplified network-wide configuration.
Ideal Use Cases
With its high client capacity, multi-gigabit connectivity, and advanced WiFi 6 efficiency features, the EAP660 HD is ideally suited for busy offices, conference centers, educational institutions, and other high-density commercial environments that require dependable wireless performance under heavy simultaneous usage.
Buy from Softlink BD
Looking for a high-density business access point? Browse our full range of Access Points at Softlink Computers BD, or explore our complete Networking category for switches, routers, and cabling to complete your setup. Pairing with a PoE switch? Check out our PoE Network Switch collection.
This product comes with 1-Year Official Manufacturer Warranty (adapter not included).
