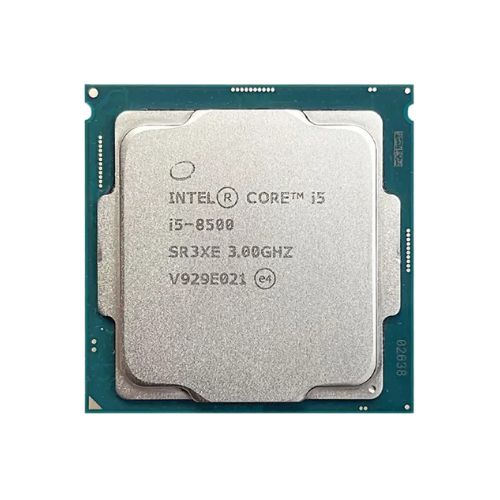

Intel Core i5 8500 8th Gen Tray Processor
The
Intel Core i5 8500 is a reliable 8th Generation Coffee Lake desktop processor built on Intel's refined 14nm process technology. Designed for everyday computing, office productivity, business workflows, and entry-level to mid-level gaming, this six-core processor delivers stable and consistent performance for home and professional users. As a Tray version, the
Intel Core i5 8500 is supplied as a bare CPU only — no fan or cooler is included — making it an excellent budget-friendly option for builders who already have a compatible LGA 1151 cooling solution and want solid six-core performance at a reduced price point. With built-in Intel UHD Graphics 630, it allows users to run a complete system without immediately requiring a dedicated graphics card. Available in Bangladesh from
Softlink Computer BD.
Performance and Architecture
Core and Thread Configuration
The
Intel Core i5 8500 features six physical CPU cores and six threads operating at a stable base clock of 3.0 GHz, dynamically accelerating up to a maximum turbo frequency of 4.1 GHz via Intel Turbo Boost Technology 2.0. Note that the
Intel Core i5 8500 does not support Intel Hyper-Threading Technology, meaning each physical core handles one thread at a time for a total of six threads. With 9 MB of Intel Smart Cache, a bus speed of 8 GT/s, and a Thermal Design Power (TDP) of 65W, the
Intel Core i5 8500 strikes an ideal balance between power efficiency and consistent multi-core processing performance suited to all everyday computing workloads.
Intel Turbo Boost Technology 2.0
The
Intel Core i5 8500 dynamically adjusts its clock speed up to 4.1 GHz during demanding workloads via Intel Turbo Boost Technology 2.0, then scales back during lighter tasks to conserve power and reduce heat. This keeps the system snappy and responsive throughout the day across all usage scenarios from light office tasks to more intensive applications and light gaming workloads.
Connectivity and Expansion
PCIe 3.0 Support
The
Intel Core i5 8500 supports PCI Express 3.0 with a maximum of 16 PCIe lanes, configurable as 1×16, 2×8, or 1×8+2×4. This provides high-bandwidth connectivity for dedicated graphics cards, NVMe solid-state drives, and other high-speed expansion devices compatible with PCIe 3.0.
Memory Support
The
Intel Core i5 8500 supports dual-channel DDR4-2666 memory across two memory channels with a maximum system memory capacity of 128 GB and a maximum memory bandwidth of 41.6 GB/s. ECC memory is not supported. This provides a flexible and capable memory configuration for a wide range of budget and performance-oriented desktop build configurations.
Integrated Graphics
The
Intel Core i5 8500 includes Intel UHD Graphics 630 with a base frequency of 350 MHz and a maximum dynamic frequency of 1.10 GHz, supporting up to 64 GB of shared video memory. It supports up to three simultaneous displays with a maximum resolution of 4096×2304 at 60Hz via DisplayPort, and 4096×2304 at 24Hz via HDMI, with 4K support at 60Hz, DirectX 12, OpenGL 4.5, Intel Quick Sync Video, Intel InTru 3D Technology, and Intel Clear Video HD Technology. This makes it well suited for multi-monitor office setups and everyday media use without a dedicated graphics card.
Supported Technologies
The
Intel Core i5 8500 supports a comprehensive set of Intel platform technologies including Intel Turbo Boost Technology 2.0, Intel Virtualization Technology (VT-x with Extended Page Tables), Intel Virtualization Technology for Directed I/O (VT-d), Enhanced Intel SpeedStep Technology, Intel Optane Memory Support, Intel Identity Protection Technology, Intel Transactional Synchronization Extensions, Intel AES New Instructions, Intel Software Guard Extensions (SGX), Intel Memory Protection Extensions (MPX), Intel OS Guard, Intel Trusted Execution Technology, Intel Boot Guard, Intel Stable IT Platform Program (SIPP), Execute Disable Bit, and Intel 64-bit architecture with SSE4.1, SSE4.2, and AVX2 instruction set extensions.
Motherboard Compatibility
The
Intel Core i5 8500 uses the LGA 1151 (FCLGA1151) socket and is compatible with Intel 300 series chipset motherboards including H310, B360, H370, Q370, and Z370 chipsets. It also supports select Intel 100 and 200 series motherboards with an updated BIOS where applicable. It supports DDR4-2666 memory up to 128 GB across two memory channels, with a maximum junction temperature of 100°C and a compact package size of 37.5 mm × 37.5 mm. As a Tray processor, no thermal solution is included — a compatible third-party LGA 1151 cooler is required before installing and operating this processor.
Recommended Use Cases
The
Intel Core i5 8500 is well suited for budget-friendly and mid-range custom desktop builds requiring reliable and stable six-core performance. It handles office and business workstation tasks including documents, spreadsheets, email, and video calls efficiently and consistently. For students and home users, it manages web browsing, HD media consumption, online classes, and general productivity with ease. When paired with a discrete GPU, it delivers smooth performance for mid-level gaming and light content creation. As a Tray processor sold as a bare CPU unit, it is particularly well suited for system builders, integrators, and users who want maximum value from a proven Coffee Lake platform with their own existing LGA 1151 cooling solution.
Buy Intel Core i5 8500 8th Gen Tray Processor in Bangladesh
The
Intel Core i5 8500 8th Gen Coffee Lake Tray Processor is available in Bangladesh from
Softlink Computer BD, one of the country's trusted computer hardware retailers. Browse the full range of
Intel Processors or explore complete
Desktop PC solutions. Orders can be placed online or in person at the nearest
Softlink Computer BD showroom.
Please Note: This is a Tray version CPU supplied without a fan or cooler. The
Intel Core i5 8500 Tray Processor comes with a
1-Week Test Warranty only. No fan or cooler is included with this product.
