Name: Esonic H81DA DDR-3 Micro-ATX Motherboard - Softlink Computers
Brand: Esonic
Price: 2800 BDT
Availability: InStock

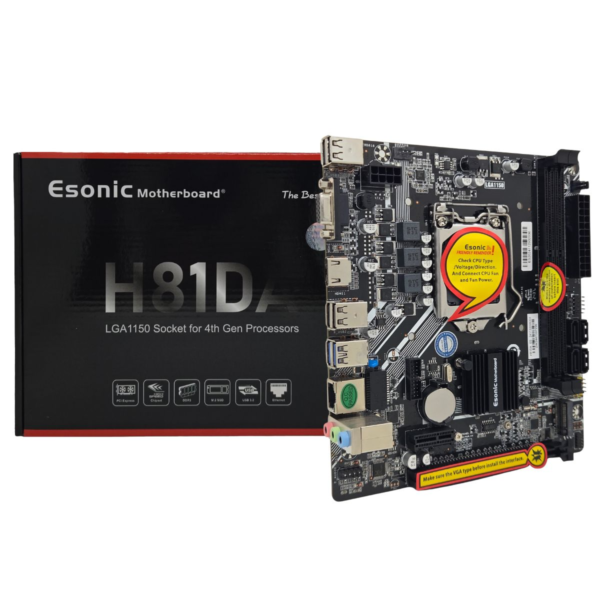

Esonic H81DA DDR-3 Micro-ATX Motherboard

Sale Price2,800৳

Regular Price3,200৳

StatusIn Stock

BrandEsonic

Key Features

Model: Esonic H81DA1
Intel Socket LGA1150 for 4th Gen Core i7/ i5/i3 Processors
Memory Support DDR-3 1333/1600MHz
Storage- 4X SATA3.0 6Gb/s
M.2, PCIE-X16, PCIE-X1, SATA 3.0, USB 3.0
Warranty: 01-Year

View More Info

2,800৳

Specification

Basic Information

Supported CPU	Support Intel® Socket 1150 for 4th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H81 Chipset
Form Factor	Micro-ATX ( 19 cm X 17 cm) 4 mounting holes
Audio	Support Realtek® ALC662 High Definition Audio Optional Realtek® ALC897 High Definition Audio

Expansion Slots

PCI	1 x PCIe x16 3.0/2.0 slot 1 x PCIe x1 2.0 slot
M.2 & NVMe Socket	1 x M.2 Nvne Socket

Memory

Type	DDR3
Slots	2x DDR3 1066/1333/1600 MHz DIMM
Supported Memory	Supports DDR3 1066/1333/1600 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	Support 16GB Max.

Graphics

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI / VGA ports

Connector & Ports

HDMI	1x HDMI 2.1
VGA (s)	1x VGA port
USB (s)	4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)
LAN Port (s)	Support Realtek®RTL8106E 100M Optional Realtek®RT8111F 1000M
Supported Storage	1 x M.2 Nvne Socket, Supports 2242 SSD 4 x SATA 6Gb/s Ports
Audio	Realtek Chip, ALC 6-channel audio
Internal I/O Ports	Internal I/O Ports 1 x USB 3.0 connector（19pin)， supports 2USB 3.0 ports 1 x USB 2.0 connector， supports 2USB 2.0 ports 4 x SATA 6Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x DEBUG connector 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector Back Panel I/O Ports 1 x VGA Port 1 x HD Port 1 x LAN (RJ45) Port 2 x USB 3.0 Ports(Blue) 4 x USB 2.0 Ports 3 x flexible audio jacks On-Board Pinheaders / Connectors 1 * USB 2.0 pinheader 1 * USB 3.0 pinheader 1 * DEBUG pinheader 1 * AUTO_PWR pinheader 1 * Front Panel 1 * Front Panel Audio

Others

Special Features

2x EZ Debug LED

Warranty Information

Manufacturing Warranty

01-Year

Description

Esonic H81DA DDR3 Micro-ATX Motherboard

The Esonic H81DA DDR3 Micro-ATX Motherboard is a reliable and budget-friendly solution designed for users who want to build or upgrade a stable Intel-based desktop PC at an affordable cost. Built on the dependable Intel H81 chipset, this motherboard supports Intel 4th Generation Core i7, Core i5, Core i3, Pentium, and Celeron processors, making it an excellent choice for basic office systems, home PCs, and entry-level computing setups. It is widely used in refurbished and budget builds due to its proven stability and cost-effective platform.

Memory Performance

The motherboard supports DDR3 dual-channel RAM up to 16GB at speeds of 1333MHz and 1600MHz, providing sufficient and consistent performance for everyday tasks such as web browsing, document editing, media playback, video conferencing, and light multitasking. While it utilizes older DDR3 memory technology, it continues to deliver stable and reliable performance for users who do not require high-end computing power, making it an ideal fit for budget-conscious builds.

Display and Graphics

The Esonic H81DA features onboard Intel HD Graphics support (depending on the installed CPU), allowing smooth basic visual output without the need for a dedicated graphics card. It includes both VGA and HDMI output ports, ensuring full compatibility with modern and legacy monitors alike. This makes the board particularly suitable for office workstations, educational institutions, and general home computing environments where dual-display or standard single-monitor setups are required.

Expansion and Upgrade Flexibility

For users who need more graphical power, the motherboard includes a PCIe x16 slot, allowing easy installation of a dedicated graphics card for improved gaming or professional workloads. Multiple SATA ports provide flexible storage expansion, supporting both traditional HDDs and modern SSDs for a versatile storage setup. Select board variants may also feature an M.2 slot for NVMe storage, enabling faster boot times and improved overall system responsiveness.

Connectivity

The Esonic H81DA covers all essential connectivity needs with onboard Gigabit LAN for a stable and fast wired internet connection, USB 2.0 and USB 3.0 ports for connecting peripherals, and standard audio jacks for everyday multimedia use. All required I/O is available out of the box without the need for additional expansion cards, ensuring a clean and straightforward build experience.

Compact and Easy to Build

With its Micro-ATX form factor, the Esonic H81DA is compatible with a wide range of standard and compact desktop PC cases, offering great flexibility in build configurations. Its simple and clean board layout makes installation straightforward, even for first-time PC builders or technicians working on volume refurbishment projects.

Buy Esonic H81DA DDR3 Micro-ATX Motherboard from Softlink Computers

Purchase the Esonic H81DA DDR3 Micro-ATX Motherboard from Softlink Computers and receive a 100% genuine product backed by SC Official Warranty and trusted after-sales support. Softlink Computers offers competitive market pricing, reliable stock availability, and a smooth, secure buying experience — whether you are assembling a new PC from scratch or upgrading an existing system on a budget.

Our team is committed to helping you get the right hardware at the right price. With years of experience serving individual customers, businesses, and institutions across Bangladesh, Softlink Computers is your trusted source for genuine PC components and reliable technical support. The Esonic H81DA delivers the perfect balance of affordability, stability, and compatibility — making it a smart, long-term investment for anyone building a dependable Intel 4th Gen system.
