Name: ASUS PRIME H610M-CS DDR5 Micro-ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 11300 BDT
Availability: InStock

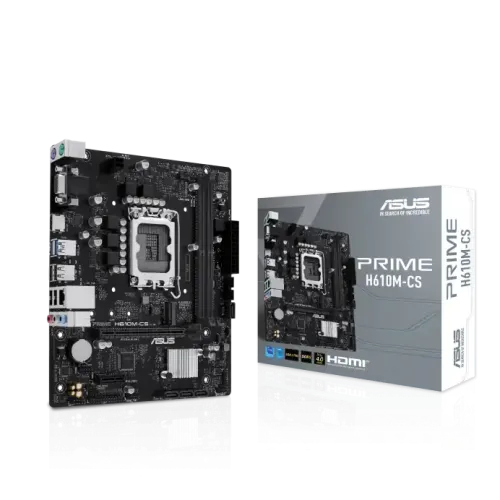

ASUS PRIME H610M-CS DDR5 Micro-ATX Motherboard

Sale Price11,300৳

Regular Price12,300৳

StatusIn Stock

BrandASUS

Key Features

Model: PRIME H610M-CS
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 96GB, DDR5
Graphics Output: 1 x VGA, 1 x HDMI
Features: 1 x Realtek 1Gb Ethernet
Warranty: 03-Years

View More Info

11,300৳

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
M.2 & NVMe Socket	1 x M.2 slot

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 96GB

Graphics

Supports 4K@60Hz as specified in HDMITM 2.1.

Connector & Ports

HDMI	1 x HDMI port
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Audio	3x Audio jacks
Internal I/O Ports	Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
TPM	1 x SPI TPM header (14-1 pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS PRIME H610M-CS DDR5 Micro-ATX Motherboard

The ASUS PRIME H610M-CS DDR5 Micro-ATX Motherboard is a reliable and business-oriented motherboard designed for Intel’s LGA 1700 platform, offering stable performance, DDR5 memory support, and essential modern connectivity for office systems, home PCs, and entry-level gaming builds. Powered by the Intel H610 chipset, it supports Intel 12th, 13th, and 14th Generation Core processors, including Pentium Gold and Celeron CPUs, making it a practical and future-ready solution for modern desktop systems.

This motherboard features dual-channel DDR5 memory support with 2 DIMM slots, supporting up to 96GB memory capacity and speeds up to 5600MHz depending on processor compatibility. DDR5 technology delivers improved bandwidth, better power efficiency, and enhanced multitasking performance for modern applications and daily computing workloads.

For graphics and expansion, the motherboard includes a PCIe 4.0 x16 SafeSlot Core for graphics cards and an additional PCIe 3.0 x1 slot for expansion devices. This setup provides stable GPU support and allows flexibility for future hardware upgrades.

Storage performance is efficient with 1 x M.2 PCIe 3.0 x4 slot and 4 x SATA 6Gb/s ports, enabling support for high-speed NVMe SSDs alongside traditional HDDs or SATA SSDs. This combination ensures faster boot times, quick application loading, and smooth overall system responsiveness.

Connectivity features include Realtek 1Gb Ethernet, providing stable and reliable wired networking for office applications, streaming, browsing, and online communication. The motherboard also offers USB 3.2 Gen 1 ports and additional internal USB headers for modern peripherals and accessories.

For display connectivity, the motherboard includes both HDMI and VGA outputs, supporting modern and legacy display devices when paired with Intel processors featuring integrated graphics. The HDMI port supports resolutions up to 4K@60Hz, making it suitable for multimedia and office environments.

ASUS has designed this motherboard with durability and stability in mind by incorporating 5X Protection III technology, including DIGI+ VRM, SafeSlot Core, LANGuard protection, stainless-steel back I/O, and overvoltage protection. Additional features such as Q-DIMM, Q-Slot, Q-LED Core, and ASUS UEFI BIOS simplify installation, troubleshooting, and overall system management.

The motherboard also includes enterprise-focused connectivity options such as COM header, LPT header, and TPM header, making it especially suitable for office deployments, POS systems, and commercial desktop environments requiring legacy support and enhanced security features.

Overall, the ASUS PRIME H610M-CS DDR5 Micro-ATX Motherboard is a dependable and cost-effective motherboard that combines DDR5 performance, PCIe 4.0 support, essential connectivity, and ASUS reliability in a compact Micro-ATX form factor. It is an excellent choice for office systems, home computing, and budget-friendly Intel desktop builds.
