Name: ASUS PRIME B650M-F AM5 Micro-ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 13900 BDT
Availability: InStock

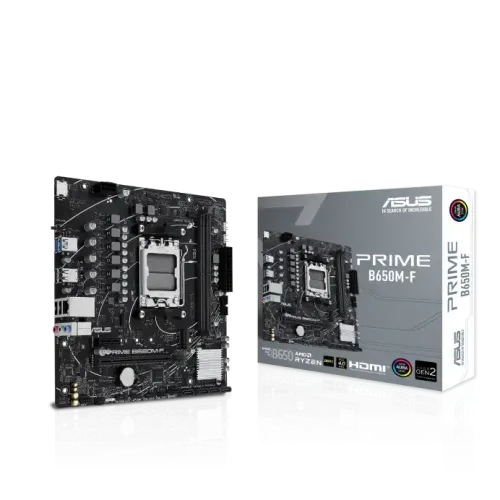

ASUS PRIME B650M-F AM5 Micro-ATX Motherboard

Sale Price13,900৳

Regular Price15,200৳

StatusIn Stock

BrandASUS

Key Features

Model: PRIME B650M-F
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
Graphics Output: 1x HDMI
Features: 1 x Realtek 1Gb Ethernet
Warranty: 03-Years

View More Info

13,900৳

Specification

Basic Information

Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 8.9 inch x 8.6 inch (22.6 cm x 21.8 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x1 slot

Memory

Type	DDR5
Slots	2 x DIMM slots
Supported Memory	7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO)
Maximum Memory	Max. 96GB

Graphics

Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI	1x HDMI
USB (s)	Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet
Supported Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
TPM	1 x SPI TPM header (14-1pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS PRIME B650M-F AM5 Micro-ATX Motherboard

The ASUS PRIME B650M-F AM5 Micro-ATX Motherboard is a modern and reliable motherboard designed for AMD’s AM5 platform, offering DDR5 memory support, PCIe 4.0 connectivity, and essential features for gaming, productivity, and everyday computing. Built on the AMD B650 chipset, it supports AMD Ryzen 7000, 8000, and 9000 Series desktop processors, making it a future-ready solution for users building a high-performance AMD system.

This motherboard features dual-channel DDR5 memory support with 2 DIMM slots, supporting up to 96GB memory capacity and speeds up to 7200+ MHz (OC depending on CPU and memory configuration). DDR5 technology delivers significantly improved bandwidth, better power efficiency, and smoother multitasking performance for modern workloads and gaming applications.

For graphics and expansion, the motherboard includes a PCIe 4.0 x16 SafeSlot Core for modern graphics cards along with an additional PCIe 4.0 x1 slot for expansion devices. This ensures stable GPU performance and flexible upgrade options for gaming and professional systems.

Storage performance is fast and efficient with 1 x PCIe 4.0 x4 M.2 slot and 4 x SATA 6Gb/s ports, allowing users to install high-speed NVMe SSDs alongside traditional storage drives. This setup provides faster boot times, quicker application loading, and improved overall system responsiveness.

Connectivity features include Realtek 1Gb Ethernet, delivering stable and reliable wired networking for gaming, streaming, office work, and everyday internet usage. The motherboard also includes USB 5Gbps ports and internal headers for modern peripheral connectivity.

For display connectivity, the motherboard includes an HDMI 2.1 port with support for up to 4K@60Hz resolution, making it suitable for modern display setups when paired with Ryzen processors that feature integrated graphics.

ASUS has designed this motherboard with durability and cooling in mind, featuring PCH heatsinks, hybrid fan headers, Fan Xpert 2+ cooling controls, and ASUS 5X Protection III technology. Additional features such as BIOS FlashBack, Aura Sync RGB support, and Two-Way AI Noise Cancelation improve usability, customization, and communication quality during gaming or online meetings.

The motherboard also includes ASUS Q-Design features like Q-DIMM, Q-Slot, and Q-LED Core, simplifying installation and troubleshooting for both beginners and experienced PC builders.

Overall, the ASUS PRIME B650M-F AM5 Micro-ATX Motherboard is a dependable and future-ready AM5 motherboard that combines DDR5 performance, PCIe 4.0 support, stable networking, and essential modern features in a compact Micro-ATX form factor. It is an excellent choice for users building a balanced AMD Ryzen gaming or productivity system.

Buy ASUS PRIME B650M-F AM5 Micro-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original ASUS PRIME B650M-F AM5 Micro-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest ASUS motherboards suitable for gaming, office, content creation, and professional desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The ASUS PRIME B650M-F AM5 Micro-ATX Motherboard comes with an official warranty, providing dependable after-sales service and long-term peace of mind.
