Name: Asus PRIME A520M-R AM4 Micro ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 8600 BDT
Availability: InStock

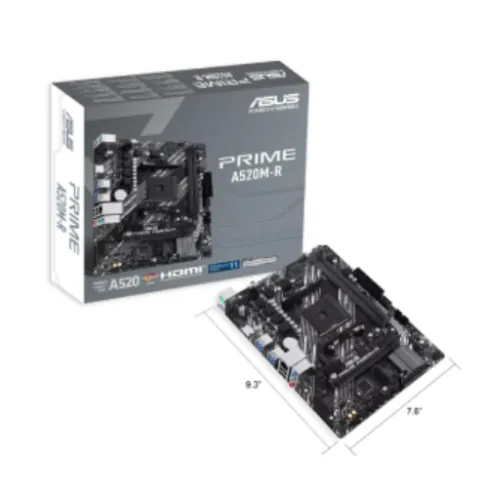

Asus PRIME A520M-R AM4 Micro ATX Motherboard

Sale Price8,600৳

Regular Price9,100৳

StatusIn Stock

BrandASUS

Key Features

Model: PRIME A520M-R
CPU: AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series
Supported RAM: 2 x DIMM ,Max 64GB, Up to 5100(OC)
Output: 1 x HDMI
Features: 1 x M.2, 4 x SATA 6Gb/s ports
Warranty: 03-Years

View More Info

8,600৳

Specification

Basic Information

Supported CPU	AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset	AMD A520
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot
M.2 & NVMe Socket	Supports 1 x M.2

Memory

Type	DDR4
Slots	2 x DIMM
Supported Memory	DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU
Maximum Memory	64GB

Graphics

1 x HDMI port**
* Graphics specifications may vary between CPU types

Connector & Ports

HDMI	1 x HDMI
USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet ASUS LANGuard
Supported Storage	1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel heade
TPM	1 x SPI TPM header (14-1pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

ASUS PRIME A520M-R AM4 Micro-ATX Motherboard

The ASUS PRIME A520M-R AM4 Micro-ATX Motherboard is a reliable and budget-friendly motherboard designed for AMD’s AM4 platform, offering stable performance and essential features for everyday computing and entry-level PC builds. Powered by the AMD A520 chipset, it supports AMD Ryzen 3000, 4000 G-Series, and 5000 series processors, making it a practical choice for home users, office environments, and light gaming setups.

This motherboard features dual-channel DDR4 memory support with 2 DIMM slots, allowing up to 64GB capacity with speeds up to 4600 MHz (OC depending on CPU and RAM). The DDR4 architecture ensures efficient multitasking, stable system operation, and improved responsiveness for daily workloads.

For expansion, the board includes a PCIe 3.0 x16 slot for graphics cards, along with an additional PCIe slot for expansion devices. This provides flexibility for users who want to upgrade their system with a dedicated GPU or additional hardware components.

Storage options include M.2 PCIe 3.0 x4 support for high-speed NVMe SSDs and multiple SATA ports for HDDs or SATA SSDs. This combination ensures faster boot times, quick data access, and a balanced storage solution for both performance and capacity needs.

Connectivity features include Gigabit LAN, delivering stable and consistent wired network performance for browsing, streaming, and office work. The motherboard also offers multiple USB ports for connecting peripherals and external devices.

For display output, the motherboard includes HDMI and D-Sub (VGA) ports, supporting both modern and legacy displays when paired with Ryzen processors that include integrated graphics. This makes it suitable for office and multimedia setups.

ASUS has incorporated 5X Protection III technology, including overvoltage protection, high-quality components, and optimized power delivery, ensuring long-term durability and system stability. The board also features ASUS UEFI BIOS, providing an intuitive interface for easy system configuration and management.

Overall, the ASUS PRIME A520M-R AM4 Micro-ATX Motherboard is a dependable and cost-effective solution for users seeking a stable AMD platform with essential features. It is ideal for budget builds, office PCs, and entry-level gaming systems with good upgrade flexibility.
