Name: ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard - Softlink Computers
Brand: ASUS
Price: 19500 BDT
Availability: InStock

ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard

Sale Price19,500৳

Regular Price21,400৳

StatusIn Stock

BrandASUS

Key Features

Model: B760M-AYW WIFI
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 2 x DIMM, Max. 96GB, DDR5
Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
Features: Realtek 2.5Gb Ethernet, Wi-Fi 6
Warranty: 03-Years

View More Info

19,500৳

Specification

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	Intel Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 96GB

Graphics

Supports 4K@60Hz as specified in HDMITM 2.1.

Connector & Ports

HDMI	1 x HDMI
USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM	1 x SPI TPM header (14-1pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core + - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty

03-Years

Description

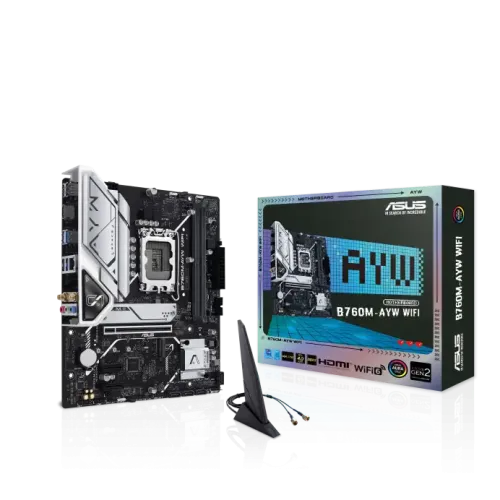

ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard

The ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard is a reliable and modern Intel platform motherboard designed to deliver stable performance, efficient cooling, and essential connectivity for everyday computing and entry-to-mid level gaming systems. Built on the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors on the LGA 1700 socket, making it a future-ready option for users building a new PC or upgrading an existing system.

This motherboard features dual-channel DDR5 memory support with 2 DIMM slots, supporting up to 96GB capacity and speeds up to 8000 MHz (OC depending on configuration). DDR5 technology ensures higher bandwidth and improved efficiency, resulting in faster multitasking, smoother performance, and better responsiveness for modern applications.

For graphics and expansion, the board includes a PCIe 4.0 x16 slot for modern GPUs along with additional PCIe slots for expansion devices. This provides a stable and flexible platform for gaming builds, office systems, and general-purpose desktops.

Storage capabilities are solid, featuring dual M.2 PCIe 4.0 x4 slots for high-speed NVMe SSDs along with multiple SATA ports for additional storage drives. This allows fast boot times, quick application loading, and efficient data transfer performance.

Connectivity is a strong highlight, offering 2.5G LAN and built-in WiFi 6, ensuring fast and stable wired and wireless networking. This makes it ideal for online gaming, streaming, and everyday internet usage without requiring additional adapters.

For display output, the motherboard includes HDMI, allowing high-resolution display support when paired with processors that feature integrated graphics. It is suitable for office work, multimedia setups, and dual-purpose systems.

ASUS has focused on durability and thermal performance by incorporating VRM heatsinks, M.2 heatsinks, PCH cooling, and Fan Xpert control, ensuring stable operation and efficient heat management under load. Additionally, Aura Sync RGB support allows users to customize lighting for a more visually appealing build.

Overall, the ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard is a balanced and dependable choice for users who want DDR5 performance, reliable connectivity, and essential features in a compact form factor. It is particularly suitable for budget-conscious gaming builds, office PCs, and general desktop use with modern hardware support.

Buy ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard from Softlink Computers

In Bangladesh, you can get the original ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard from Softlink Computers. We offer a wide collection of the latest ASUS motherboards suitable for gaming, professional, and general desktop PC builds. You can order online for fast and secure delivery or visit your nearest Softlink Computers store to purchase directly at a competitive price.

Softlink Computers ensures 100% genuine products, reliable customer support, and a smooth purchasing experience. The ASUS B760M-AYW WIFI DDR5 Micro-ATX Motherboard comes with an official 3 years warranty, providing long-term peace of mind and dependable after-sales service.
