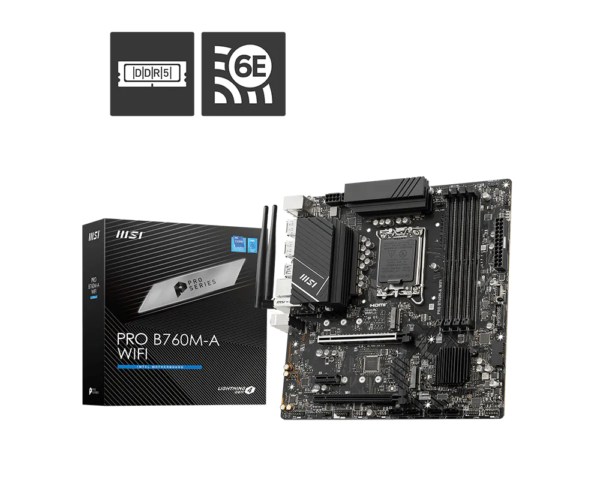

MSI PRO B760M-A WiFi DDR5 Micro-ATX Motherboard

Sale Price19,200৳

Regular Price20,200৳

StatusIn Stock

BrandMSI

Key Features

Model: PRO B760M-A WIFI
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 6800+MHz (OC)
Graphics Output: 2x HDMI, 2x DisplayPort
Features: 2x M.2 slot, Intel Wi-Fi 6E
Warranty: 03-Years

View More Info

19,200৳

Specification

Basic Information

Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio

Expansion Slots

PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 & NVMe Socket	1x M.2 slot

Memory

Type	DDR5
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB

Graphics

2x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5G LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	3x Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED

Warranty Information

Manufacturing Warranty

03-Years

Description

MSI PRO B760M-A WiFi DDR5 Micro-ATX Motherboard

The MSI PRO B760M-A WiFi DDR5 Micro-ATX Motherboard is a premium mid-range Intel LGA 1700 motherboard designed for users who want strong performance, modern connectivity, and long-term upgrade flexibility. Built on the Intel B760 chipset, it supports 12th, 13th, and 14th Generation Intel Core processors, making it an excellent choice for gaming PCs, productivity systems, and professional workloads.

This motherboard features DDR5 memory support with four DIMM slots, allowing high-capacity upgrades and speeds up to 6800+ MHz (OC depending on CPU and RAM). This provides significantly improved bandwidth, faster system responsiveness, and better multitasking performance compared to DDR4 platforms.

For expansion, it includes a PCIe 4.0 x16 Steel Armor slot for graphics cards, ensuring stable support for modern GPUs even under heavy loads. It also includes additional PCIe slots for expansion cards, making it flexible for future upgrades and professional setups.

Storage performance is strong with Lightning Gen4 M.2 NVMe support, enabling ultra-fast SSD speeds for quicker boot times, faster game loading, and improved overall system responsiveness. SATA ports are also available for additional storage expansion.

A major highlight of this motherboard is its advanced connectivity, featuring 2.5G LAN and Wi-Fi 6E with Bluetooth 5.3, ensuring ultra-fast wired and wireless networking. This makes it ideal for online gaming, streaming, and high-speed data transfer environments.

Display output options include HDMI and DisplayPort, supporting up to 4K resolution depending on CPU integrated graphics, making it suitable for multi-monitor office or creative setups.

MSI also includes strong stability features such as 12+1 Duet Rail power design, Core Boost technology, extended heatsinks, and high-quality thermal pads, ensuring stable CPU performance and efficient heat management during heavy workloads.

Overall, the MSI PRO B760M-A WiFi DDR5 Micro-ATX Motherboard is a highly balanced and future-ready motherboard offering strong performance, excellent connectivity, DDR5 support, and stable power delivery. It is ideal for users building a reliable Intel-based system for gaming, office work, or professional use with long-term upgrade potential.
