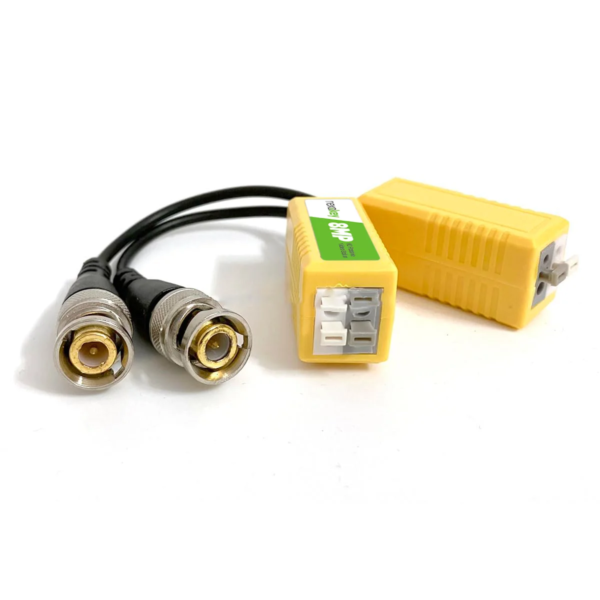

Nexakey NX-VB08 8MP 4K Passive HD Video Balun
Key Features
- Maximum Resolution: Up to 8MP (4K) Ultra HD.
- Video Formats: HD-CVI / HD-TVI / AHD / Analog CCTV.
- Transmission Distance: Up to 400m (1080p) / Up to 200m (8MP).
- Signal Stability: Built-in TVS Surge Protection & Anti-Interference.
- Installation Type: Tool-less Push-Terminal Plug-and-Play Design.
- Cable Compatibility: CAT5 / CAT5e / CAT6 UTP Cable.
200৳
Price may change anytime due to market conditions. Limited stock available. Kindly reconfirm price and stock before placing your order.
Specification
General Information
| Brand | Nexakey |
| Model | NX-VB08 |
| Connector Type | Video Balun |
| Packaging Unit | 1 Pair (2 Pieces) |
Technical & Transmission Specs
| Connector Compatibility | BNC Male to Push-Terminal (Tool-less) |
| Cable Type | Cat5e / Cat6 UTP Cable |
| Max Encoding Resolution | 8MP (4K) |
| Supported Formats | AHD, HDCVI, HDTVI, CVBS (Analog) |
| Transmission Distance | 720P / 1080P: Up to 400 Meters 3MP / 4MP / 5MP: Up to 250 Meters 8MP (4K): Up to 200 Meters |
Electrical & Protection
| Power Required | No (Passive - No Power Needed) |
| Impedance | 75 ohms, UTP Cable: 100 ohms |
| Surge Protection | Built-in TVS (Transient Voltage Suppressor) |
| Crosstalk & Noise Immunity | > 60 dB |
Physical & Environmental
| FrameMaterial | ABS Engineering Plastic |
| Color | Black |
| Operating Temperature | -10°C to +70°C |
Description
